Overview

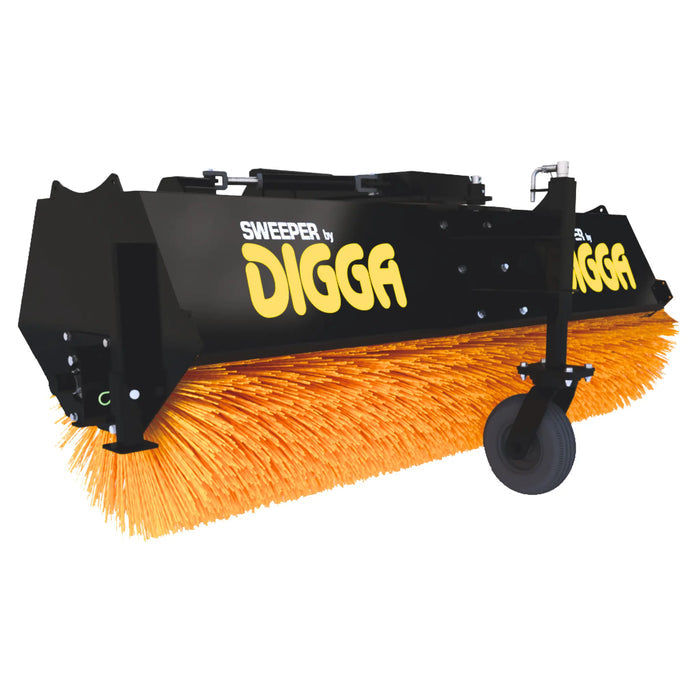

This Digga skid steer broom attachment is a manual-pivot angle broom built for industrial, municipal and construction sweeping, available in 72", 84" and 96" widths with manual 30 ° right and left angling. Three choices shape your order: the broom width, the brush type — all-poly wafers for general sweeping or poly/wire for scarifying compacted material — and whether you add a jockey wheel, a water tank, or both. All three widths run on 8–20 GPM and share the same 77" depth and 47" height, with weight climbing from 1,063 lbs on the 72" to 1,182 lbs on the 96". A floating design follows undulating ground, the quick attach mount fits standard skid steer plates, and brush wafers change out individually as they wear rather than replacing the core.
Key Features of This Skid Steer Broom Attachment
- Three widths — 72", 84" and 96", angling 30 ° right and left by manual pivot
- Effective swept width narrows as you angle — 62.35" to 92.73" at 30 ° depending on model
- Poly or poly/wire brush wafers — wire-blended wafers scarify packed material a poly brush rides over
- Quick-change core and brush wafers — replace worn wafers individually, not the whole core
- Floating design — follows undulating ground for consistent contact and finish
- Eaton motor, running 8–20 GPM at a maximum 2,250 PSI
- Optional front caster (jockey) wheel — holds sweep height on uneven surfaces
- Optional dust control water kit — suppresses airborne dust in enclosed and occupied areas
- Fold-away stands and quick attach mount — attaches and detaches without help
- Durable powdercoated finish, U.S.A. designed and manufactured
Why This Broom Earns Its Place
- Angling right and left turns one pass into a windrow instead of a spread — sweeping straight ahead pushes debris forward; 30 ° of angle throws it to one side so a single pass clears the lane.
- Poly/wire wafers do work a poly brush cannot — blended wire cuts into packed dirt and dried slurry that an all-poly brush polishes over, which matters on construction cleanup rather than general yard sweeping.
- The water kit is what makes indoor sweeping viable — in warehouses, machine sheds and parking structures, dry sweeping moves dust rather than collecting it. Digga rates this broom for exactly those environments.
- Wafer-by-wafer replacement holds down running cost — wear concentrates where the brush meets the surface, so replacing a handful of wafers restores sweep height instead of a full core.
- Floating mount protects both broom and surface — a rigidly held broom either scrubs bristles off on high spots or lifts clear in hollows.
Digga Angle Broom Specifications by Width
| Specification | 72" | 84" | 96" |
|---|---|---|---|
| Broom width — angled at 15 ° | 69.55" | 81.14" | 92.73" |
| Broom width — angled at 30 ° | 62.35" | 72.75" | 83.14" |
| Overall width (A) | 82" | 94" | 106" |
| Depth (B) | 77" | 77" | 77" |
| Height (C) | 47" | 47" | 47" |
| Weight | 1,063 lbs | 1,115 lbs | 1,182 lbs |
| Max flow — do not exceed | 20 GPM | 20 GPM | 20 GPM |
| Max pressure — do not exceed | 2,250 PSI | 2,250 PSI | 2,250 PSI |
| Brush wafers required | 36 | 42 | 48 |
Replacement wafers are 32" x 10" convoluted, available in poly or poly/wire to match the configuration you ordered.
Choosing Your Broom Width, Brush and Add-Ons
| Option | Choice | Selected when |
|---|---|---|
| Brush Type | Poly Brush | General sweeping — loose dirt, gravel, leaves, light snow and yard maintenance |
| Brush Type | Poly Wire Brush | Construction cleanup — packed dirt, dried mud and material a poly brush rides over |
| Broom Width | 72" | Tighter sites and smaller carriers — lightest at 1,063 lbs |
| Broom Width | 84" | The general-purpose middle width at 1,115 lbs |
| Broom Width | 96" | Largest coverage per pass at 1,182 lbs — check your machine’s rated capacity |
| Add-On | None | Broom, hoses and quick disconnects only |
| Add-On | Add Jockey Wheel | Front caster wheel holding consistent sweep height on uneven ground |
| Add-On | Add Water Tank | Dust control kit for enclosed, occupied or dust-sensitive areas |
| Add-On | Add Jockey Wheel and Water Tank | Both — the full configuration for sustained indoor or municipal work |
What Is Included with the Angle Broom?
The package includes the angle broom, hoses and flush-face quick disconnects. The pivot is set manually — for in-cab hydraulic angling, Digga offers a separate hydraulic pivot version of this broom. Side shift frames are sold separately. Replacement 32" x 10" convoluted brush wafers are available in poly and poly/wire.
Which Machines Fit the Digga Angle Broom?
Compatible with skid steer loaders and compact track loaders equipped with a Universal Quick Attach (SSQA) system, including:
Bobcat
Caterpillar
John Deere
Case
New Holland
Takeuchi
Kubota
Gehl
Compatibility is determined by mount type, not brand — confirm your machine’s quick attach configuration before you order. Your carrier must supply an auxiliary hydraulic circuit of 8–20 GPM and must not exceed 2,250 PSI or 20 GPM. Check your machine’s rated operating capacity against the broom weight for your chosen width — 1,063 lbs at 72" through 1,182 lbs at 96".
Digga Angle Broom Questions, Answered
Poly or poly/wire brush — which should I choose?
Choose the poly brush for general sweeping: loose dirt, gravel, leaves and light snow. Choose the poly wire brush when you are cleaning up after construction, where dried mud and packed material need scarifying — the blended wire bristles cut into material an all-poly brush rides over. Poly is gentler on finished surfaces.
Which broom width fits my machine?
All three widths run the same hydraulics, so the decision is coverage against weight and site access. The 72" is 1,063 lbs and suits tighter sites and smaller carriers; the 84" is 1,115 lbs; the 96" is 1,182 lbs and covers the most ground per pass. Check the figure against your machine’s rated operating capacity.
How much does angling reduce the swept width?
More than most operators expect. At 30 ° the 72" sweeps 62.35", the 84" sweeps 72.75" and the 96" sweeps 83.14". At 15 ° the figures are 69.55", 81.14" and 92.73". Plan pass overlap from the angled figure, not the nominal width.
What hydraulic flow does the Digga angle broom need?
An auxiliary circuit supplying 8–20 GPM. Do not exceed 20 GPM or 2,250 PSI — the same limits apply to all three widths.
What does the jockey wheel do?
The front caster wheel carries the leading edge of the broom so it holds a consistent sweep height across uneven ground, rather than the operator managing height on the loader arms. It reduces uneven bristle wear.
Do I need the water tank?
Add it if you sweep enclosed or occupied spaces — warehouses, machine sheds, parking structures — or anywhere airborne dust is a problem. Dry sweeping in those environments moves dust rather than collecting it. Outdoor-only work on damp ground generally does not need it.
How many brush wafers does my broom take?
The 72" takes 36 wafers, the 84" takes 42 and the 96" takes 48. Wafers are 32" x 10" convoluted, available in poly or poly/wire, and replace individually as they wear.
Is this the manual or hydraulic pivot model?
This is the manual pivot broom — the angle is set by hand at the attachment. Digga also builds a hydraulic pivot version that angles from the cab, which is worth the difference if you change angle frequently during a shift.
Is a side shift frame included?
No. Side shift frames are sold separately for this broom.
What warranty applies?
Digga covers this attachment for 12 months. Ground-engaging wear items — the brush wafers themselves — are consumables and are not covered.
How is shipping calculated?
Shipping is calculated at checkout — add the item to your cart, enter your delivery address, and the shipping charge is shown before you complete your order. Lift gate service is available for residential deliveries and can be selected at checkout.
How do I order?
Add the item to your cart and check out online — the order page asks for your machine make and model, so there is no need to call ahead. We check the mount against your machine after the order and come back to you if anything needs changing. If you would rather ask first, email support@eskidsteer.com or use the chat button on your screen.
This is the manual-pivot member of the Digga broom range. Contractors searching for a skid steer sweeper attachment, an angle broom skid steer setup, or a general sweeper attachment for site cleanup are usually weighing this against a bucket broom, which collects rather than casts material. Among skid steer attachments a broom earns its keep on municipal and warehouse contracts, where the poly wire brush option and the dust control broom water kit are what make the work possible indoors.
Digga Angle Broom Downloads
