Description
📘 Overview

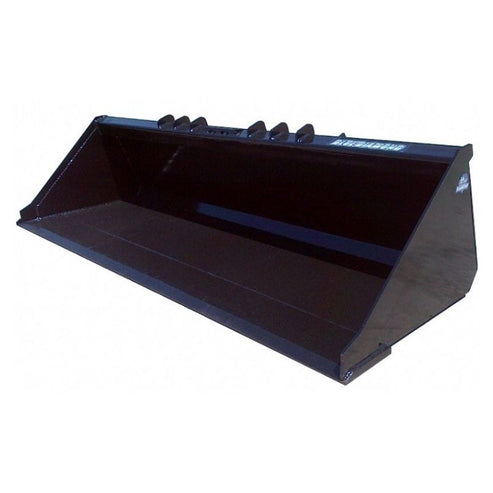

The Blue Diamond Low Profile Severe Duty Bucket is a heavy-built skid steer bucket engineered for the abuse that folds ordinary buckets. It mounts to a heavily gusseted universal quick-attach interface and pairs a 1/2″ floor with a double-layer 1/4″ back, so it holds up to prying, grading, and loading dense, abrasive material day after day. It is a dependable blue diamond severe duty bucket for professional operators.
This listing covers the full severe duty low-profile range, so you can match width and edge type to your work. Choose from 66″, 72″, 78″, and 84″ widths, each available with a smooth edge for clean grading or a tooth edge (1″ × 8″ cutting edge) for digging into hard ground.
As a severe duty skid steer bucket, it's built for operators who need more than a general-purpose bucket. Contractors comparing a low profile severe duty bucket skid steer setup against standard-duty buckets choose the double-layer back and half-inch floor for the jobs that destroy lighter tools. An 84 inch severe duty bucket moves serious volume on high-capacity machines, while the 66″ suits standard loaders.
The low-profile shape — 19″ tall and 29″ deep — keeps the cutting edge in the operator's sightline for precise digging and grading, and a long-bottom option (35″ deep) is available where extra reach into the pile helps.
⚙ Low Profile Severe Duty Bucket Features
- 1/2″ floor for maximum wear resistance
- Double-layer 1/4″ back
- Heavily gusseted quick attach
- Tooth buckets use a 1″ × 8″ cutting edge
- Available in low profile, long bottom, and standard configurations
- Low profile: 19″ tall, 29″ deep
- Long bottom: 19″ tall, 35″ deep
- Smooth or tooth cutting edge
🔑 Why Choose the Blue Diamond Low Profile Severe Duty Bucket
- Double-layer back and 1/2″ floor survive real abuse — the reinforced structure takes prying and rock loads that bend standard-duty buckets, extending service life on demolition and quarry work.
- Heavily gusseted quick attach — the mount is reinforced where buckets usually crack, so the failure point of lighter buckets isn't a worry here.
- Tooth or smooth to match the job — a 1″ × 8″ tooth edge for breaking hard ground, or a smooth edge for clean grading and loose material.
- Low-profile sightline — the 19″-tall profile lets you see the cutting edge for accurate digging around obstacles.
- Widths to 84″ — size the bucket to your machine's capacity, from standard loaders to high-capacity units.
🔄 Skid Steer Bucket Variant Specifications
| Part Number | Configuration | Weight |
|---|---|---|
| 108260 | 66” Low Profile Smooth | 650 lbs |
| 108263 | 66” Low Profile Tooth | 675 lbs |
| 108270 | 72” Low Profile Smooth | 672 lbs |
| 108273 | 72” Low Profile Tooth | 724 lbs |
| 108275 | 78” Low Profile Smooth | 690 lbs |
| 108277 | 78” Low Profile Tooth | 757 lbs |
| 108280 | 84” Low Profile Smooth | 738 lbs |
| 108282 | 84” Low Profile Tooth | 813 lbs |
| 108284 | 72” Low Profile Smooth-Long Bottom | 732 lbs |
| 108285 | 72” Low Profile Tooth-Long Bottom | 774 lbs |
| 108286 | 78” Low Profile Smooth-Long Bottom | 759 lbs |
| 108287 | 78” Low Profile Tooth-Long Bottom | 846 lbs |
| 108290 | 84” Low Profile Smooth-Long Bottom | 853 lbs |
| 108293 | 84” Low Profile Tooth-Long Bottom | 892 lbs |
🚜 Machine Compatibility
Compatible with skid steer loaders and compact track loaders equipped with a Universal Quick Attach system, including:
Bobcat
Caterpillar
John Deere
Case
New Holland
Takeuchi
Kubota
Gehl
Compatibility is determined by mount type, not brand — confirm your machine's quick attach configuration before ordering. Not sure it fits your machine? Contact eskidsteer.com at (866) 757-8337.
❓ Frequently Asked Questions
Q: What makes this a severe duty bucket?
The 1/2″ floor, double-layer 1/4″ back, and heavily gusseted quick attach are what separate it from a standard-duty bucket. These reinforcements target the exact points where ordinary buckets crack and bend under prying and rock loads, so it lasts far longer in demolition, quarry, and heavy site work.
Q: Should I choose the smooth edge or tooth edge?
Choose the tooth edge (1″ × 8″ cutting edge) for digging into hard, compacted, or rocky ground. Choose the smooth edge for grading, backdragging, and handling loose material with a clean finish. Match it to whether you're primarily breaking ground or moving material.
Q: What is the difference between low profile and long bottom?
Both are 19″ tall. The low profile is 29″ deep for a clear sightline and precise work; the long bottom is 35″ deep, reaching further into the pile for higher fill on each pass. Choose long bottom when reach and capacity matter more than sightline.
Q: What width should I get?
Widths run 66″ to 84″. Match to your machine's rated operating capacity — 66″ for standard loaders, 84″ for high-capacity machines that can lift a full severe-duty bucket. When in doubt, size down to protect the machine.
Q: How is shipping calculated?
Shipping is calculated at checkout — add the item to your cart, enter your delivery address, and the shipping charge is displayed before you complete your order. Lift gate service is available for residential deliveries and can be selected at checkout.
Q: How do I order?
Add the item to your cart directly on eskidsteer.com and complete checkout online. Have your machine make, model, and serial number ready to confirm fitment before ordering. If you have a fitment question before purchasing, call us at (866) 757-8337.
