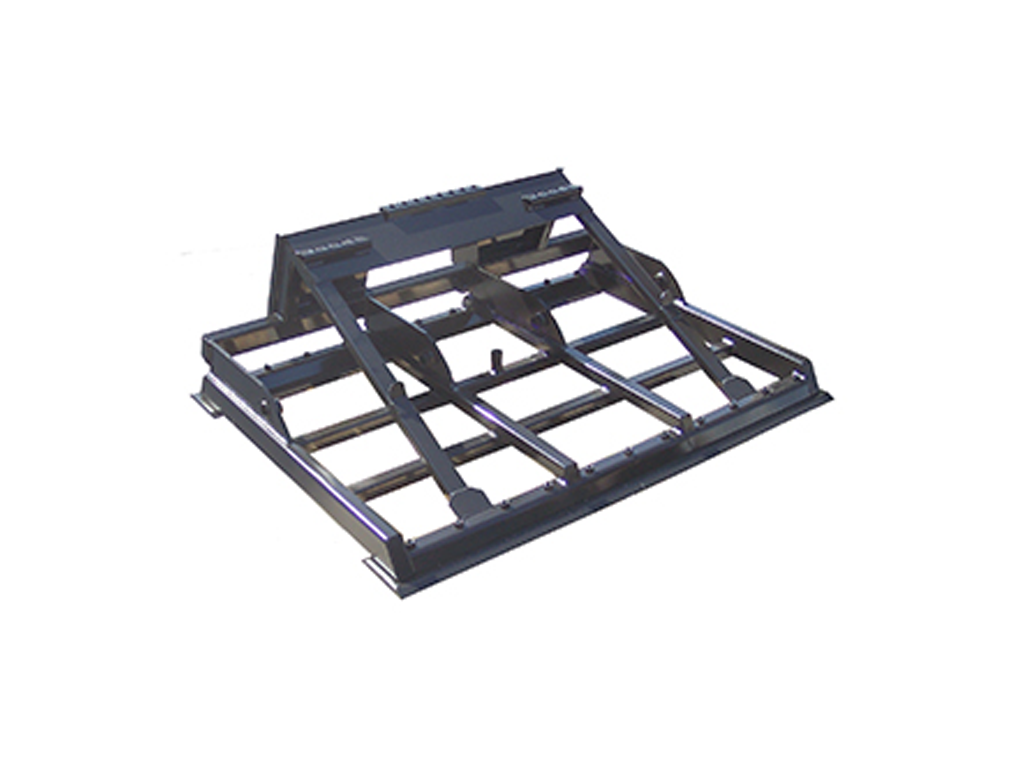

Haugen's land plane skid steer attachment is available in two styles: MLP (Without Mesh) — replaceable 5/8"×8" bolt-on cutting edges front and rear, optional scarifier — and HLP (With Mesh) — heavy-duty mesh carries material to low spots, 3/4" weld-on cutting edges. Widths: 72", 78", 84". No hydraulics required. Universal Quick Attach. Made in USA with a 1-year warranty.
| Model | Width | Weight | Notes |
|---|---|---|---|
| MLP 78 | 78" | 710 lbs | 5/8"×8" BOE front+rear |
| MLP 84 | 84" | 745 lbs | 5/8"×8" BOE front+rear |
| MLP 78 w/ Scarifier | 78" | — | Optional scarifier added |
| MLP 84 w/ Scarifier | 84" | — | Optional scarifier added |
| Model | Width | Weight | Notes |
|---|---|---|---|
| HLP 72 | 72" | 530 lbs | HD mesh + 3/4" weld-on edges |
| HLP 78 | 78" | 570 lbs | HD mesh + 3/4" weld-on edges |
| HLP 84 | 84" | 610 lbs | HD mesh + 3/4" weld-on edges |
| Specification | Value |
|---|---|
| MLP Cutting Edges | 5/8" x 8" bolt-on, front and rear — replaceable |
| MLP Scarifier | Optional — replaceable teeth, sizes 72"-90" |
| HLP Mesh | Heavy-duty mesh breaks up dirt and carries material to low spots |
| HLP Cutting Edges | High carbon 3/4" weld-on |
| Hydraulics | None required |
| Mount | Universal Quick Attach |
| Warranty | 1 year |
| Origin | Made in USA |
Universal QA. No aux hydraulics required. Height set by loader arm position. Compatible with any skid steer or compact track loader with SSQA.
Compatible with skid steer loaders and compact track loaders with Universal Quick Attach:
| Bobcat | Caterpillar | John Deere | Case |
| New Holland | Takeuchi | Kubota | Gehl |
No aux hydraulics required.
|
Q: Should I choose MLP (Without Mesh) or HLP (With Mesh)?
MLP Without Mesh: best for driveway and road grading where you want dual cutting edges (front and rear) for bidirectional grading and the option to add a scarifier for compacted surfaces. HLP With Mesh: best for fine grading and material redistribution on softer ground where the mesh's ability to carry fine material and fill low spots provides better single-pass results than a solid pan. |
|
Q: What is the optional scarifier for?
The optional scarifier on MLP models has replaceable teeth that rip the compacted surface crust before the blade passes. On summer-hardened gravel driveways, caliche, or hard-packed roads, the scarifier breaks the crust so the blade can grade effectively. Without it, a hardened surface can deflect the blade rather than being leveled. |
|
Q: Does the land plane require hydraulics?
No — it is a purely mechanical attachment. The loader arms raise and lower to set blade height. No aux hydraulic circuit is needed. |
|
Q: What is the difference between HLP 72 and MLP 78/84?
HLP models have mesh and weld-on cutting edges — they are available in 72", 78", and 84" and are designed for fine material redistribution. MLP models have bolt-on edges (no mesh) and the scarifier option — they are available in 78" and 84" and are designed for driveway and roadbed grading with bidirectional cutting edges. |
|
Q: Can I use the land plane on gravel driveways?
Yes — gravel driveway maintenance is the primary use case for both MLP and HLP series. The MLP scarifier option is particularly useful on gravel driveways that develop a hard summer crust. Multiple passes at different blade heights are typically used to achieve a smooth finished grade. |
