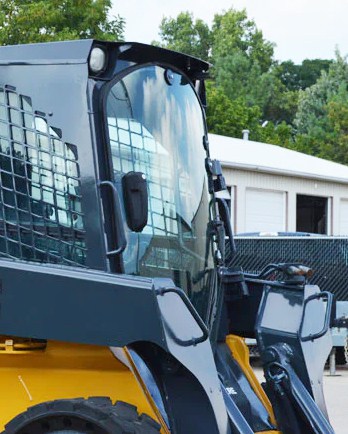

John Deere Skid Steer Forestry Door - D & E Series | Shields Lexan Polycarbonate

Material: Impact-grade polycarbonate — SHIELDS® SUPERCOAT™ both sides
OEM Glass Replaced: T312628 | while significantly improving durability and operator protection
Compatible Machines: Series models based on serial number configuration
Thicknesses: 1/4" | 3/8" | 1/2" (Clear and Tint where available)
Warranty: 10 years — breakage, coating failure, excessive haze, excessive yellowing

✅ Exact OEM replacement at every thickness — including 3/8" and 1/2"

Every thickness is cut to exact OEM dimensions and drops into the factory opening. The perimeter is edge-milled to OEM glass thickness so the panel seats in the factory gasket and frame. The latch area is counter-milled so the original latch engages and secures normally. Original latch, frame, and mounting hardware are reused — no drilling, shimming, or trimming; no hardware kit required.

Same impact-grade polycarbonate used in check-cashing and teller windows

260× stronger than glass at half the weight. Post-coated with SHIELDS® proprietary SUPERCOAT™ — a silicone hard coating applied after forming, abrasion-resistant to steel wool. Wiper-safe. Inspect wipers before use and clear debris from the frame seal. 10-year coverage against breakage, coating failure, hazing, and yellowing.

Shop the John Deere Windshield: Skid Steer D & E Series – Available in 1/4″, 3/8″, and 1/2″ thickness options to match your working conditions.

This windshield is designed to fit John Deere D Series machines, including 318D, 319D, 320D, 323D, 326D, 328D, 329D, 332D, and 333D, as well as compatible E Series models based on serial number configuration.

Important: E Series machines have a serial break. Units with serial numbers 269401 and below use D Series-style windshields, while units with serial numbers 269402 and above require a different configuration. Please verify your serial number before ordering.

Replaces OEM Glass# T312628

CLEAR POLYCARBONATE with SUPERCOAT™ Protection on Both Sides

Upgrade your John Deere skid steer with SHIELDS® SUPERCOATED™ polycarbonate windshields—engineered to deliver the same form, fit, and function as OEM glass while significantly improving durability and operator protection.

• Lightweight & High Impact Strength: Polycarbonate offers up to 260 times the strength of traditional glass while reducing overall weight.
• Precision OEM Fit: Each windshield is formed and machined to align with factory mounting points, allowing reuse of existing hardware.
• SUPERCOAT™ Surface Protection: Advanced coating technology provides abrasion resistance comparable to glass for long-term clarity.
• Enhanced Operator Comfort: Helps minimize noise, improves visibility, reduces heat buildup in summer, and retains warmth in colder conditions.

Available Options:

• Thickness: 1/4" (.25), 3/8" (.375), 1/2" (.5)
• Finish: Clear or Tint

Built for demanding environments, SHIELDS® windshields provide a reliable upgrade over standard glass—delivering long-lasting performance, improved safety, and dependable clarity for your John Deere skid steer.

Thickness-Chart:

🔧 Gasket Inspection

OEM gaskets are frequently damaged when the original glass breaks. Before installing, inspect the cab frame gasket — replace if torn, hardened, or deformed. A properly seated gasket is essential for weather sealing regardless of door material.

Q: Will a thicker polycarbonate door still fit my OEM frame and latch?

A: Yes. Every thickness — including 3/8" and 1/2" — is cut to exact OEM dimensions and drops into the factory opening. The perimeter is edge-milled to OEM glass thickness so the panel seats in the factory gasket and frame. The latch area is counter-milled so the original latch engages and secures normally. No accommodation is required for the added thickness.

Q: Does the 1/2" panel fit the same as the original glass?

A: Yes. The 1/2" panel is edge-milled to OEM glass thickness at the perimeter and counter-milled at the latch. It drops into the same factory frame, seats in the same gaskets, and is secured with the same hardware. No extra hardware, shimming, or drilling required.

Q: Can I still use my windshield wipers?

A: Yes. SUPERCOAT™ is wiper-compatible. Inspect your wiper blade before use and clear any rocks, sticks, or debris from the frame seal. Trapped debris scratches any surface — this is standard wiper maintenance, not a SHIELDS® limitation.

Q: What does the 10-year warranty cover?

A: Manufacturing defects: breakage, coating failure, excessive haze, and excessive yellowing — up to 10 years from date of sale. Does not cover scratching from normal use, impact damage from operation, or improper installation.

Q: Should I inspect or replace my gaskets?

A: Inspect them before installing. OEM gaskets are frequently damaged when the original glass breaks. Replace any gasket that is torn, hardened, or deformed before installing the new panel.

Q: What is SUPERCOAT™ and why does it matter?

A: SUPERCOAT™ is a proprietary silicone hard coating applied post-forming — not co-extruded into the material. Post-application gives higher adhesion and abrasion resistance. It is abrasion-resistant to steel wool and UV-stable. Cheap uncoated polycarbonate yellows and hazes within months outdoors; SUPERCOAT™ is designed to maintain clarity for the full warranty term.

Q: Shipping?

A: Shipping is calculated at checkout — simply add the item to your cart, enter your delivery address, and the shipping charge will be displayed before you complete your order.

Q: How do I order?

A: Add the item to your cart directly on eskidsteer.com and complete checkout online. If you have a fitment question before purchasing, call us at (866) 757-8337.
