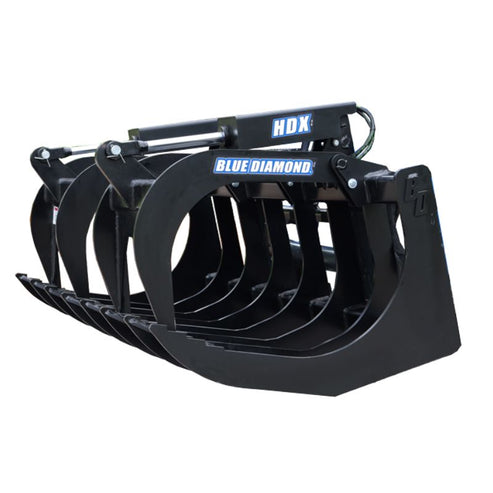

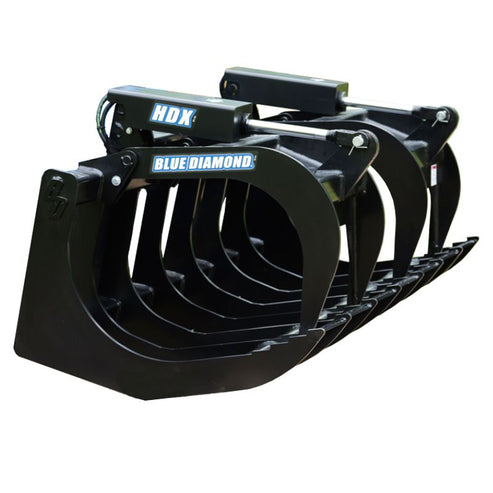

HDX 72" Root Grapple 75 HP - Blue Diamond

The HDX Root Grapple is engineered for tough material handling jobs where strength, control, and durability are essential. Built for skid steer operators working in land clearing, storm cleanup, brush removal, and debris handling, this grapple offers a rugged design with dual clamp performance for improved load control.

Its 72-inch width and 37-inch depth provide a solid working footprint for grabbing logs, roots, brush, limbs, and bulky debris while still maintaining maneuverability. The dual top clamp design helps secure uneven loads more effectively, making it easier to manage irregular materials during loading, transport, and cleanup.

Designed for machines up to 75 horsepower or 3,000 pounds of lift capacity, the HDX Root Grapple combines reinforced construction, protected hydraulic components, and dependable gripping force for operators who need serious everyday performance.

• 72-inch overall width and 37-inch depth
• Grapple opens to 32 inches for handling bulky materials
• Dual 1/2-inch thick top clamps for stronger gripping performance
• Fully welded hydraulic cylinders for long-term durability
• Upgraded cylinder protection for harsher working conditions
• Enhanced hose protection helps reduce damage during operation
• Durable powder-coated finish for added wear and corrosion resistance
• Universal skid steer mount for broad equipment compatibility
• Best suited for machines up to 75 HP or 3,000 lb lift capacity

• Improves control when handling roots, logs, brush, and loose debris
• Dual clamps provide a more secure grip on uneven or irregular loads
• Protected cylinders and hoses help reduce downtime on demanding jobs
• Supports efficient cleanup and land clearing with a wide, deep grapple design
• Durable construction helps withstand repeated heavy-duty use
• Fits a wide range of skid steers with universal mount compatibility

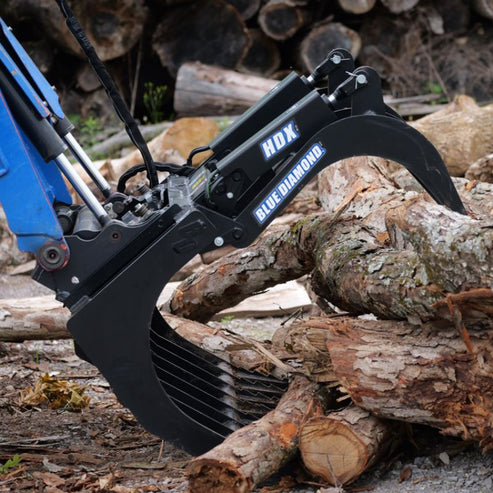

This HDX root grapple is designed for handling brush, logs, roots, limbs, storm debris, and loose organic material during land clearing, property cleanup, demolition support, and general material handling work.

Compatible with skid steer loaders equipped with a universal quick attach system. This model is best suited for machines up to 75 horsepower or approximately 3,000 pounds of lift capacity. Always verify attachment fitment and operating limits before use.

What type of material is the HDX Root Grapple designed to handle?
This grapple is designed for roots, logs, brush, limbs, storm debris, and other bulky organic material.

How wide is the HDX Root Grapple?
The attachment is 72 inches wide and 37 inches deep.

How far does the grapple open?
The dual clamp system opens to 32 inches.

What machines is this attachment best suited for?
It is best suited for skid steers up to 75 horsepower or around 3,000 pounds of lift capacity.

Does this grapple have cylinder and hose protection?
Yes. It includes upgraded cylinder protection and enhanced hose protection for added durability.
