Front Dump Bucket Attachment | Blue Diamond

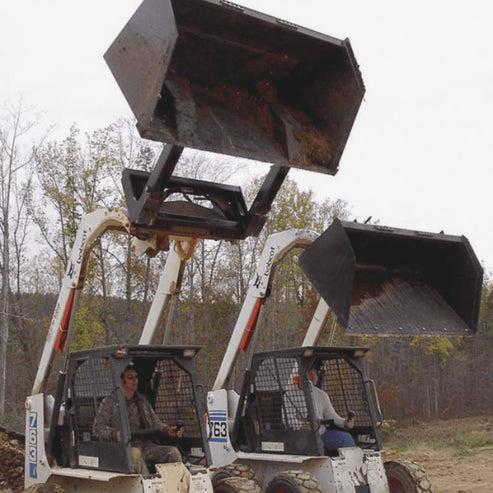

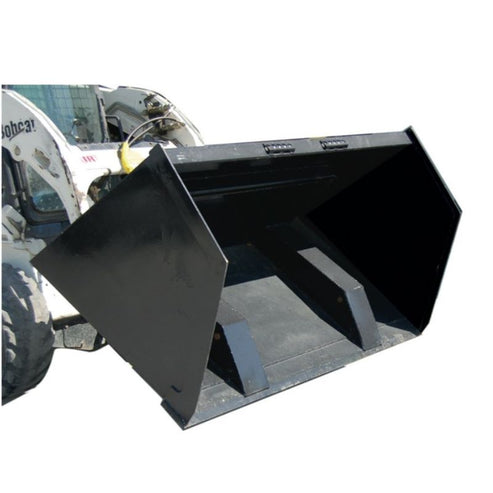

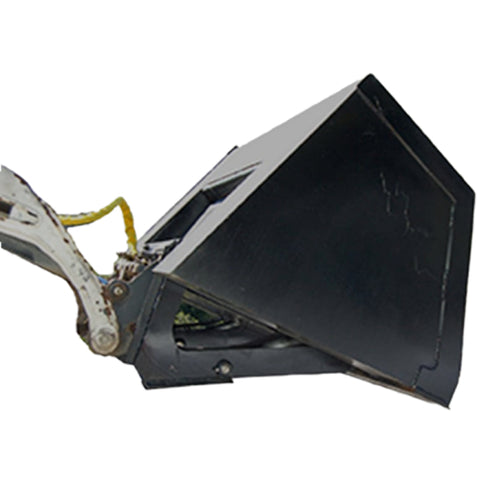

The Front Dump Bucket is designed to extend the reach and dumping capability of your skid steer, making it ideal for loading trucks, hoppers, and hard-to-reach areas. By providing additional lift height and forward reach, this attachment allows operators to place materials more accurately and efficiently.

With the ability to rotate into a full 90-degree dump position, this bucket delivers controlled material discharge, reducing spillage and improving jobsite precision. Its heavy-duty construction, reinforced pivot points, and hydraulic cylinder system ensure reliable performance in demanding environments.

Whether you're working in construction, agriculture, or material handling, this front dump bucket enhances productivity by improving placement accuracy and reducing the need for repositioning your machine.

• Available in 72-inch, 84-inch, and 96-inch widths
• Provides up to 43 inches of additional vertical lift
• Extends horizontal reach by up to 13 inches

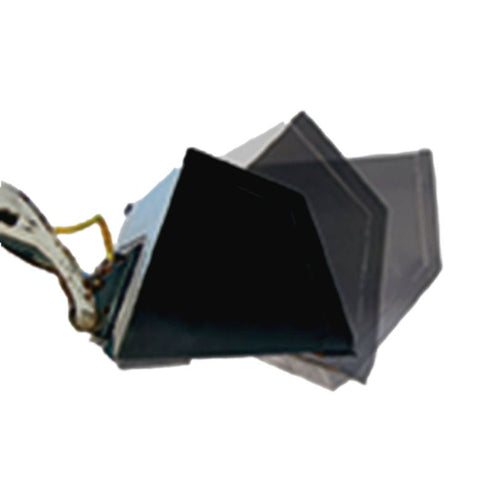

• Rotates to a full 90-degree dump angle for controlled unloading
• Equipped with two 2-inch by 10-inch hydraulic cylinders
• Oversized 1-1/4-inch greaseable pivot pins for durability
• Optional bolt-on cutting edge available
• Greaseable pivot points for easier maintenance
• Treaded step included for improved operator safety

• Improves loading height for trucks, trailers, and bins
• Enhances reach for placing materials in hard-to-access areas
• Allows precise material placement with controlled dumping action
• Reduces repositioning, saving time on the jobsite
• Supports heavy-duty use with reinforced components
• Improves safety with stable operation and integrated step access

This front dump bucket is designed for applications that require increased lift height and forward reach, such as loading trucks, filling bins, and placing materials in elevated or confined areas. It is suitable for construction, agriculture, and material handling operations.

Compatible with skid steer loaders and similar equipment that meet the hydraulic and lifting requirements of the attachment. Always confirm machine compatibility and operating limits prior to use.

How much additional lift does this bucket provide?
This attachment can increase vertical lift by up to 43 inches.

What is the benefit of the 90-degree dump angle?
The full 90-degree rotation allows for more controlled and precise material placement.

What sizes are available?
The front dump bucket is available in 72-inch, 84-inch, and 96-inch widths.

Is a cutting edge included?
An optional bolt-on cutting edge is available for added durability.

What applications is this bucket best suited for?
It is ideal for loading trucks, filling bins, and placing materials at elevated heights or hard-to-reach areas.
