Fork Mounted Snow Blade - Haugen Attachments

📘 Overview

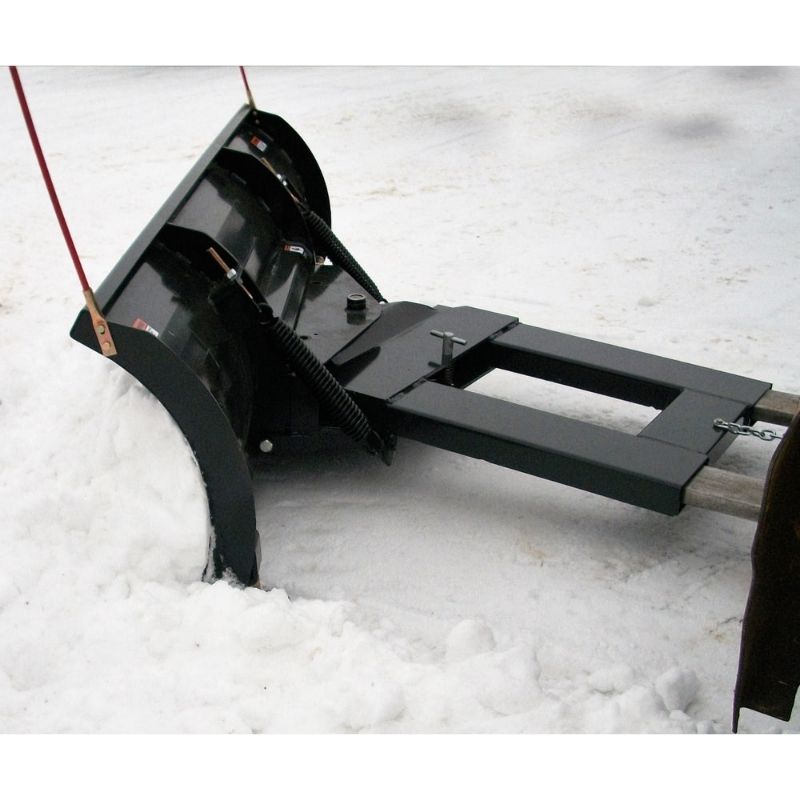

The Haugen HFSB fork mounted snow blade slips onto existing forklift or telehandler tines to convert any fork-equipped machine into a snow blade operator — no quick attach needed. Available in three widths: 60" (455 lbs, 46" angled width), 72" (495 lbs, 58" angled width), and 96" (545 lbs, 82" angled width). All feature a full-trip moldboard, replaceable cutting edge, skid shoes, powder coat finish, and standard fork pocket size 2-3/4" x 6-3/4". The blade angles to push snow to either side. No hydraulics required — angle is set manually before use. Made in USA with a 1-year warranty.

⚙️ Key Features

• Three widths: 60" (455 lbs), 72" (495 lbs), 96" (545 lbs)
• Full-trip moldboard — trips on impact with fixed obstacles (curbs, drain grates) to prevent damage to the blade and machine
• Replaceable cutting edge — worn edge swaps out; no full blade replacement needed
• Skid shoes — protect pavement and control blade height
• Fork pocket: 2-3/4" x 6-3/4" — slips onto existing tines, secured with locking pins at the fork heel
• Blade angles to push snow to either side
• No hydraulics required
• Powder coat | Made in USA | 1-year warranty

🔑 Benefits

• Converts any fork-equipped machine into a snow blade operator without buying a dedicated snow blade machine — telehandlers, forklifts, and other fork-equipped machines sitting idle in winter can be put to work immediately with the HFSB at a fraction of the cost of a dedicated snow removal attachment with a proprietary mount.
• Full-trip moldboard prevents costly blade and machine damage from hidden obstacles — parking lot snow removal always involves the risk of hitting curb stops, drain covers, and manhole rings under snow cover. The trip mechanism absorbs the impact rather than transmitting it through the machine.
• Replaceable cutting edge keeps the blade in service without major downtime — the HFSB cutting edge is a replaceable wear component. On a single plow blade, cutting edge replacement can extend service life by 10+ years vs single-piece blades that require full replacement when the edge wears.
• No hydraulics means no circuit, no hoses, no couplers — just slip on and go — for telehandlers or forklifts without a spare hydraulic circuit available (common on machines already running attachments), the non-hydraulic HFSB is the only viable blade option.

📊 Specifications

🔗 Attachment Compatibility

The HFSB slips over fork tines with a 2-3/4" x 6-3/4" cross-section or smaller and is secured with locking pins at the fork heel. Fits telehandlers, straight-mast forklifts, and any fork-equipped machine with tines of the correct cross-section. No auxiliary hydraulic circuit required.

🚜 Machine Compatibility

Fork-mounted — fits telehandlers and forklifts with standard fork tines. Standard pocket: 2-3/4" x 6-3/4". Compatible with major brands:

Also fits standard forklifts with tines up to 2-3/4" x 6-3/4" cross-section. No hydraulics required.

❓ FAQs
