Description
📘 Overview

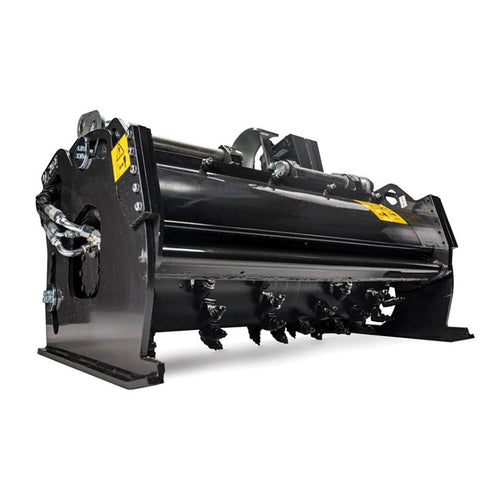

The Blue Diamond Extreme Duty Series 2 Cold Planer is a skid steer cold planer that mills and removes asphalt and concrete for repairs, overlays, and utility work. It mounts to a universal skid steer quick-attach interface and grinds a precise, depth-controlled cut, leaving milled material in the work area for easy cleanup.
This listing spans grinding widths from 14″ to 48″ with cutting depths of 4.3″ to 6.7″, in low-flow and high-flow models. Match the width and flow to your machine and your job — narrow drums for patch repairs, wider drums for shoulder work and larger milling.
As a blue diamond cold planer skid steer, it's built for paving and utility contractors. The self leveling cold planer design with independent left/right depth adjustment keeps the cut true across uneven surfaces. As an asphalt milling attachment skid steer, it removes surfaces before overlay; a 14 48 inch cold planer skid steer range means one product line covers pothole patches through wide milling passes.
Grease fittings on all pivots, independent depth adjustment on each side, and a design that keeps milled material in the work area make it a productive, low-maintenance milling tool. It requires 12–21 GPM at up to 3,625 PSI.
⚙ Cold Planer Features
- Removes asphalt surfaces prior to overlay
- 14″ to 48″ grinding widths
- 4.3″ to 6.7″ cutting depths
- Independent depth adjustment on right or left
- Self-leveling for a true cut on uneven ground
- Widening shoulders and restoring drainage lines
- Repairing potholes
- Milled material remains in the work area
- Grease fittings on all pivots
🔑 Why Choose the Blue Diamond Extreme Duty Cold Planer
- Independent left/right depth control — dial each side separately to follow a crown or grade, so the cut stays true where a fixed-depth planer would gouge or skip.
- Self-leveling for consistent depth — the planer follows the surface for an even mill, essential for clean overlays and patches.
- Milled material stays put — spoil is left in the work area rather than scattered, cutting cleanup time.
- Grease fittings on all pivots — straightforward maintenance keeps a hard-working milling tool running.
- Width and flow options — 14″ to 48″ across low- and high-flow models, so you match the planer to your machine and job.
🔄 Skid Steer Cold Planer Variant Specifications
| Part Number | Width / Flow | Weight |
|---|---|---|
| 160950 | 14” Low Flow | 1350 lbs |
| 160951 | 16” Low Flow | 1450 lbs |
| 160952 | 18” High Flow | 1900 lbs |
| 160953 | 20” High Flow | 2000 lbs |
| 160954 | 24” High Flow | 2100 lbs |
| 160955 | 30” High Flow | 2300 lbs |
| 160956 | 40” High Flow | 2400 lbs |
| 160957 | 48” High Flow | 2660 lbs |
🚜 Machine Compatibility
Compatible with skid steer loaders and compact track loaders equipped with a Universal Quick Attach system, including:
Bobcat
Caterpillar
John Deere
Case
New Holland
Takeuchi
Kubota
Gehl
Compatibility is determined by mount type, not brand — confirm your machine's quick attach configuration before ordering. Match the model to your machine's hydraulics: Bobcat Caterpillar John Deere Case New Holland Takeuchi Kubota Gehl Hydraulic flow: requires 12–21 GPM (low-flow and high-flow models) Operating pressure: up to 3,625 PSI Mount: universal skid steer quick-attach Wider high-flow drums need higher-flow machines to cut at full depth. Not sure it fits your machine? Contact eskidsteer.com at (866) 757-8337.
❓ Frequently Asked Questions
Q: What width and depth do I need?
Grinding widths run 14″ to 48″ with 4.3″ to 6.7″ cutting depth. Narrow drums (14″–18″) suit pothole and utility-cut repairs; wider drums (24″–48″) handle shoulder widening and larger milling. Match width to your job and to your machine's flow.
Q: What does independent depth adjustment do?
You can set the cutting depth on the left and right sides separately, letting the planer follow a crowned road or a grade so the cut stays true across the width. It's what separates this from a fixed-depth planer on uneven surfaces.
Q: What hydraulic flow does the cold planer need?
It requires 12–21 GPM depending on model, at up to 3,625 PSI. Low-flow models suit standard machines; the wider high-flow models need higher-flow loaders to cut at full depth. Confirm your machine's flow before ordering.
Q: Is this a self-leveling cold planer?
Yes — the self-leveling design lets the drum follow the surface for a consistent, even mill, which is important for clean overlays and patch repairs.
Q: How is shipping calculated?
Shipping is calculated at checkout — add the item to your cart, enter your delivery address, and the shipping charge is displayed before you complete your order. Lift gate service is available for residential deliveries and can be selected at checkout.
Q: How do I order?
Add the item to your cart directly on eskidsteer.com and complete checkout online. Have your machine make, model, and serial number ready to confirm fitment before ordering. If you have a fitment question before purchasing, call us at (866) 757-8337.
