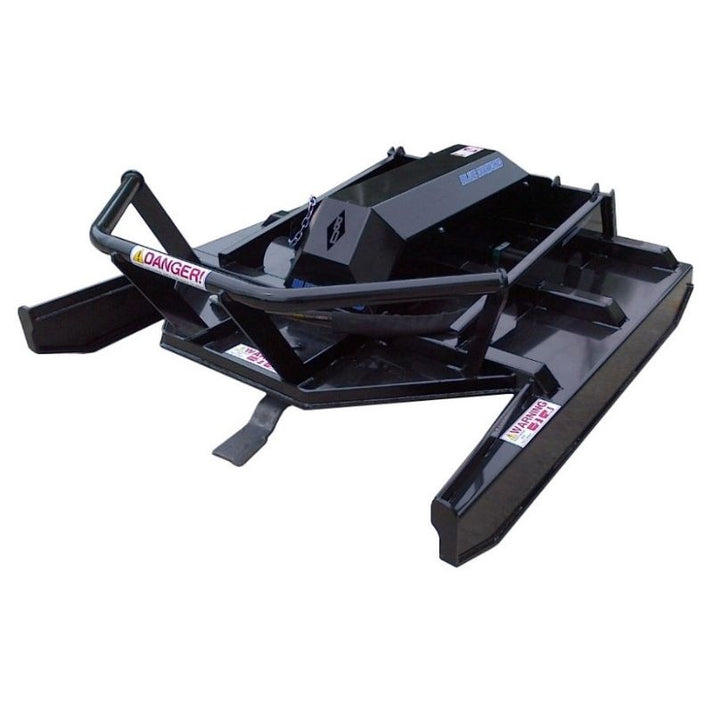

Extreme Duty Open Front Brush Cutter - Blue Diamond
Extreme Duty Open Front Brush Cutter - Blue Diamond
Extreme Duty Open Front Brush Cutter - Blue Diamond
Extreme Duty Open Front Brush Cutter - Blue Diamond
Extreme Duty Open Front Brush Cutter - Blue Diamond
Extreme Duty Open Front Brush Cutter - Blue Diamond
Extreme Duty Open Front Brush Cutter - Blue Diamond
Extreme Duty Open Front Brush Cutter - Blue Diamond
Extreme Duty Open Front Brush Cutter - Blue Diamond
Extreme Duty Open Front Brush Cutter - Blue Diamond
Extreme Duty Open Front Brush Cutter - Blue Diamond
Extreme Duty Open Front Brush Cutter - Blue Diamond
Extreme Duty Open Front Brush Cutter - Blue Diamond
Extreme Duty Open Front Brush Cutter - Blue Diamond
Extreme Duty Open Front Brush Cutter - Blue Diamond

Extreme Duty Open Front Brush Cutter - Blue Diamond

Vendor: Blue Diamond
SKU: 103016
Availability: In stock
$10,051.99
$10,660.99
$10,051.99
Model: 60" Low Flow (15-22 GPM)
Subtotal: $10,051.99

Lead Time: 3

Extreme Duty Open Front Brush Cutter - Blue Diamond

Extreme Duty Open Front Brush Cutter - Blue Diamond

$10,660.99 $10,051.99

Extreme Duty Open Front Brush Cutter - Blue Diamond

$10,660.99 $10,051.99
Model: 60" Low Flow (15-22 GPM)
Overview

The extreme duty brush cutter is engineered for aggressive land clearing and heavy vegetation control in demanding environments. Designed for skid steer operators who need reliable performance in thick brush and rugged terrain, this attachment delivers powerful cutting capability with durable construction and advanced protection features.

Available in 60-inch and 72-inch cutting widths, this cutter is capable of handling material up to 6 to 8 inches in diameter. Its bi-directional cutting system allows operators to control discharge direction while extending blade life, making it an efficient solution for clearing jobs that require both precision and power.

With a fully enclosed motor compartment, grease-filled drive system, and heavy-duty spindle design, this brush cutter is built to withstand tough working conditions while reducing maintenance demands. Whether tackling overgrowth, clearing property lines, or maintaining large areas, this attachment is designed for consistent, high-performance cutting.

Key Features
  • Available in 60-inch and 72-inch cutting widths
  • Cuts brush and material up to 6 to 8 inches in diameter
  • Steel double-sided blades mounted on a 3/4-inch thick blade carrier
  • 3.5-inch forged one-piece spindle for increased durability
  • Bi-directional cutting for improved discharge control and longer blade life
  • Grease-filled drive system enhances bearing life and protects seals
  • External cross-port reliefs help protect the hydraulic motor
  • Fully enclosed motor compartment reduces debris intrusion and overheating
  • Open design eliminates rear roller drag for smoother operation
  • Available in both low flow and high flow configurations
  • No case drain required
Benefits
  • Delivers powerful cutting performance for dense brush and heavy vegetation
  • Extends component life with advanced spindle and drive system design
  • Improves efficiency with bi-directional cutting capability
  • Reduces maintenance needs through sealed and protected components
  • Operates more smoothly without rear roller drag or debris buildup
  • Adapts to different machines with both low flow and high flow options
Specifications
Feature Specification
Cutting Widths 60" and 72"
Cutting Capacity 6" to 8"
Blade Type Steel Double-Sided Blades
Blade Carrier 3/4" Thick
Spindle 3.5" Forged One-Piece
Drive System Grease-Filled
Flow Options Low Flow and High Flow Models Available
Case Drain Not Required
Variant Specifications
Part Number Model Required Flow Weight
103016 60” Low Flow - Open Front 14–22 GPM 1,232 lbs
103025 72” Low Flow - Open Front 16–26 GPM 1,560 lbs
103017 60” High Flow - Open Front 23–40 GPM 1,296 lbs
103030 72” High Flow - Open Front 27–35 GPM 1,607 lbs
103032 72” High Flow - Open Front 36–45 GPM 1,633 lbs
Variant Options
Option Type Available Choices Details
Cutting Width 60" or 72" Select the cutting width based on your machine size and jobsite requirements.
Flow Configuration Low Flow or High Flow Choose the model that matches your machine’s hydraulic output for optimal performance.
Front Design Open Front Open design improves material flow and reduces drag during operation.
Attachment Compatibility

This extreme duty brush cutter is ideal for clearing heavy brush, overgrowth, saplings, and dense vegetation. It is well suited for land clearing, property maintenance, right-of-way management, and agricultural applications.

Machine Compatibility

Compatible with skid steers that meet the required hydraulic flow specifications for either low flow or high flow models. Always verify machine hydraulic capacity, attachment fitment, and operating limits before use.

FAQs

What is the cutting capacity of this brush cutter?
It is designed to cut material up to 6 to 8 inches in diameter.

What cutting widths are available?
This model is available in 60-inch and 72-inch widths.

Does this cutter require a case drain?
No. A case drain is not required for this attachment.

What is the advantage of bi-directional cutting?
Bi-directional cutting allows you to control discharge direction and helps extend blade life.

Is this available in both low flow and high flow?
Yes. Models are available for both low flow and high flow hydraulic systems.

What types of jobs is this cutter best for?
It is ideal for clearing heavy brush, maintaining property lines, land clearing, and managing dense vegetation.

Downloads
Videos

Contact eSkidSteer today to learn more or place your order! Visit eskidsteer.com, call us at 866-757-8337, email support@eskidsteer.com, or use the live chat button on the screen for immediate assistance.
