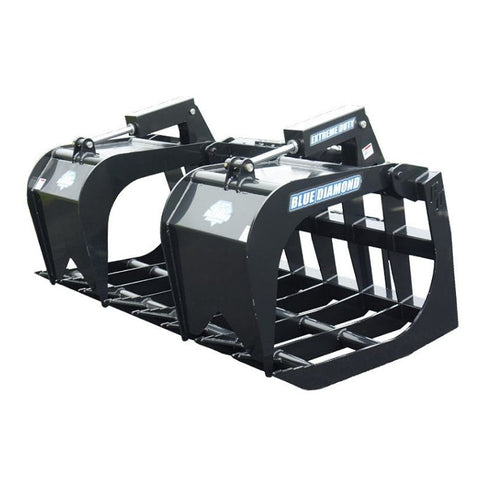

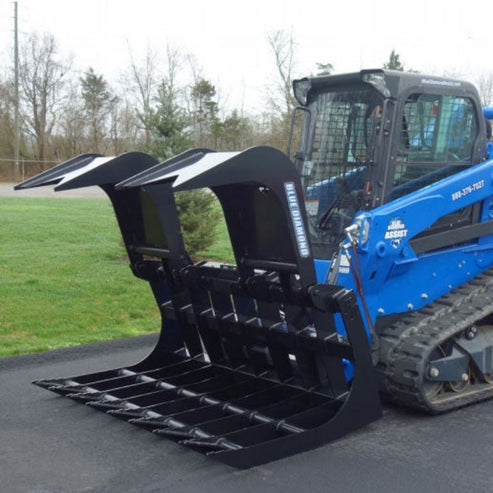

Extreme Duty High Capacity Root Grapple | Blue Diamond

The Extreme Duty High Capacity Root Grapple is engineered for demanding land clearing, demolition, and heavy material handling tasks. Built for high-horsepower skid steers, this grapple delivers exceptional strength, wide opening capability, and reliable clamping force for handling bulky debris, logs, roots, and brush.

With a reinforced structure, heavy-duty steel construction, and dual independent clamps, this attachment provides a secure grip and improved load control. Whether you're clearing land, moving large piles of debris, or tackling tough cleanup jobs, this grapple is designed to maximize productivity and durability.

• Available in 72", 78", and 84" working widths
• Wide opening up to 59 inches at the tine tips for handling large loads
• Spacious 25" x 42" internal clamp opening for bulky materials
• Built for skid steers up to 100 HP
• Dual independent top clamps made from 1/2" thick steel for balanced gripping
• One-piece 1/2" solid steel tines with serrated edges for improved hold
• 8" tine spacing with reinforced cross tube design for structural strength
• Heavy-duty 1 1/4" greaseable pivot pins for long service life
• Integrated step plates for easier and safer operator access
• Fully protected hydraulic cylinders for added durability
• "No pinch" hose routing system to prevent damage during operation
• Includes hoses and flat face couplers for quick connection
• Universal skid steer mount for broad machine compatibility

• Handles large, heavy loads with ease thanks to high-capacity design
• Provides strong and even gripping power with dual independent clamps
• Improves efficiency in land clearing and debris removal projects
• Enhances durability for demanding environments and heavy-duty use
• Reduces maintenance needs with protected components and greaseable pins
• Ensures safer operation with stable load control and reinforced structure

This root grapple is ideal for handling brush, logs, roots, demolition debris, and other bulky materials. It is commonly used in land clearing, construction cleanup, forestry work, and agricultural operations.

Compatible with skid steer loaders up to 100 horsepower. Always confirm your machine’s hydraulic flow, lift capacity, and mounting compatibility before use.

What sizes are available?
This grapple is available in 72", 78", and 84" widths.

What type of machines can use this grapple?
It is designed for skid steers up to 100 horsepower.

How wide does the grapple open?
It opens up to 59 inches at the tips of the tines.

Are the clamps independent?
Yes, it features dual independent clamps for even and secure gripping.

Does it include hydraulic connections?
Yes, hoses and flat face couplers are included for easy hookup.
