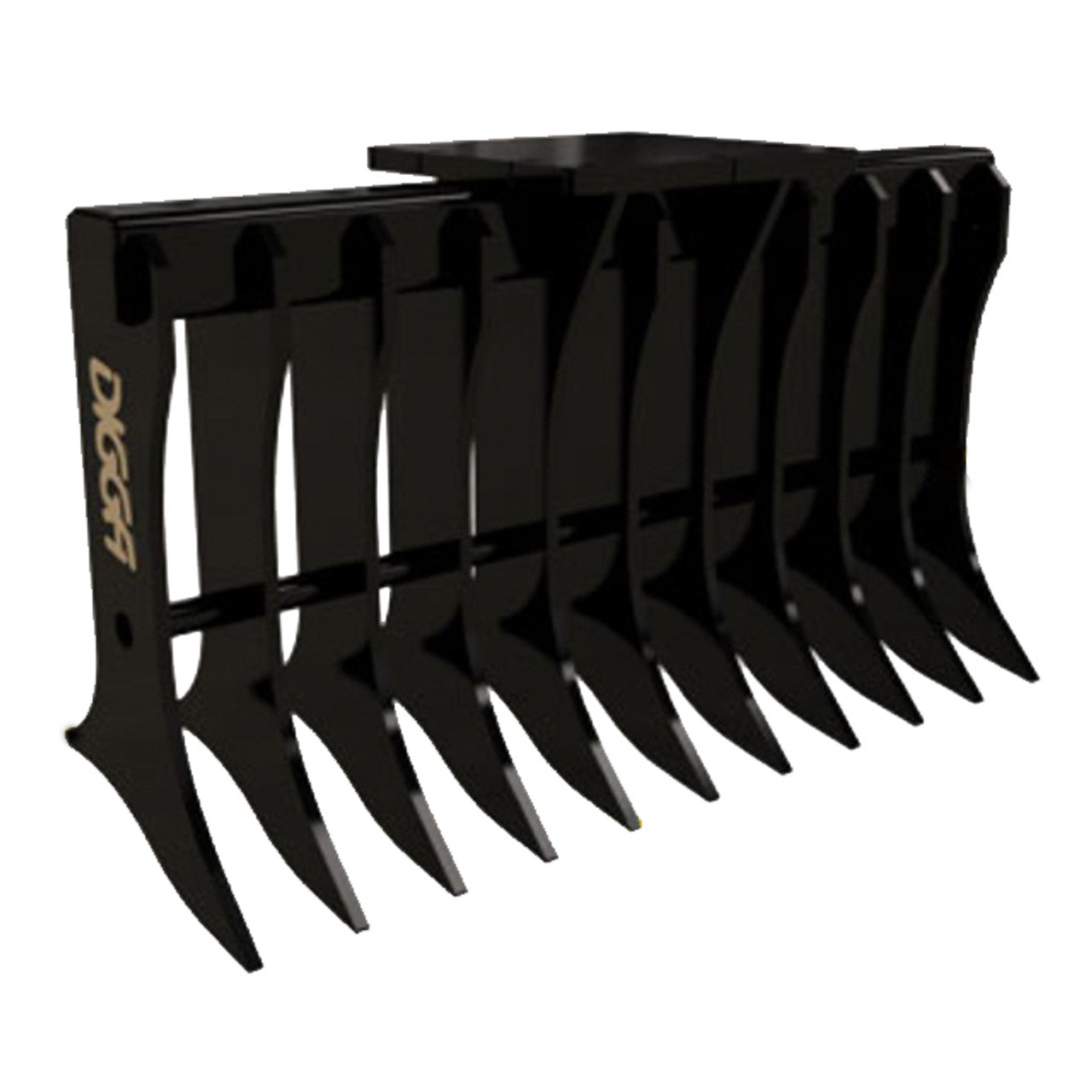

Excavator Root Rake Attachment - Digga

📘 Overview

The Digga Excavator Root Rake (Model SR-000035) is a 1230mm (48.4"") heavy-duty stick rake for excavators up to 10 tons — purpose-built for land clearing, vegetation management, soil sifting, and debris removal. Featuring 11 tynes of 16mm steel at 102mm spacing, the SR-000035 rakes both forward and backward for maximum flexibility, weighs 194kg, and is available to any excavator hitch specification including Multifit and Euro Frame options. Made in Australia by Digga. Compatible with excavators up to 10T.

⚙️ Key Features

• Model SR-000035 | 1230mm (48.4"") width | 194kg weight
• 11 tynes | 16mm tyne thickness | 102mm tyne spacing
• 700mm height
• Rakes forward and backward — maximum operating flexibility
• Available to any excavator hitch specification
• Multifit and Euro Frame options available
• For excavators up to 10T
• Made in Australia by Digga | Digga — attachments since 1981

🔑 Benefits

• 16mm heavy-duty tynes withstand the impact of rocks, stumps, and debris that destroy lighter rakes — light-gauge stick rakes (8-12mm tynes) bend and break when encountering buried rocks, concrete rubble, or dense root systems. The SR-000035's 16mm tynes absorb repeated high-impact contact without deformation, maintaining tyne geometry and spacing throughout the job.
• Forward and backward raking doubles the useful work per machine positioning — conventional rakes only work in one direction, requiring the machine to reposition between each pass. The SR-000035 rakes efficiently in both directions, allowing the operator to clear material in both the forward and return strokes — dramatically increasing coverage per hour on large clearing jobs.
• 102mm tyne spacing sifts soil and small material while retaining roots, rocks, and debris — the gap is narrow enough to retain material of any useful size while allowing fine soil to fall through. This is the key functional advantage of a root rake over a bucket: it moves only the material you want to move, leaving valuable topsoil in place.
• Available to any hitch specification eliminates the most common excavator attachment compatibility issue — excavator pin dimensions and hitch types vary significantly between brands and models. Digga's any-hitch manufacturing approach means the SR-000035 is ordered to match your specific machine — no adapter required.

📊 Specifications

🔗 Attachment Compatibility

Available to any excavator hitch specification — order must specify pin diameter, pin center-to-center dimension, and bucket bracket width to match your excavator's dipper end. Contact eskidsteer.com with your excavator make and model for hitch specification confirmation. Multifit and Euro Frame options also available.

🚜 Machine Compatibility

Compatible with excavators in the up to 10T weight class:

Order with your excavator hitch specification — contact eskidsteer.com with machine make and model before ordering.
