Description
🛡️3-year warranty
📘 Overview

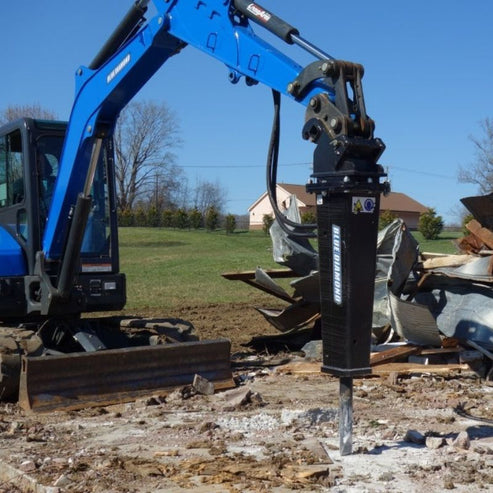

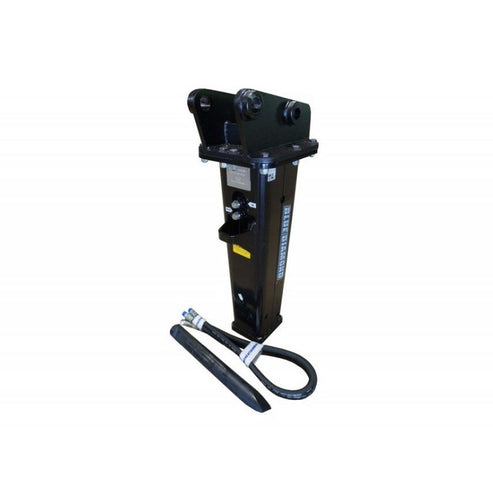

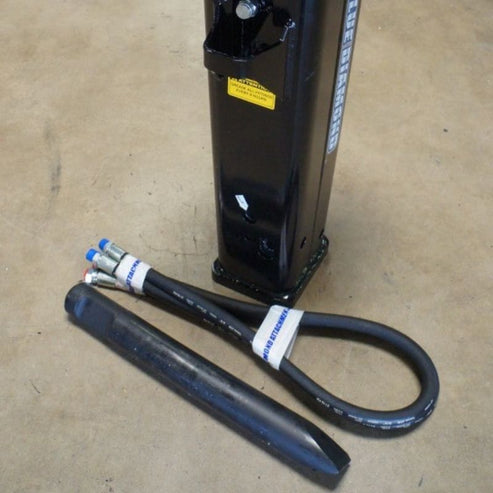

The Blue Diamond Excavator Hydraulic Breaker is a demolition hammer that turns your excavator or compact loader into a concrete- and rock-breaking machine. It fits excavator and skid steer mounts with a universal quick-attach coupler. It's an excavator hydraulic breaker built around a mono-block design with only two internal moving parts, so it delivers hard-hitting, reliable performance with minimal maintenance.
This listing covers the full range, matched to carrier weight — from the HB50 (1,500–2,650 lb carriers) up to the HB950 (22,000–33,000 lb carriers). Choosing the right breaker is about matching the hammer to your machine's weight, so the pages below list each model against its carrier range.

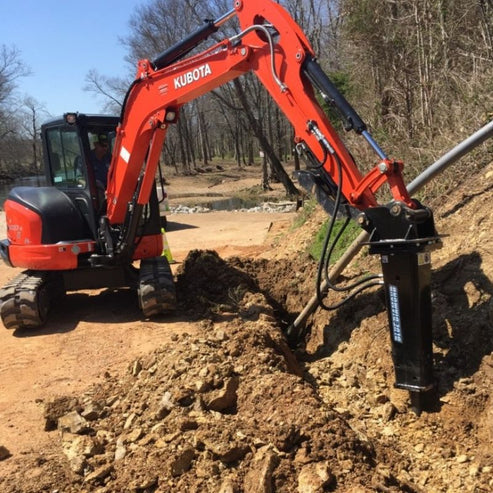

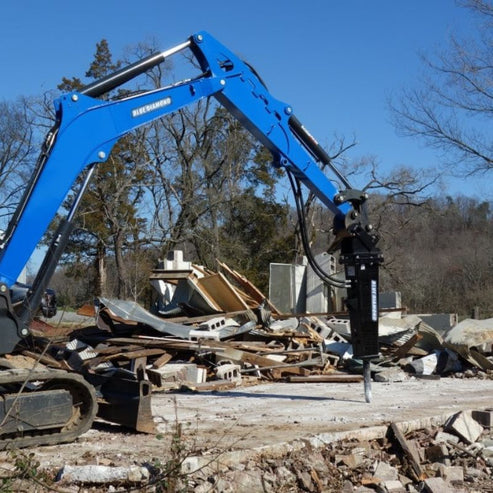

As a blue diamond excavator hydraulic breaker, it's built for demolition, trenching in rock, and foundation work. Operators running compact machines use it as a mini excavator breaker attachment; demolition crews rely on it as an excavator demolition hammer. Because it's a self-regulating hydraulic hammer excavator setup with no gas to recharge, it stays productive with far less downtime than nitrogen-charged designs.
Every model carries a 3-year warranty, features anti-blank-firing protection to prevent damage when material breaks through, and offers 2-speed variable control. There are no tie rods and no re-gassing required.
⚙ Excavator Hydraulic Breaker Features
- Only 2 internal moving parts
- 3 year warranty
- 2-speed control / variable
- Mono-block design / no tie rods
- Anti-blank firing system
- Quiet operation
- Self-regulating
- No re-gassing needed
🔑 Why Choose the Blue Diamond Excavator Hydraulic Breaker
- Only two moving parts — the mono-block design means far less to wear out or maintain than complex breakers, translating to less downtime and lower service cost.
- No re-gassing, ever — the self-regulating design never needs a nitrogen recharge, eliminating a routine maintenance headache and a common failure point.
- Anti-blank-firing protection — when the tool punches through material, the system prevents the damaging dry-fire that shortens the life of unprotected hammers.
- Matched to your carrier weight — a full model range from HB50 to HB950 means you run a breaker sized to your machine, not an under- or over-matched one.
- 3-year warranty — backed for demolition-grade duty, so you can put it to work with confidence.
📊 Excavator Hydraulic Breaker Specifications
| Part Number | Model / Carrier Weight | Weight |
|---|---|---|
| 335005-EX | Model HB50 | Carrier Weight 1500 - 2650 lbs | 147 lbs |
| 335009-EX | Model HB95 | Carrier Weight 2650 - 4000 lbs | 235 lbs |
| 335016-EX | Model HB165 | Carrier Weight 4000 - 6600 lbs | 378 lbs |
| 335021-EX | Model HB210 | Carrier Weight 6100 - 9900 lbs | 478 lbs |
| 335030-EX | Model HB300 | Carrier Weight 8800 - 15500 lbs | 676 lbs |
| 335040-EX | Model HB400 | Carrier Weight 13500 - 20900 lbs | 924 lbs |
| 335053-EX | Model HB530 | Carrier Weight 17650 - 25350 lbs | 1189 lbs |
| 335095-EX | Model HB950 | Carrier Weight 22000 - 33000 lbs | 2115 lbs |
| 335098-EX | Model HB1400 | Carrier Weight 30000 - 50000 lbs | 3664 lbs |
| 335100-EX | Model HB1800 | Carrier Weight 48000 - 70000 lbs | 3723 lbs |
| 335105-EX | Model HB2500 | Carrier Weight 60000 - 80000 lbs | 5598 lbs |
| 335110-EX | Model HB3000 | Carrier Weight 70000 - 110000 lbs | 7292 lbs |
📋 Breaker Model Options
- 335005-EX — Model HB50 | Carrier Weight 1500 - 2650 lbs
- 335009-EX — Model HB95 | Carrier Weight 2650 - 4000 lbs
- 335016-EX — Model HB165 | Carrier Weight 4000 - 6600 lbs
- 335021-EX — Model HB210 | Carrier Weight 6100 - 9900 lbs
- 335030-EX — Model HB300 | Carrier Weight 8800 - 15500 lbs
- 335040-EX — Model HB400 | Carrier Weight 13500 - 20900 lbs
- 335053-EX — Model HB530 | Carrier Weight 17650 - 25350 lbs (special order)
- 335095-EX — Model HB950 | Carrier Weight 22000 - 33000 lbs
- 335098-EX — Model HB1400 | Carrier Weight 30000 - 50000 lbs (special order)
- 335100-EX — Model HB1800 | Carrier Weight 48000 - 70000 lbs (special order)
- 335105-EX — Model HB2500 | Carrier Weight 60000 - 80000 lbs (special order)
- 335110-EX — Model HB3000 | Carrier Weight 70000 - 110000 lbs (special order)
🚜 Machine Compatibility
Compatible with mini excavators using a pin-on or quick-coupler mount matched to your machine's weight class and coupler. Common compatible brands include:
Caterpillar
John Deere
Kubota
Bobcat
Takeuchi
Komatsu
Case
Kobelco
Compatibility is determined by coupler type and machine weight class, not brand — confirm your excavator's coupler and weight before ordering. Each model states its carrier weight range, from the HB50 for 1,500–2,650 lb machines up to the HB950 for 22,000–33,000 lb machines. Not sure it fits your machine? Contact eskidsteer.com at (866) 757-8337.
❓ Frequently Asked Questions
Q: How do I choose the right breaker for my machine?
Match the breaker to your machine's operating weight. Find your carrier weight and choose the model whose range includes it — for example, the HB165 fits 4,000–6,600 lb carriers. An oversized breaker stresses the machine; an undersized one breaks slowly. Carrier weight is the key number.
Q: Does it need to be re-gassed?
No — the breaker is self-regulating and never needs a nitrogen recharge. This eliminates one of the most common maintenance tasks and failure points on conventional hydraulic hammers.
Q: What does the anti-blank firing system do?
When the tool breaks through material and there's nothing left to strike, unprotected hammers "dry fire," which damages internal components. The anti-blank-firing system prevents this, protecting the breaker and extending its life.
Q: What warranty comes with it?
Every model carries a 3-year warranty, reflecting the durability of the mono-block, two-moving-part design.
Q: Can I use this on a mini excavator?
Yes — the smaller models like the HB50 (1,500–2,650 lbs) and HB95 (2,650–4,000 lbs) are sized as mini excavator breaker attachments. Match the model to your specific mini's operating weight.
Q: How is shipping calculated?
Shipping is calculated at checkout — add the item to your cart, enter your delivery address, and the shipping charge is displayed before you complete your order. Lift gate service is available for residential deliveries and can be selected at checkout.
Q: How do I order?
Add the item to your cart directly on eskidsteer.com and complete checkout online. Have your machine make, model, and serial number ready to confirm fitment before ordering. If you have a fitment question before purchasing, call us at (866) 757-8337.
📥 Downloads
🎥 Videos
Watch the Blue Diamond Excavator Hydraulic Breaker in action
