Material
Hardened steel
Dimensions
12 x 7 x 4 in
Finish
Powder coat
Guaranteed Fit
Fast Shipping
Hassle-Free Returns
Description
🏭Made in USA
🔒1-year warranty
🔧Permanent cage mount
📘 Overview

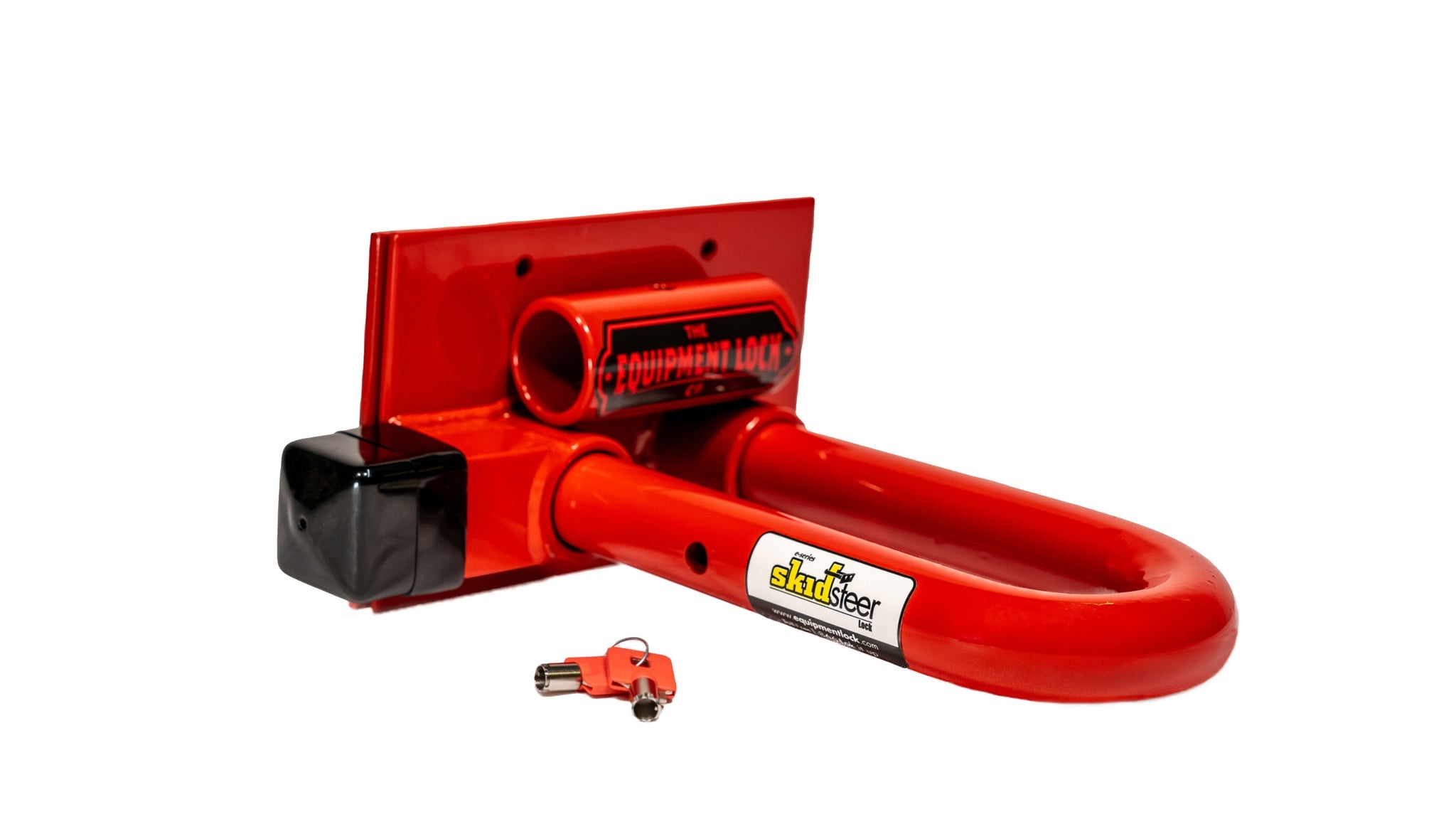

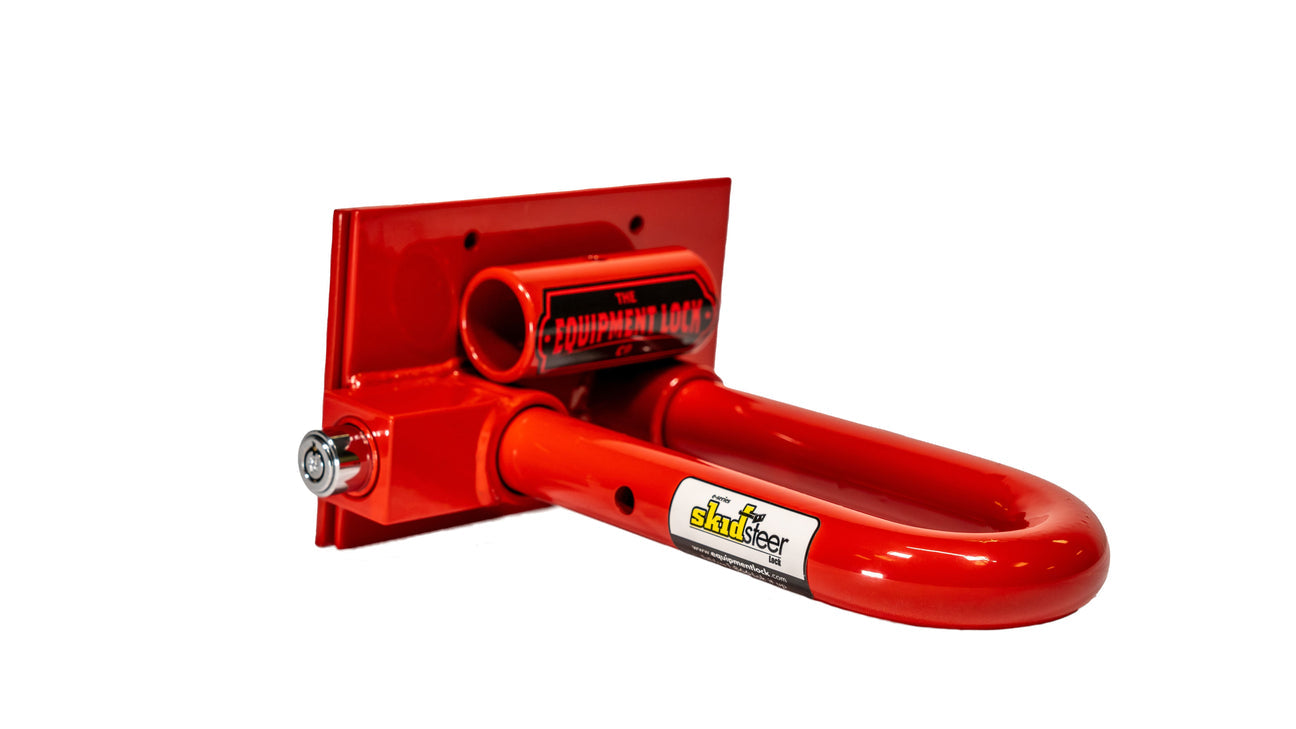

The E-Series Skid Steer Lock slides around one of the loader drive control levers and locks it into a plate that is permanently fixed to the protective cage — with one control immobilised the most anyone can do is turn the machine in circles. It exists for the loaders the standard Skid Steer Lock cannot serve: JCB Robot, Kubota, Takeuchi and Thomas machines have no usable cage holes, so the E-Series is the only option on those four. The locking plate is secured with four non-reversing stainless steel screws, which means it stays on the machine rather than going home in a contractor toolbox. On an enclosed cab the locking plate mounts outside the cab and the 3/16 in mounting plate inside, so the glass still slides past it in normal operation. Order it Keyed Differently for a unique key, Keyed Alike to match a key code already in your fleet, or as a four-digit Combination Lock where several operators need access.
⚙ Key Features of the E-Series Skid Steer Lock

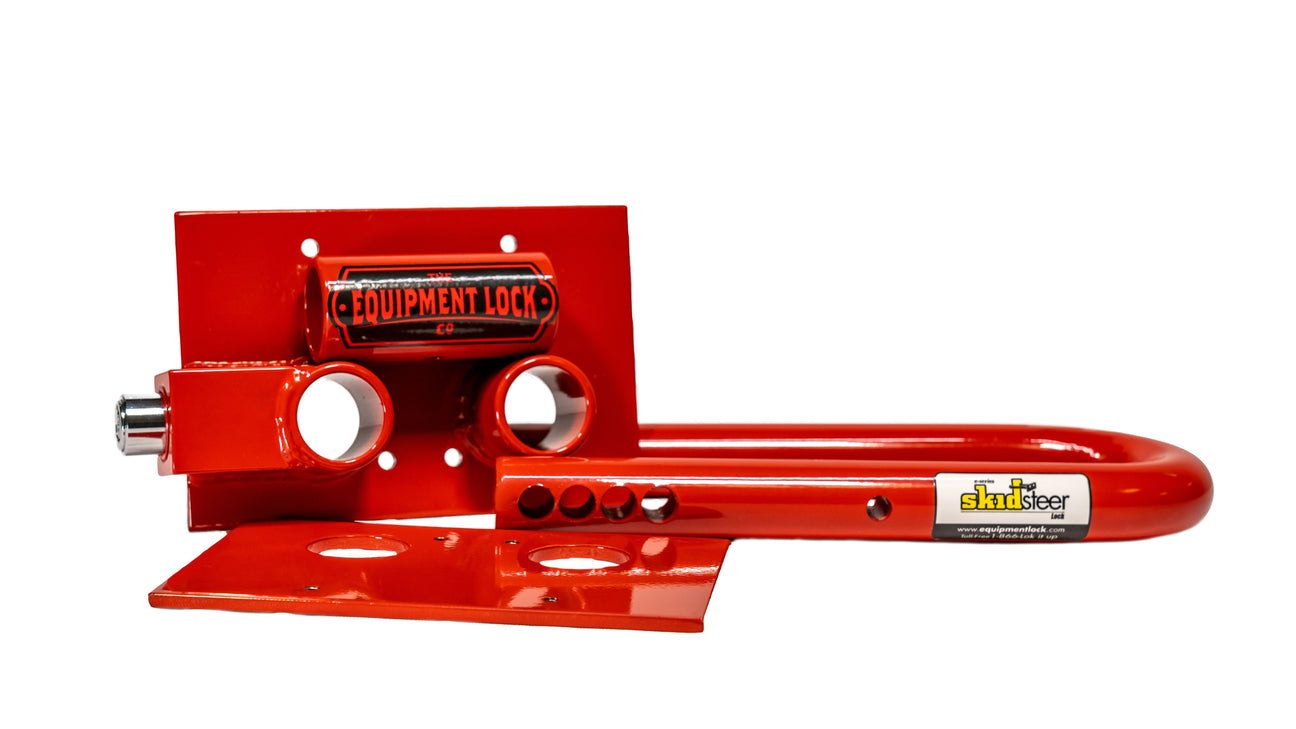

- Permanent cage mounting — two plates sandwich the cage and are fixed with four non-reversing stainless steel screws, so the mount cannot be unbolted from the outside and the lock never goes missing.
- Fits where the standard lock cannot — it mounts to the cage instead of passing through it, which is what makes it the answer on JCB Robot, Kubota, Takeuchi and Thomas machines.
- Enclosed-cab installation designed in — the 3/16 in mounting plate goes inside the cab so the window glass slides past it while the machine is working.

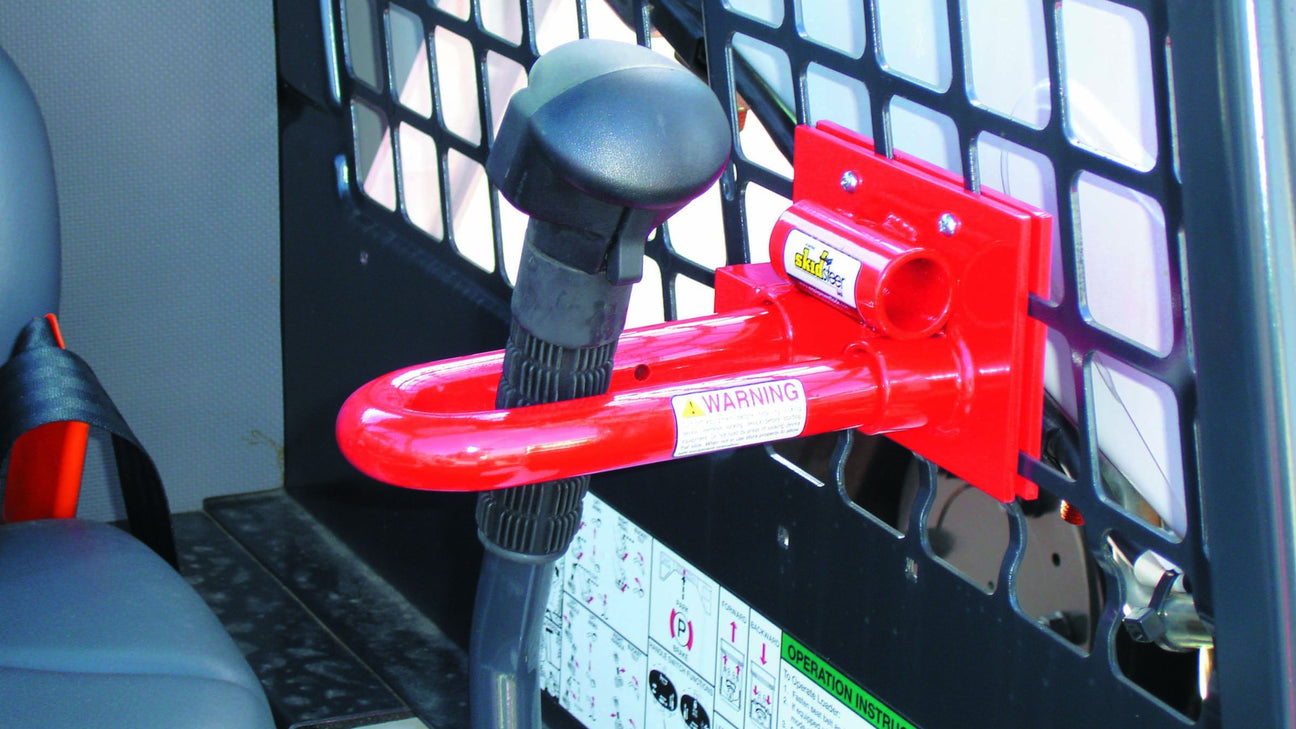

- U-bar captures the control lever — the bar closes around one drive control and locks into the fixed plate, immobilising steering on that side.
- Barrel-style key cylinder — resists picking, Freon attack and corrosion, and the body is built to take thousands of pounds of force rather than shear off under a pry bar.
- Powder-coated steel throughout — the finish survives being thrown in a truck bed daily and does not rust through a season parked outside.
🔑 Why Fleets Choose the E-Series Skid Steer Lock
- The lock is always on the machine — because the plate is permanently fitted, security does not depend on someone carrying a separate bar out to the loader at the end of a shift.
- Covers the machines nothing else fits — four brands cannot take the through-the-cage lock at all, so for those fleets this is security or nothing.
- Does not interfere with daily operation — the mounting plate sits behind the glass line, so the cab still works normally with the lock off.
- One key across the yard — Keyed Alike matches your existing five-digit code so the E-Series opens with the same key as the rest of your Equipment Lock hardware.
- Defeats the circle-driving problem — immobilising a single control leaves the loader steerable only in place, which is useless to a thief with a trailer waiting.
📊 E-Series Skid Steer Lock Specifications
| Specification | Value |
|---|---|
| Dimensions | 12 x 7 x 4 in |
| Mounting plate thickness | 3/16 in |
| Fixings | Four non-reversing stainless steel screws |
| Material | Hardened steel |
| Finish | Powder coat |
| Lock type | Barrel-style key cylinder, or four-digit combination |
| Keys supplied | Two per lock |
| Part numbers | Keyed unit ESL, combination unit ESL-C |
| Warranty | One year against manufacturer defects |
| Origin | Made in USA |
📋 E-Series Skid Steer Lock Keying Options
The lock body and mounting hardware are identical across all three — only the cylinder changes.
| Keying option | When to choose it on the E-Series Skid Steer Lock |
|---|---|
| Keyed Differently | Each lock gets its own unique key and no key code is kept on file. Choose this when access needs to stay tightly controlled. |
| Keyed Alike | Your key code is kept on file so every future Equipment Lock you buy opens with the same key. If you already have a code on file, select Keyed Alike and enter your assigned key code at checkout. |
| Combination Lock | A four-digit combination replaces the key entirely — the practical choice when several people need access and spare keys go missing. |
Two keys ship with every E-Series Skid Steer Lock at no charge. Additional keys can be added on the product page in packs of 2, 5 or 10 if more people on the crew need access.
🚜 Which Skid Loaders Take the E-Series Skid Steer Lock?
The E-Series mounts to the protective cage rather than passing through it, so it fits machines the standard Skid Steer Lock cannot. It captures one drive control lever.
| Machine | E-Series fitment |
|---|---|
| JCB Robot, Kubota, Takeuchi, Thomas | Required — these machines cannot use the standard Skid Steer Lock |
| Gehl, Mustang, ASV, Terex, Belle without cage holes | Required — the through-the-cage lock has nothing to pass through |
| Enclosed cabs | Fits — locking plate outside the cab, mounting plate inside, glass slides past |
| Open-cab loaders with cage holes | Fits — though the standard Skid Steer Lock is the non-permanent alternative here |
Because the plate is fixed with non-reversing screws, decide before installing which machine in the fleet it belongs to — it is not intended to be moved between loaders.
Installation is permanent. Confirm the cage section below your drive controls will take the two-plate mount before ordering, and note that Caterpillar and John Deere enclosed cabs can carry obstructions at control level on some builds.
Everything needed to confirm fitment is on this page — add it to your cart to see delivered pricing for your address.
Inspect the shipment before you sign. If the carton or crate arrives damaged, note it on the bill of lading at the time of delivery — that note is what supports a carrier claim, and it cannot be added afterwards.
❓ E-Series Skid Steer Lock Questions, Answered
Should I order the E-Series Skid Steer Lock or the standard Skid Steer Lock?
Order the E-Series where the protective cage has no holes below the drive controls, or where you want the lock permanently attached to one machine. JCB Robot, Kubota, Takeuchi and Thomas loaders must use the E-Series. The standard Skid Steer Lock is the choice where the cage has holes and you would rather the bar was removable.
Does the E-Series Skid Steer Lock work on an enclosed cab?
Yes. On an enclosed cab the E-Series locking plate is installed on the outside of the cab and the 3/16 in mounting plate on the inside, so the glass slides past it in normal operation. A window must be open while the lock is installed.
Is the E-Series Skid Steer Lock permanently attached to the machine?
The mounting plate is. It is secured with four non-reversing stainless steel screws that cannot be backed out, which is what stops the mount being removed by the person you are locking out. The U-bar itself unlocks and comes away.
How many drive controls does the E-Series Skid Steer Lock immobilise?
One. The U-bar captures a single drive control lever, which leaves the loader able to turn in place and nothing more. The standard Skid Steer Lock captures both.
How do I choose between Keyed Alike, Keyed Differently and a combination?
Keyed Alike keeps your five-digit key code on file, so every Equipment Lock you buy afterwards can be cut to the same key — one key for the whole yard. Keyed Differently keeps no code on file and each lock is unique, which is the tighter choice when you want access limited to one machine. If you already have a code, select Keyed Alike and enter it at checkout.
How do I set the code on the combination version of the E-Series Skid Steer Lock?
Combination units arrive set to 0-0-0-0 and you set your own four-digit code with the supplied key while the lock is open. There is deliberately no factory override code, so write the code down before you lock it — once it is locked with a forgotten code the internal components have to be replaced.
What does the E-Series Skid Steer Lock warranty cover?
Equipment Lock covers manufacturer defects for one year from purchase. Damage from a theft attempt, user error or modification falls outside that cover. Email support@eskidsteer.com with your order number to start a claim.
How is shipping calculated on the E-Series Skid Steer Lock?
Shipping is calculated at checkout. Add the E-Series Skid Steer Lock to your cart, enter your delivery address, and the shipping charge is shown before you complete the order.
