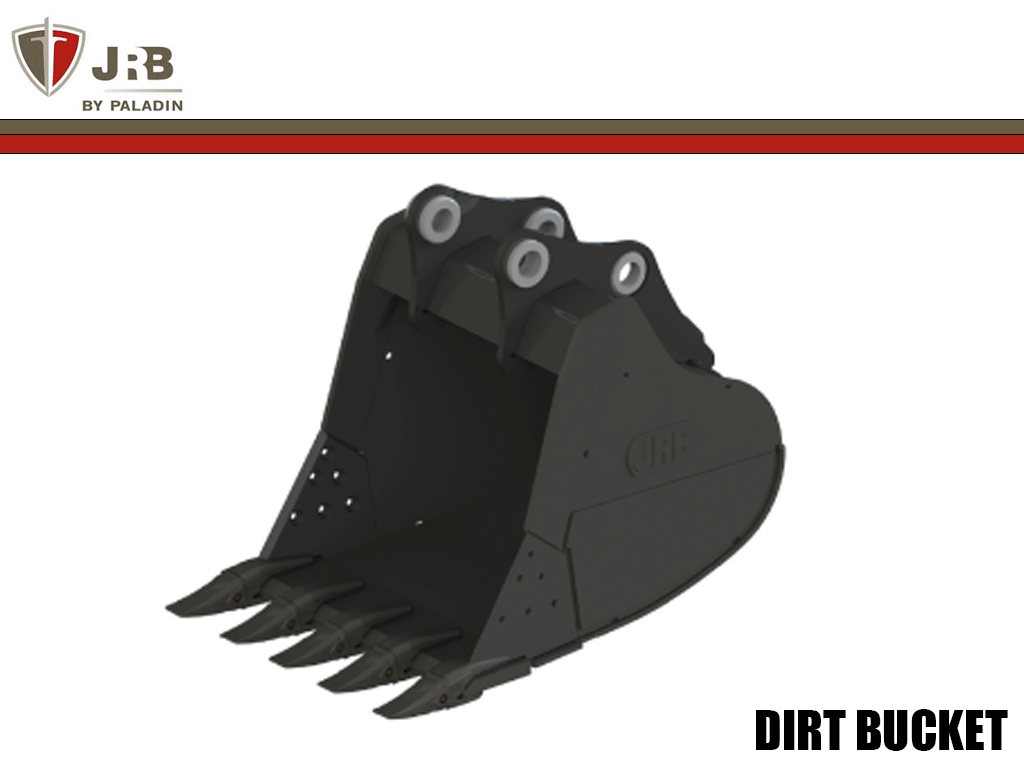

Dirt Buckets for 35 Metric Ton Class Excavators – JRB By Paladin

Dirt Buckets for 35 Metric Ton Class Excavators – JRB By Paladin

Vendor: Paladin Heavy
SKU: 35HE-30
Availability: In stock
$9,871.99
$10,859.99
$9,871.99
Style: JRB HEAVY DUTY
Size: 30"
Subtotal: $9,871.99

Free Shipping

This product is eligible for Free Shipping!
Dirt Buckets for 35 Metric Ton Class Excavators – JRB By Paladin

Dirt Buckets for 35 Metric Ton Class Excavators – JRB By Paladin

$10,859.99 $9,871.99

Dirt Buckets for 35 Metric Ton Class Excavators – JRB By Paladin

$10,859.99 $9,871.99
Style: JRB HEAVY DUTY
Size: 30"

Shop the Dirt Buckets for 35 Metric Ton Class Excavators – JRB By Paladin

Description:

JRB Heavy Duty buckets feature an optimized profile for better filling and dumping. Dual taper design provides better heel clearance for less resistance and wear during digging. Improved construction reduces weight up to 10% for larger payloads. Horizontal two pin mounting for stability and performance. JRB Continuous Edge Buckets feature improved construction to reduce weight up to 10% for larger payloads. Optimized profile for better filling and dumping. Dual taper design provides enhanced heel clearance for less resistance and wear during digging. One-piece header design improves load distribution and durability. Strategic placement of AR400 wear material in the cutting edge, side cutter and bottom corner to reduce wear. Teeth are spaced as tightly as possible to present a continuous edge. Corner teeth are straight and inline with the center teeth. Equipped with Flare/Spade teeth.

Specifications:

TYPE WIDTH CAPACITY TEETH WEIGHT
HD 30 1.07 3 239
HD 36 1.37 4 283
HD 42 1.66 4 346
HD 48 1.96 5 402
HD 54 2.27 5 466
HD 60 2.58 6 150
HD 66 2.87 6 185
HD 72 3.17 7 220
CE 30 1.07 4 2501
CE 36 1.37 4 2627
CE 42 1.66 5 2895
CE 48 1.96 6 3164
CE 54 2.27 7 3432
CE 60 2.58 7 3632
CE 66 2.87 8 3901
CE 72 3.17 9 4649

Fits:

MAKE MODELS
CASE CX350C, CX350D
CAT 330D, 336E/F
DEVELON DX340, DX350-5/7
HITACHI ZX350-6, ZX380-6
HYUNDIA R320, R330-9A, R360, R380-9A, HX330L, HX380L
JCB JS330, JS360
JOHN DEERE 350G, 380G, 350P, 380P
KOBELCO SK350-10
KOMATSU PC360-10/11, HB365-1/3, PC390-10/11
LIEBHERR R934, R936
LINK BELT 350 X3/X4
LIUGONG 936E
LONKING CDM6365
SANY SY335C, SY365C
VOLVO EC350E, EC360, EC380E
XCMG XE360C
