Capacity
1.2 – 1.8 cu yd
Two Depths
1454 at 2 ft deep
Max load capacity
4,000 lb
Guaranteed Fit
Fast Shipping
Hassle-Free Returns
Description
🏭Made in USA since 1981
🔒5-year factory guarantee
🔨10-gauge steel, 1/4 in angle reinforced
📘 Overview

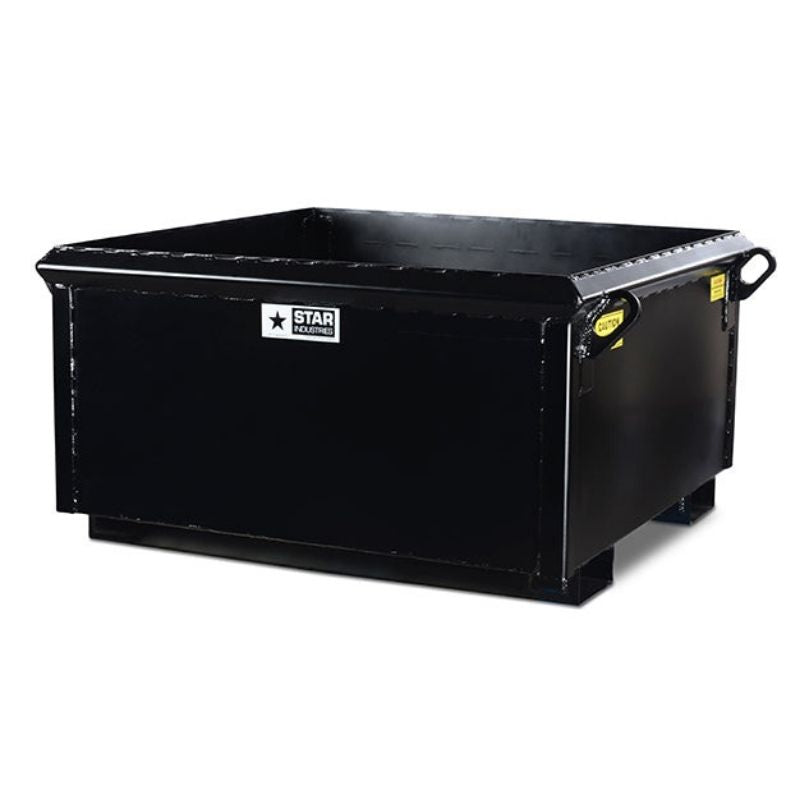

A Star Industries crane lift box raises and lowers supplies, materials and small equipment to a working level, with four-point lift eyes so the load hangs square rather than swinging on a single point. Two depths are offered: the 1454 at 2 ft deep holding 1.2 cubic yards, and the 1455 at 3 ft deep holding 1.75 cubic yards. Both are rated 4,000 lb. The shell is 10-gauge steel heavily reinforced with 1/4 inch angle, and both come with fork pockets as standard so a forklift can position the box before or after the crane lift. Rigging is not included and must be rated for the load plus the empty weight of the box.
⚙ Key Features of the Star Industries Crane Lift Box
- Two depths: 1454 at 2 ft deep (1.2 cu yd) and 1455 at 3 ft deep (1.75 cu yd)
- Maximum load capacity 4,000 lb on both
- 1454 dimensions 57 in L x 51 in W x 27 3/8 in H
- 1455 dimensions 57 in L x 52 in W x 39 3/16 in H
- Four-point crane lifting eyes so the load hangs square
- Fork pockets fitted as standard for handling with a forklift
- Fork pocket ID 3 1/8 in H x 8 1/4 in W, spaced 31.5 in on centre
- Shell built from strong 10-gauge steel, heavily reinforced with 1/4 in angle
- Rigging not included — must equal or exceed the rated load plus the empty weight of the box
- Screw pin anchor shackles recommended for attaching slings
- A crane box and material lifting box that a forklift can also handle
- A crane lifting box and below the hook box for supplies and small equipment
- A construction lifting box and material handling box rated 4,000 lb
- 5-year factory guarantee, made in the USA since 1981
🔑 Why Buyers Choose the Star Industries Crane Lift Box
- Four-point lift keeps the load level — a box on a single pick swings and tips as it clears an edge. Four eyes hold it square, which is what makes it usable for loose supplies rather than only for banded loads.
- Fork pockets mean two machines can handle it — the crane takes it up, and a forklift loads and positions it at ground level. Without pockets, every movement needs the crane.
- Depth rather than footprint is the choice — both boxes are 57 inches long and roughly 51 inches wide; the 1455 is a foot deeper for 1.75 cu yd against 1.2. Choosing the deeper box does not cost you floor space at the landing.
- 10-gauge shell reinforced with 1/4 inch angle — the angle is at the rim and corners, which is where a box that is repeatedly loaded with dropped material fails first.
- Rigging is deliberately not supplied — sling ratings have to be chosen against the load and the box weight together, and site rigging requirements vary. Star recommends screw pin anchor shackles and can supply rigging if needed.
📊 Star Industries Crane Lift Box Specifications
| Specification | Model 1454 (2 ft deep) | Model 1455 (3 ft deep) |
|---|---|---|
| Dimensions | 57 in L x 51 in W x 27 3/8 in H | 57 in L x 52 in W x 39 3/16 in H |
| Capacity | 1.2 cu yd | 1.75 cu yd |
| Max load capacity | 4,000 lb | 4,000 lb |
| Fork pocket ID | 3 1/8 in H x 8 1/4 in W | 3 1/8 in H x 8 1/4 in W |
| Fork pockets on centre | 31.5 in | 31.5 in |
| Lifting | Four-point crane eyes | Four-point crane eyes |
📋 Crane Lift Box Options at Checkout
| Option as shown at checkout | What you get |
|---|---|
| Crane Lift Box 2' H x 4' W x 4' L | 1454 — 1.2 cu yd, 57 in L x 51 in W x 27 3/8 in H, 4,000 lb |
| Crane Lift Box 3' H x 4' W x 4' L | 1455 — 1.75 cu yd, 57 in L x 52 in W x 39 3/16 in H, 4,000 lb |
🔗 Rigging Requirements for the Crane Lift Box
Rigging for the 1454 and 1455 is not included, and this is deliberate: the slings have to be rated for the load you intend to lift plus the empty weight of the box itself, and that total depends on what you are carrying. Star recommends screw pin anchor shackles to attach slings to the four lifting eyes, and can supply rigging if needed. Fork pockets are fitted as standard, so a forklift can load and position the box at ground level without any rigging attached.
🚜 Which Cranes and Forklifts Fit This Crane Lift Box?
The box is a below-the-hook item, so there is no machine mount — it hangs from four lifting eyes on rigging you supply. Rated load capacity is 4,000 lb on both models, and the governing limit is whichever is lowest of that rating, your rigging rating and the crane capacity at the radius you are working at. Remember the empty weight of the box counts against all three. For ground-level handling, fork pockets measuring 3 1/8 inches high by 8 1/4 inches wide at 31.5 inches on centre accept a standard forklift.
| Requirement | Detail |
|---|---|
| Crane attachment | Below the hook — four-point lifting eyes, rigging supplied by you |
| Rated load capacity | 4,000 lb on both models |
| Rigging rating required | Equal to or greater than rated load plus the empty weight of the box |
| Recommended hardware | Screw pin anchor shackles |
| Forklift handling | Fork pockets 3 1/8 in H x 8 1/4 in W, 31.5 in on centre |
❓ Star Industries Crane Lift Box Questions, Answered
Is rigging included with the crane lift box?
No. Rigging for the 1454 and 1455 is not included, because sling ratings must be chosen against your intended load plus the empty weight of the box. Star recommends screw pin anchor shackles for attaching slings to the lifting eyes and can supply rigging if needed.
Which crane lift box size should I choose?
Both are 57 inches long and about 51 inches wide; the difference is depth. The 1454 is 2 ft deep at 1.2 cu yd and the 1455 is 3 ft deep at 1.75 cu yd. Both are rated 4,000 lb, so the deeper box gives more volume without taking more space at the landing.
Can a forklift handle the crane lift box?
Yes. Fork pockets are fitted as standard, measuring 3 1/8 inches high by 8 1/4 inches wide at 31.5 inches on centre. That lets a forklift load and reposition the box at ground level without rigging attached.
Why does it have four lifting eyes rather than one?
A four-point pick holds the box square. A single-point lift lets a box swing and tip as it clears an edge, which matters when the contents are loose supplies rather than a banded load.
What is the box made from?
A strong 10-gauge steel shell tub, heavily reinforced with 1/4 inch angle. The angle runs at the rim and corners, which is where repeated loading and dropped material cause failures.
How much can the crane lift box carry?
Both models are rated 4,000 lb maximum load capacity. The actual limit is the lowest of that rating, your rigging rating and the crane capacity at the working radius — and the empty weight of the box counts against all three.
What is the difference between a crane lift box and a trash skip?
A lift box is for raising and lowering supplies, materials and small equipment to a working level. A crane skip is designed to be loaded with waste and tipped from the sloped end by slackening the forward slings. Choose the box for delivery up and the skip for waste down.
What warranty comes with the crane lift box?
The Star Industries crane lift box carries a 5-year factory guarantee and is made in the USA.
How do I order and how is shipping calculated?
Add the box to your cart on eskidsteer.com and complete checkout online. Shipping is calculated at checkout once you enter your delivery address, with lift gate service available for residential deliveries.
📥 Star Industries Crane Lift Box Downloads
