Capacity
Frame / 6,000 lb
Models available
3 variants
Description
King post frame
Guaranteed Fit
Fast Shipping
Hassle-Free Returns
Description
🏭Made in USA since 1981
🔒1-year warranty
⚙Self-levelling pickup trolley
📘 Overview

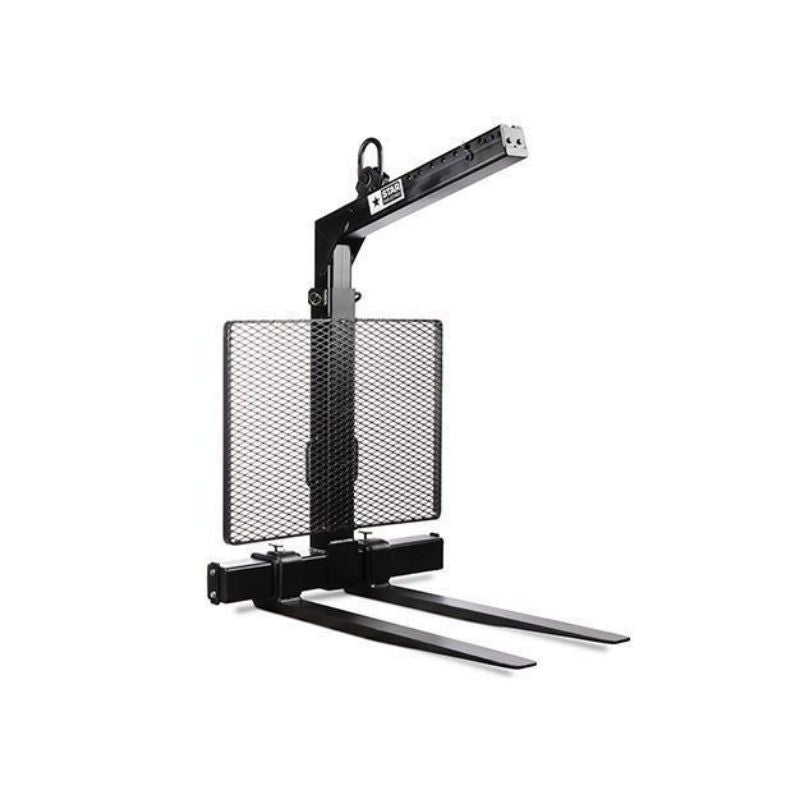

Star Industries crane forks turn a crane into a forklift for the length of one lift. The 660 king post frame needs no cables or pulleys — a self-shifting spring-loaded pickup trolley keeps the forks level when empty and holds the payload centre of gravity when loaded, so the load stays flat without rigging adjustment. The adjustable stop accepts 36, 40 and 48 inch pallets, forks spread up to 40 inches out to out, and a 40 inch backstop stabilises the load. Two tine sets are offered — general purpose forged forks for pallets, or a six-fork block set for cubed and banded masonry.
⚙ Key Features of the Star Industries 660 Crane Forks
- 660 king post frame with backstop — available frame only, or with either tine set
- Self-shifting spring-loaded pickup trolley keeps forks level empty and centred loaded
- No cables or pulleys required
- Trolley accommodates up to a 5-ton hook
- King post adjusts for load heights from 48 in to 68 in
- Adjustable stop accepts 36, 40 and 48 in pallets
- Forks spread up to 40 in out to out
- 40 in wide backstop helps stabilise the load
- Built-in vertical post handles guide the forks into the load
- General purpose tines 660-01: set of 2 forged forks, 1.5 in x 4 in x 46 in, 6,000 lb
- Block tines 660-02: set of 6 forged forks, 1.5 in x 2 in x 47 in, 6,000 lb
- A crane fork attachment and below the hook forks assembly rated to 6,000 lb
- Crane pallet forks and crane lifting forks on one king post forks frame
- Block tine set doubles as brick forks crane crews use for banded cube
- 1-year warranty on crane forks, made in the USA since 1981
🔑 Why Buyers Choose the Star Industries 660 Crane Forks
- The trolley levels the forks without any rigging — a spring-loaded self-shifting pickup keeps empty forks level and moves to hold the payload centre of gravity when loaded, so the operator is not chasing balance with slings between picks.
- A minimum load of 1,500 to 1,750 lb is required for the trolley to work — this is the one constraint people meet in practice. Below that weight the trolley will not shift properly, so very light picks are not what this attachment is for.
- Six block tines instead of two — cubed and banded block spreads its weight across the whole base, and the 660-02 set of six spreads the support to match rather than concentrating it on two points.
- King post adjusts 48 to 68 inches — load height changes with what you are lifting, and adjusting the post rather than the rigging keeps the hook height consistent through a day of mixed picks.
- Vertical post handles guide the forks in — a suspended load cannot be steered with the crane alone, so built-in handles are what let a banksman line the tines up with the pallet.
📊 Star Industries 660 Crane Forks Specifications
| Model | Description | Capacity |
|---|---|---|
| 660 | King post frame with backstop, supplied frame only | Frame |
| 660-660-01 | Frame with general purpose tines — 2 forged forks, 1.5 in x 4 in x 46 in | 6,000 lb |
| 660-660-02 | Frame with block tines — 6 forged forks, 1.5 in x 2 in x 47 in | 6,000 lb |
📋 Crane Fork Options at Checkout
| Option as shown at checkout | What you get |
|---|---|
| Frame | The 660 king post frame with backstop — common to every option below |
| Frame Only | 660 — king post frame supplied on its own, for a yard that already owns tines |
| Crane Fork Tines 1.5" x 4" x 46" Set of 2 with Frame | 660-660-01 — frame plus two general purpose forged forks, 6,000 lb, for standard pallets |
| Crane Fork Tines 1.5" x 2" x 47" Set of 6 with Frame | 660-660-02 — frame plus six block forks, 6,000 lb, for cubed and banded masonry |
🔗 Choosing Between General Purpose and Block Tines
The 660 is sold three ways: frame only, or frame supplied with one of two tine sets, which suit different loads. The 660-01 general purpose set is two forged forks at 1.5 in x 4 in x 46 in — the right choice for standard 48 inch pallets and the widest range of materials. The 660-02 block set is six forged forks at 1.5 in x 2 in x 47 in, adapted for cubed or banded block where spreading the support across six points prevents the cube breaking up in the air. Both sets are rated 6,000 lb. Frame and tines are listed separately so an existing 660 frame can take a second tine set.
🚜 Which Cranes Fit These Crane Forks?
The 660 hangs below the hook, so what matters is hook size and load rather than a machine mount. The trolley accommodates up to a 5-ton hook and the assembly is rated 6,000 lb with either tine set. The king post adjusts for load heights between 48 and 68 inches. One requirement is easy to miss: a minimum load of 1,500 to 1,750 lb is needed for the trolley to operate correctly, so the 660 is not suited to very light picks. Confirm the crane rated capacity at the radius you are working at, and remember the frame and tine weight count against it.
| Requirement | Detail |
|---|---|
| Attachment | Below the hook — no machine mount required |
| Maximum hook size | 5 ton |
| Rated capacity | 6,000 lb with either tine set |
| Minimum load | 1,500 to 1,750 lb required for correct trolley operation |
| Load height range | King post adjusts 48 in to 68 in |
| Pallet sizes | Adjustable stop accepts 36, 40 and 48 in pallets |
❓ Star Industries 660 Crane Forks Questions, Answered
Do crane forks need cables or pulleys?
No. The Star Industries 660 uses a self-shifting spring-loaded pickup trolley instead. It keeps the forks level when empty and moves to hold the payload centre of gravity when loaded, so no rigging adjustment is needed between picks.
Is there a minimum load for crane forks?
Yes, and it catches people out. A minimum load of 1,500 to 1,750 lb is required for the trolley to operate properly. Below that the trolley will not shift as designed, so the 660 is not the right tool for very light picks.
Should I choose general purpose or block tines?
The 660-01 general purpose set is two forged forks at 1.5 in x 4 in x 46 in and handles the widest range of materials, including standard 48 inch pallets. The 660-02 block set is six forged forks at 1.5 in x 2 in x 47 in, spreading support across six points for cubed or banded block.
What pallet sizes will the 660 handle?
The adjustable stop accepts 36, 40 and 48 inch pallets, and the forks spread up to 40 inches out to out. A 40 inch wide backstop helps stabilise the load against the frame.
What size crane hook does the trolley take?
The trolley accommodates up to a 5-ton hook. The assembly itself is rated 6,000 lb with either tine set, and your crane rated capacity at the working radius is the governing limit.
Can I buy the crane fork frame on its own?
Yes. Frame Only is a checkout option, which suits a yard that already owns tines or wants to add a second tine set later. The two tine sets are otherwise supplied together with the frame as a complete assembly.
How does the operator line the forks up with a load?
Built-in vertical post handles are provided to guide the forks into the load. A suspended assembly cannot be steered with the crane alone, so the handles are what allow a banksman to position the tines accurately.
How high can the king post be set?
The king post adjusts for load heights from 48 inches to 68 inches, so hook height stays consistent across loads of different heights without re-rigging.
What warranty comes with crane forks?
Star Industries crane forks carry a 1-year warranty on the crane fork assembly, in line with Star warranty terms for crane forks, and are made in the USA.
How do I order and how is shipping calculated?
Add the frame and your chosen tine set to your cart on eskidsteer.com and complete checkout online. Shipping is calculated at checkout once you enter your delivery address, with lift gate service available for residential deliveries.
