Mounting method
Smaller quick 'tach
Rotation
200°
Machine type
Mini track loader
Guaranteed Fit
Fast Shipping
Hassle-Free Returns
Description
🏭Made in USA
📘 Overview

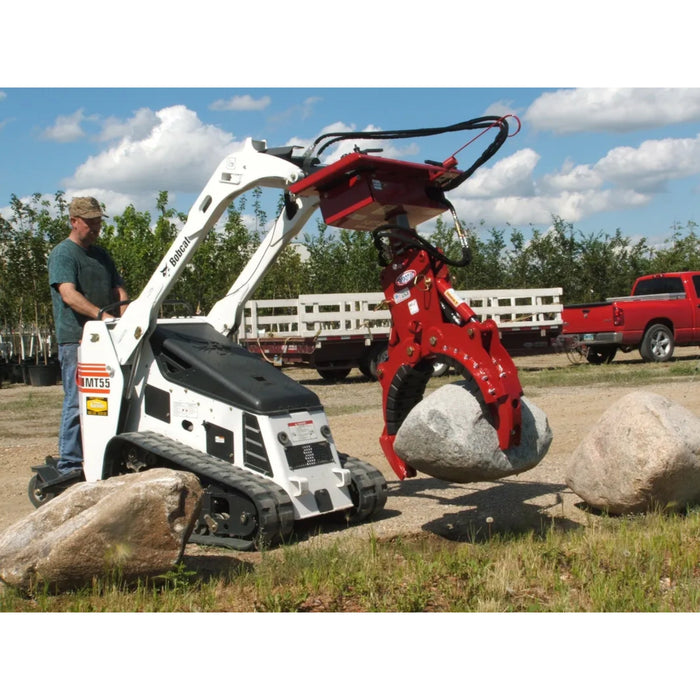

A mini track loader rotating base, not a skid steer one. The EZ Spot UR Compact Utility Rotator (EZ-00CR) is a rotating attachment base for mini track loaders and compact utility loaders — not full-size skid steers. It mounts on the smaller quick 'tach plate, 23-9/16 inches wide with pin holes 14-9/16 inches centre to centre, and turns any EZ Spot UR tool head with a 3-inch square receiver through 200 degrees, driven by a single 3 x 9.5 inch cylinder working a rack and pinion with 21,206 lb of breakout force. Tool heads change by pulling one 3/4-inch pin, so a single base turns a mini loader from a bucket machine into a carrier for poles, rocks and trees.
⚙ Key Features of the Compact Utility Rotator
- 200 degrees of rotation — a wider arc than the full-size Double Cylinder Rotating Base offers, from a smaller package.
- Rack and pinion drive — one 3" x 9.5" cylinder with 21,206 lb of breakout force turns the shaft, rather than a pair of opposed cylinders.
- Two tapered roller bearings carry the shaft for smooth rotation under load.
- Single-pin tool changes — pull the 3/4" pin and slide a different EZ Spot UR tool head onto the shaft.
- Grade 50 steel, core welded.
- Ships complete with hoses, flush-faced couplers, spring hose mount and wiring harness.
🔑 Why Mini Loader Owners Choose the Compact Utility Rotator
- Unlocks the EZ Spot UR range on a small machine — tool heads that would otherwise need a full-size skid steer become usable on a mini track loader.
- More rotation than the full-size base — 200 degrees against 127, so placement is finer on the machine with less reach to spare.
- One base, many tools — the cost of the base is spread across every tool head you own.
- Keeps lift capacity for the load — a compact base leaves more of a small machine's rated capacity available for what is actually being carried.
📊 Compact Utility Rotator Specifications
| Specification | Value |
|---|---|
| Machine type | Mini track loader or compact utility loader |
| Mounting method | Smaller quick 'tach, 23-9/16" wide |
| Pin hole spacing | 14-9/16" centre to centre |
| Rotation | 200° |
| Rotation cylinder | 1 × 3" bore x 9.5" stroke, rack and pinion |
| Cylinder breakout force | 21,206 lb |
| Bearings | Two tapered roller bearings |
| Tool head interface | 3" square receiver on a 2.94" square shaft, 3/4" pin |
| Construction | Grade 50 steel, core welded |
| Supplied with | Hoses, flush-faced couplers, spring hose mount, wiring harness |
🔗 Which Tool Heads Fit the Compact Utility Rotator?
The Compact Utility Rotator accepts any EZ Spot UR tool head built with a 3" square female receiver — the same interface used by the full-size bases. On a mini track loader, lighter tool heads leave more of the machine’s lift capacity available for the load, so match the head to the machine rather than to the base. Changing heads takes one 3/4" pin.
🚜 Which Machines Take This Mini Track Loader Rotating Base?
The Compact Utility Rotator is built for mini track loaders and compact utility loaders using the smaller quick 'tach mount standard — not the full-size skid steer plate. Fitment is decided by two dimensions:
| Mount dimension | Requirement |
|---|---|
| Quick 'tach width | 23-9/16" |
| Pin hole spacing | 14-9/16" centre to centre |
Mini track loader mounts are not interchangeable with full-size skid steer quick attach plates. Measure your machine’s mount width and pin spacing against the table above before ordering. Everything needed to confirm fitment is on this page — add it to your cart to check delivered pricing for your address.
Freight note: inspect the crate before signing the carrier’s Bill of Lading. Note any damage on the delivery paperwork at the time of delivery — that record is what supports a carrier claim.
❓ Compact Utility Rotator Questions, Answered
Will the Compact Utility Rotator fit my skid steer?
No. The Compact Utility Rotator is built for the smaller mini track loader quick 'tach, 23-9/16 inches wide with 14-9/16 inch pin spacing. It is not interchangeable with a full-size skid steer quick attach plate. For a full-size machine, the Double Cylinder Rotating Base or Fixed Non-Rotating Base is the correct choice.
How far does the Compact Utility Rotator rotate?
200 degrees, driven by a single 3 x 9.5 inch cylinder through a rack and pinion. That is a wider arc than the 127 degrees offered by the full-size Double Cylinder Rotating Base.
Which tool heads work with the Compact Utility Rotator?
Any EZ Spot UR tool head with a 3-inch square female receiver mounts on the Compact Utility Rotator. Because a mini track loader has less lift capacity than a full-size skid steer, choose a lighter tool head so more of the machine's rated capacity is left for the load itself.
How do I change tool heads on the Compact Utility Rotator?
Pull the 3/4-inch pin out of the shaft, slide the current tool head off and the new one on, then refit the pin. No tools beyond the pin are needed.
Does the Compact Utility Rotator come with hoses and a harness?
Yes. The Compact Utility Rotator ships complete with hydraulic hoses, flush-faced couplers, a spring hose mount and a wiring harness.
How is the Compact Utility Rotator shipped?
Shipping is calculated at checkout — add the Compact Utility Rotator to your cart, enter your delivery address, and the freight charge is displayed before you complete the order. Lift gate service is available for residential deliveries and can be selected at checkout.
