Description
📘 Overview

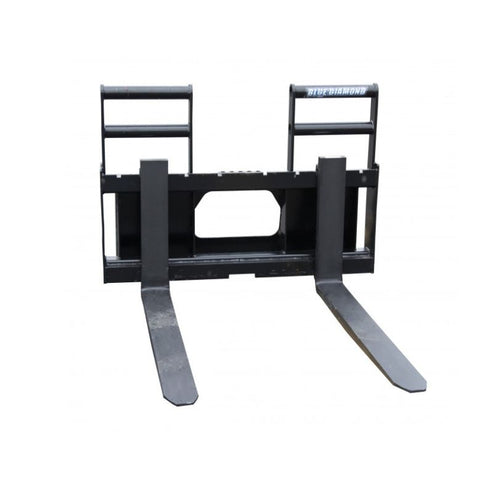

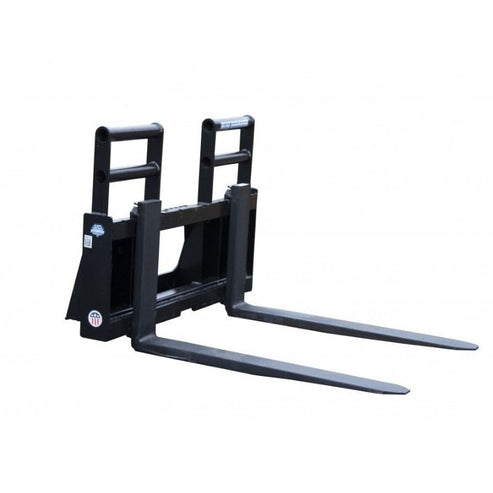

The Blue Diamond Class 3 Heavy Duty Pallet Forks are 10,000 lb-capacity skid steer pallet forks for the heaviest lifting. They mount to a universal skid steer quick-attach interface on a 50″ wide frame, built to move maximum weight on construction sites, in yards, and across agricultural operations.
This listing covers tine lengths from 48″ to 96″, so you match reach to your loads. Longer tines handle wide pallets, building materials, and bundles; the wide 50″ frame and Class 3 rating provide the strength for serious weight.
As class 3 pallet forks skid steer operators choose for demanding work, these are true 10000 lb pallet forks skid steer units. The blue diamond class 3 pallet forks use a back-rest design that fits multiple applications, and as heavy duty pallet forks skid steer 10000 lb-rated tools, they handle loads that lighter forks can't safely lift.
The 50″ wide frame keeps heavy loads stable, and the versatile backrest supports tall and irregular loads during transport and stacking.
⚙ Class 3 Pallet Fork Features
- 10,000 lb capacity
- 48″ to 96″ tine lengths available
- Back rest design fits multiple applications
- 50″ wide frame
- Universal skid steer quick-attach mount
🔑 Why Choose the Blue Diamond Class 3 Pallet Forks
- 10,000 lb capacity for the heaviest loads — the Class 3 rating handles weights that overload standard forks, so you lift with a real margin of strength.
- Tine lengths to 96″ — reach under the widest pallets, trusses, and building materials, or choose shorter tines for tighter work.
- 50″ wide frame stabilizes loads — the wide frame keeps heavy, wide loads steady during lifting and transport.
- Versatile backrest — the back-rest design supports multiple load types and stabilizes tall loads.
- Built for daily heavy use — Class 3 construction is made for continuous industrial and construction material handling.
🔄 Skid Steer Pallet Forks Variant Specifications
| Part Number | Tine Length | Weight |
|---|---|---|
| 314150 | 48" Tine Length | 517 lbs |
| 314155 | 60” Tine Length | W/60” X 2” X 5” X 1 3/4” X 5” | 758 lbs |
| 314160 | 72" Tine Length | 828 lbs |
| 314165 | 84" Tine Length | 848 lbs |
| 314167 | 96" Tine Length | 875 lbs |
🚜 Machine Compatibility

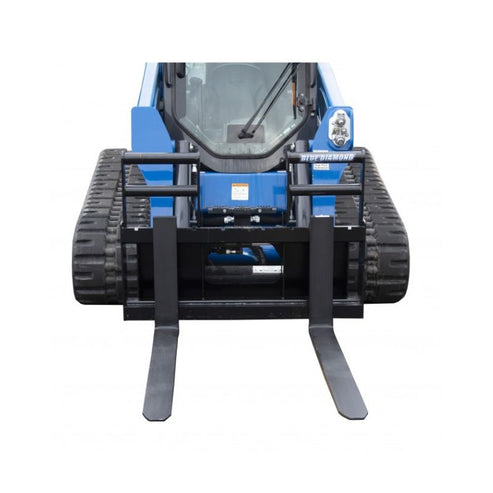

Compatible with skid steer loaders and compact track loaders equipped with a Universal Quick Attach system, including:
Bobcat
Caterpillar
John Deere
Case
New Holland
Takeuchi
Kubota
Gehl
Compatibility is determined by mount type, not brand — confirm your machine's quick attach configuration before ordering. Not sure it fits your machine? Contact eskidsteer.com at (866) 757-8337.
❓ Frequently Asked Questions
Q: What does the 10,000 lb capacity mean for me?
It's the forks' structural rating — they can carry up to 10,000 lbs without deforming. Your actual lifting limit is whichever is lower, the forks' rating or your machine's rated operating capacity. On most skid steers the machine is the limiting factor, but the Class 3 rating means the forks won't be the weak link.
Q: What tine length should I choose?
Lengths run 48″ to 96″. Longer tines reach under wide pallets, trusses, and building bundles; shorter tines maneuver more easily in tight spaces. Match to your typical load width.
Q: How are these different from the D-Ring forks?
The Class 3 forks are rated to a higher 10,000 lb capacity for maximum weight. The D-Ring forks add a rated rigging point and tall-frame stability at a lower capacity. Choose Class 3 for the heaviest lifting, D-Ring if you need the rigging point.
Q: Will they fit my machine?
They mount to any skid steer or compact track loader with a universal quick-attach plate. The 50″ wide frame is standard; confirm your machine's operating capacity so you lift within its limit.
Q: How is shipping calculated?
Shipping is calculated at checkout — add the item to your cart, enter your delivery address, and the shipping charge is displayed before you complete your order. Lift gate service is available for residential deliveries and can be selected at checkout.
Q: How do I order?
Add the item to your cart directly on eskidsteer.com and complete checkout online. Have your machine make, model, and serial number ready to confirm fitment before ordering. If you have a fitment question before purchasing, call us at (866) 757-8337.
Q: What does a Class 3 rating mean?
Class 3 refers to the carriage size and pin diameter used on larger forklifts and loaders, rated here to 10,000 lbs. The heavier carriage and thicker tines let these forks handle industrial loads that would overstress lighter Class 2 forks, making them suited to lumber yards, block, and heavy palletized freight.
