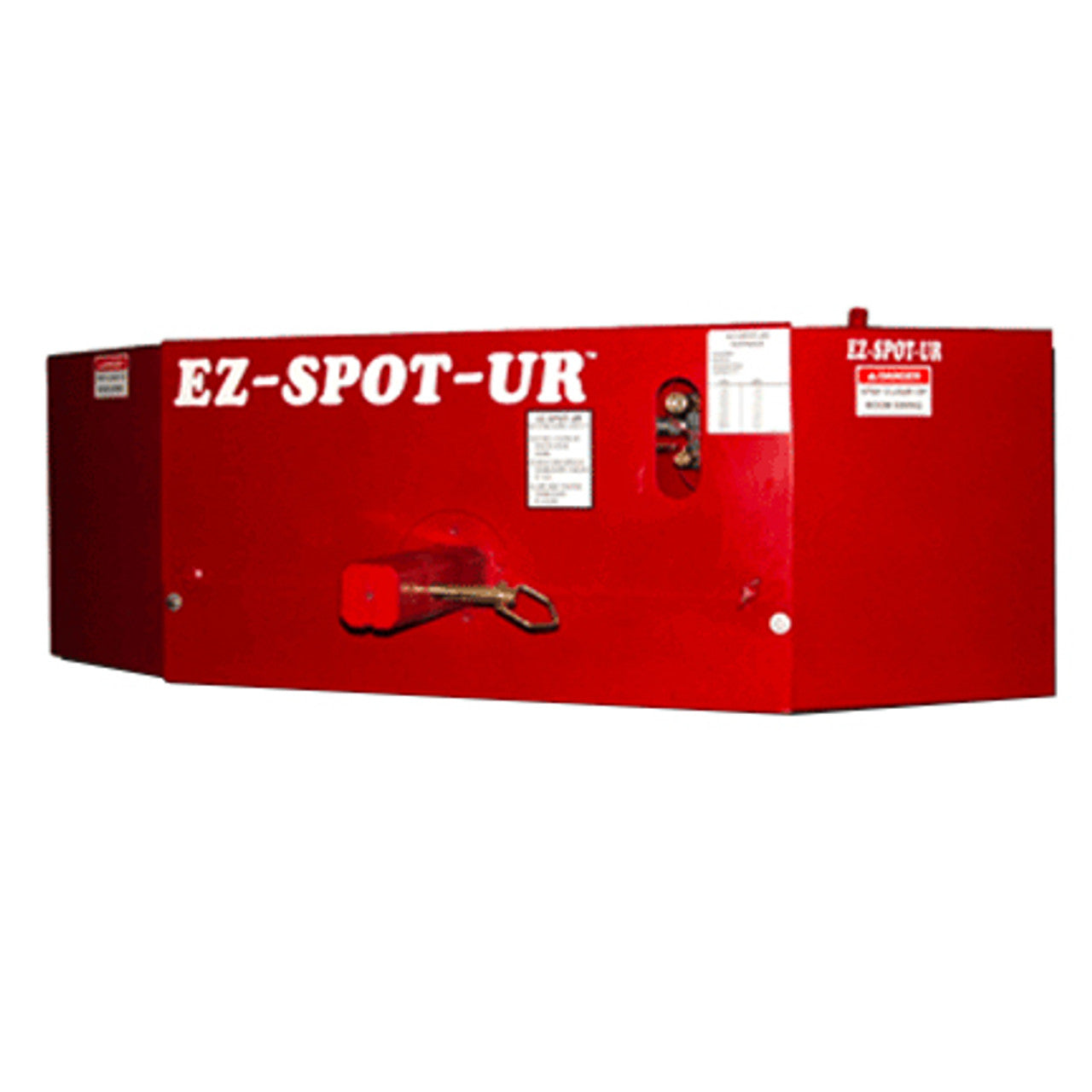

Chain Rotating Attachment Base - EZ Spot UR

Shop the Chain Rotating Attachment Base - EZ Spot UR

Description:
Unlock unparalleled flexibility with EZ SPOT UR's Chain Rotating Attachment Base, explicitly designed for the Barrel Handler. Featuring a powerful hydraulic motor and 350° non-continuous rotation, this attachment base ensures elite performance and significant cost savings. Perfect for seamless integration with various machines.

Specifications:

• Attaches to skid steers or machines with a Universal Quick 'Tach mounting system
• Base weight: 420 lbs, with a 2.94" 4140 square shaft
• Secured with a 3/4" pin
• Hydraulic motor-powered shaft rotation
  • Displacement: 9.7 cubic inches per revolution
  • Torque: 2059 in-lb at 1650 ΔPSI
• Shaft rotation: 350° non-continuous (175° left, 175° right)
• Double 40 chain sprocket: 5.75" diameter
• Two tapered roller bearings for smooth operation
• Grade 50 steel construction, core welded for durability
• Comes with hoses, flush-faced couplers, spring hose mount, and wiring harness
• Adaptable for excavators, wheel loaders, telehandlers, and backhoes (special bolt-on mount required)
