Auger Rack - Star Industries

📘 Overview

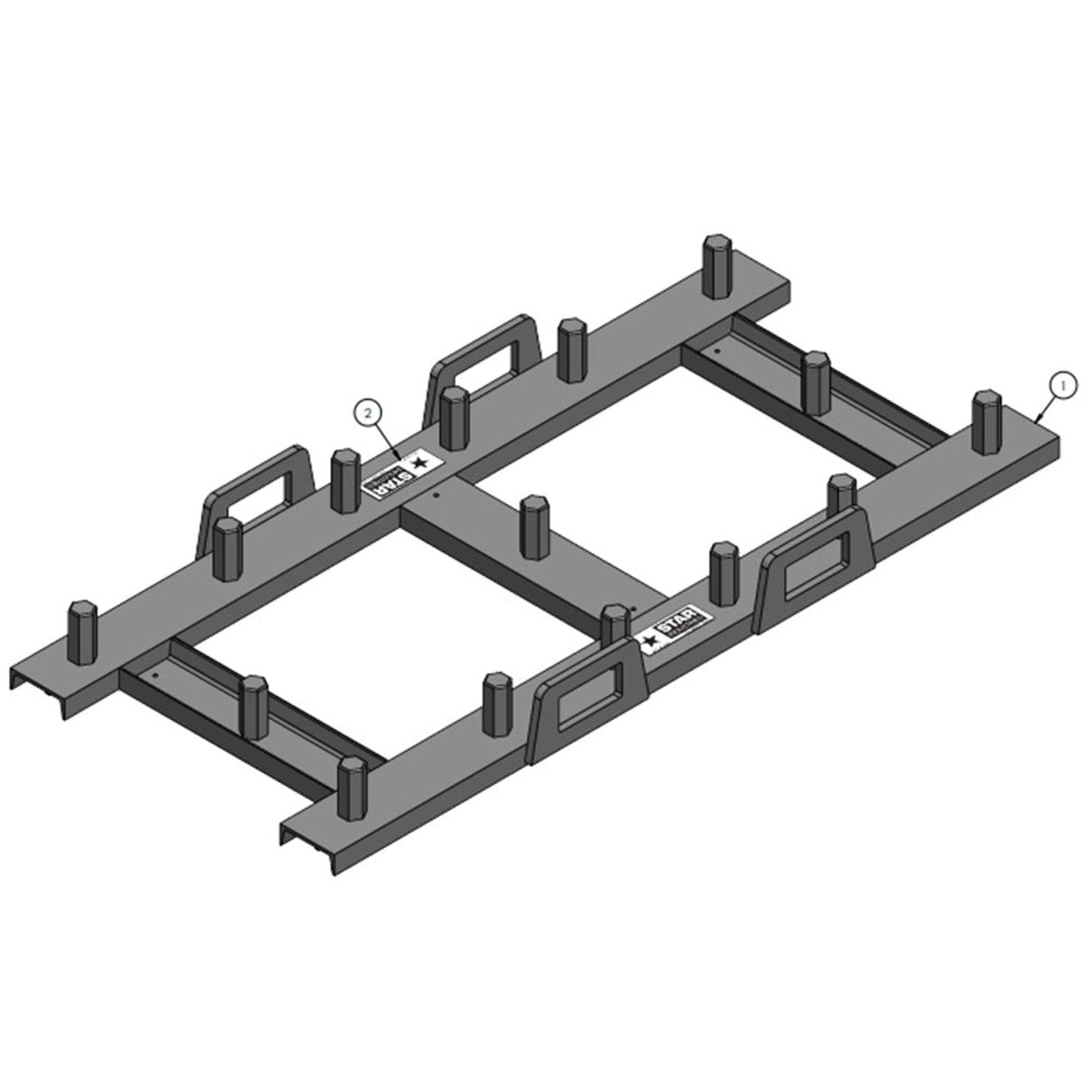

The Star Industries Skid Steer Auger Rack is a purpose-built storage and transport solution for heavy-duty skid steer auger bits. The unique "Drop-N-Go" design allows a single operator to set the auger down onto the rack and drive away — eliminating the dangerous manual handling of 100–300 lb auger bits. Available in 16" (Model 160A-16 and 160A-16-42) and 18" (Model 160A-18 and 160A-18-42) auger diameter configurations, with and without a 42" extension tube slot. Keeps auger bits organized, accessible, and off the ground between holes. 5-year factory guarantee. USA made since 1981.

⚙️ Key Features

• Drop-N-Go design — single operator can set and retrieve auger bit without manual handling
• Model 160A-16: fits 16" auger bits | 160A-18: fits 18" auger bits
• -42 variants: includes slot for 42" extension tube storage
• Connects to SSQA quick attach — mount on skid steer or set on ground
• Holds auger bit and drive unit for job site transport
• 5-year factory guarantee | USA made since 1981

🔑 Benefits

• Drop-N-Go eliminates the two-person lift that auger bit handling otherwise requires — a 16" HD auger bit typically weighs 100–180 lbs; an 18" rock auger with drive unit can exceed 300 lbs. Standard practice requires two workers to handle the bit during drive unit attachment and bit changes. The Drop-N-Go rack allows one operator to place the bit precisely and drive away — eliminating the second worker and the injury risk of the manual lift entirely.
• Ground storage keeps auger teeth sharp and drive unit clean between holes — lying auger bits on the ground exposes the carbide teeth to soil impact damage and the drive unit motor ports to dirt ingress. The rack holds the bit off the ground in a controlled orientation, protecting both the cutting teeth and the drive unit ports between drilling cycles.
• Extension tube storage on -42 models eliminates the second trip for extensions — when drilling deep holes requiring shaft extensions, the extension tube is typically a second piece that requires a separate material handling event. The -42 variant racks store the extension tube alongside the bit, reducing the cycle time per hole by eliminating the second trip to retrieve the extension.
• Rack transport on SSQA allows full auger bit kit to move with the skid steer — mounting the rack on the skid steer's SSQA allows the operator to drive from hole to hole with the bit rack mounted, retrieve the auger for drilling, and return it to the rack without leaving the machine cab on flat terrain.

📊 Specifications

🔗 Attachment Compatibility

Designed for use with Star Industries 160D series auger drive units and 160A series auger bits. Confirm auger bit diameter (16" or 18") matches rack model before ordering. Can be mounted on SSQA quick attach for transport or set on the ground as a stationary storage stand.

🚜 Machine Compatibility

Compatible with skid steer loaders and compact track loaders with a Universal Quick Attach (SSQA) system:

Compatibility determined by mount type — confirm your machine's quick attach configuration before ordering.

❓ FAQs

📥 Downloads

Download Spec Sheet (PDF)
