📘 Overview

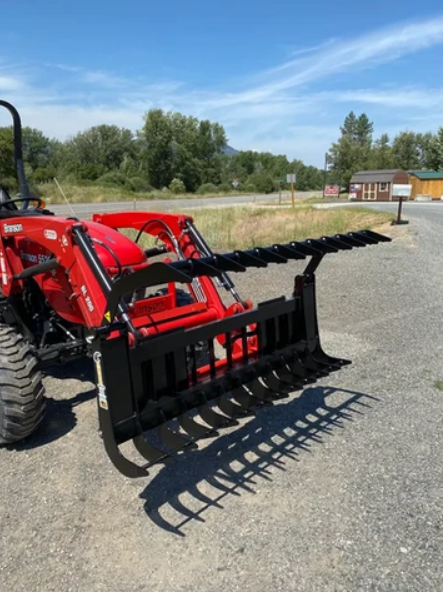

The ANBO GRSC Grapple Rake is built for mini skid steer/compact tractors up to 25 horsepower — available in 32"-69" widths with 5" tine spacing options. Clamshell design delivers raking, digging, and grabbing in one attachment: remove rocks, collect brush and logs, transport firewood, pull roots and debris, and clear land efficiently. American AR400F steel (5x stronger than grade 36 steel). All greaseable pivot points. Hoses routed securely. 2-year attachment warranty, 3-year cylinder warranty.
⚙️ Key Features
- For mini skid steer/compact tractors up to 25 HP
- Widths: 32"-69"
- Tine spacing: 5" options
- Cylinders: 2"×6" | 33" opening
- Tine steel: 1/4":1/4" AR400F
- Clamshell design — rake, dig, and grab in one attachment
- All pivot points greaseable | Hoses routed securely
- AR400F — 5x stronger than grade 36 steel
- Made in USA (Colville, WA) | 2-yr warranty | 3-yr cylinder warranty
🔑 Benefits
- AR400F steel is 5x stronger than grade 36 yet lighter — your machine keeps more of its rated lift capacity while the grapple handles greater abuse — competing grapples in mild steel compensate with added thickness and weight, which directly reduces your machine's effective lift capacity. ANBO's AR400F formula provides the strength without the weight penalty.
- Clamshell design enables back-raking and load securing: the top grapple bar closes over raked material for transport — eliminating attachment changes between raking and carrying passes
- Greaseable pivot points require minimal maintenance — lubricate at service intervals; no welded pivot failures from lack of access
- 3-year cylinder warranty covers the most expensive wear component — ANBO backs the cylinders longer than most competitors warrant the entire attachment
📊 Specifications
| Series | GRSC |
| Max HP | 25 HP |
| Width Range | 32"-69" |
| Tine Spacing Options | 5" |
| Opening | 33" |
| Cylinders | 2"×6" |
| Tine Steel | 1/4":1/4" AR400F |
| Weight Range | 190-297 lbs |
| Pivot Points | All greaseable |
| Design | Clamshell |
| Warranty | 2-year attachment | 3-year cylinders |
| Origin | Made in USA — Colville, WA |
SKU Format Guide
SKU = GRSC-[tine spacing]-[width in inches]. Example: GRSC-6-71 = GRSC, 6" spacing, 71" width.
| SKU Pattern | Tine Spacing | Width Range | Weight Range |
|---|---|---|---|
| GRSC-5-[width] | 5" tine spacing | 32"-69" | 190-297 lbs |
🔗 Attachment Compatibility
Designed for land clearing, property cleanup, rock removal, brush and log handling, root pulling, storm debris management, and firewood operations on mini skid steer/compact tractors up to 25 HP. Contact eSkidSteer at 866-757-8337 for any questions.
🚜 Machine Compatibility
Compatible with skid steer loaders and compact track loaders equipped with a Universal Skid Steer Quick Attach system. For mini skid steers and compact machines up to 25 HP. Confirm quick attach type before ordering.
Bobcat
Caterpillar
John Deere
Case
New Holland
Takeuchi
Kubota
Gehl
❓ FAQs
Q: What machines does the GRSC fit?
A: Tractors, skid steers, and loaders up to 25 HP. Contact eSkidSteer at 866-757-8337 for any questions.
Q: How do I read the SKU?
A: SKU format is GRSC-[tine spacing in inches]-[width in inches]. A SKU of GRSC-6-71 means GRSC model, 6" tine spacing, 71" working width.
Q: What tine spacing should I choose?
A: 6": best for mixed material, rocks, and roots — general-purpose choice with good retention. 8": better for logs and larger debris where finer retention is less important. 12": maximum spacing for large timber and log-only operations.
Q: What is AR400F steel?
A: AR400F is an abrasion-resistant alloy steel with a yield strength of 150,000-180,000 PSI — approximately 5x stronger than grade 36 (A36) steel. It is also more formable than standard AR400, reducing brittleness. ANBO uses American-sourced AR400F throughout all tines and structural members.
Q: What is the warranty?
A: 2-year warranty on the attachment. 3-year warranty on cylinders. The 3-year cylinder warranty is one of the best in the industry. Contact eSkidSteer at 866-757-8337 for any questions.
Q: Where is ANBO made?
A: All ANBO grapples are designed, fabricated, and assembled in Colville, Washington, using USA-sourced AR400F steel.
