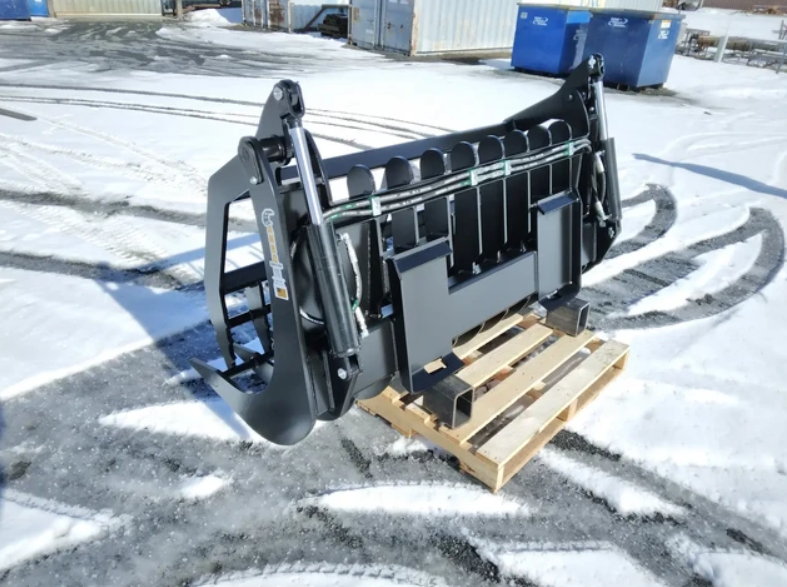

ANBO GR160HC-12 Grapple Rake - High Capacity - 12" Tines

📘 Overview

The ANBO GR160HC High Capacity (HC) Grapple Rake is built for tractor/skid steers up to 160 HP in 77"-115" (est.) widths with 12" tine spacing options. Clamshell design delivers raking, digging, and grabbing in one attachment — remove rocks, collect brush and logs, transport firewood, pull roots and debris, clear land, and more. American AR400F steel (5x stronger than grade 36). All greaseable pivot points. Hoses routed securely. 2-year attachment warranty, 3-year cylinder warranty.

⚙️ Key Features

• For tractor/skid steers up to 160 HP
• Widths: 77"-115" (est.)
• Tine spacing: 12" options
• Cylinders: 3"×10" | ~65"" opening
• Tine steel: 3/4":5/8" AR400F
• HC: Longer bottom tines and larger closed volume — more material per pass than standard
• Clamshell design — rake, dig, and grab in one attachment
• All pivot points greaseable | Hoses routed securely
• AR400F — 5x stronger than grade 36 steel
• Made in USA (Colville, WA) | 2-yr warranty | 3-yr cylinder warranty

🔑 Benefits

• AR400F steel is 5x stronger than grade 36 yet lighter — your machine keeps its rated lift capacity while the grapple handles greater abuse — competing grapples in mild steel compensate with added thickness and weight, directly reducing effective lift capacity. ANBO's AR400F delivers the strength without the weight penalty.
• Clamshell design enables back-raking and load securing — the top grapple bar closes over raked material for transport, eliminating attachment changes between raking and carrying passes
• High Capacity longer bottom tines and larger closed volume haul more material per cycle — fewer passes per acre reduces total operating hours
• 3-year cylinder warranty covers the highest-wear component — longer than most competitors warrant the entire attachment

📊 Specifications

SKU Format Guide

SKU = GR160HC-[tine spacing]-[width in inches]. Example: GR160HC-6-80 = GR160HC, 6" tine spacing, 80" width.

🔗 Attachment Compatibility

Designed for land clearing, rock removal, brush and log handling, root pulling, storm debris management, and firewood operations on tractor/skid steers up to 160 HP. Contact eSkidSteer at 866-757-8337 for any questions.

🚜 Machine Compatibility

Designed for tractors with a 3-point or loader mount. Compatible with tractors and loaders up to 160 HP. Contact eSkidSteer at 866-757-8337 for any questions.
