Hydraulic Couplers
Optional
Width
72"
Part Number
9023001
Guaranteed Fit
Fast Shipping
Hassle-Free Returns
Description
🏭USA
🔧Quick attach
📘 Overview

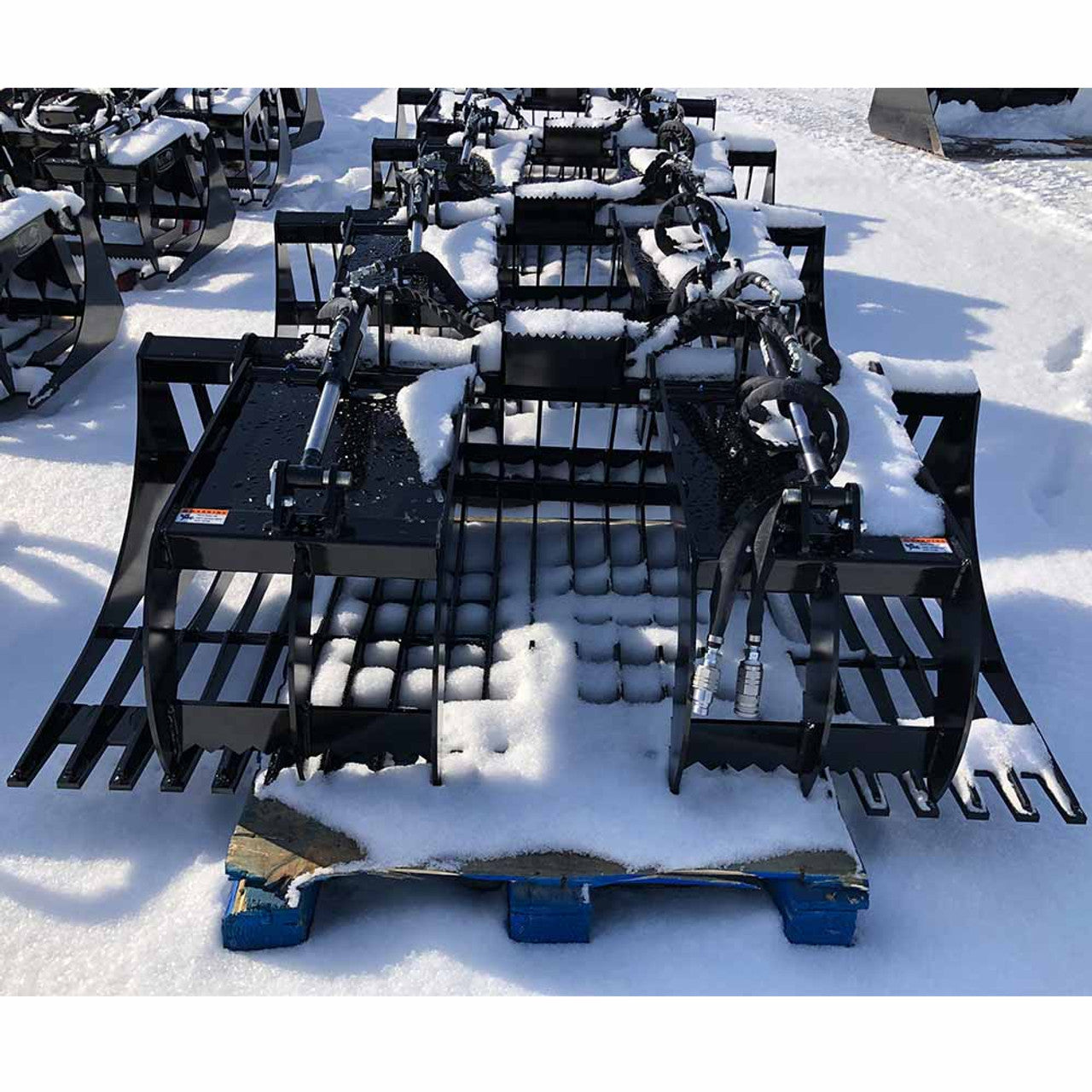

This skid steer grapple bucket — the Top Dog 72" Utility Grapple — is the light-duty model in the range, recommended for loaders up to 2,000 lbs total lift capacity, which is the specification that should decide whether this or the heavier low profile grapple bucket is right for your machine. At 783 lbs with a 33" deep bucket and a 35.25" grapple opening, it gives genuine grapple capability to compact machines that could not carry a 900 lb-plus bucket loaded. Construction is 3" x 3" x 3/16" tube with 3/8" Grade 50 grapple arms and 2" x 8" clevis cylinders.
Most grapple bucket listings leave machine sizing to the buyer. This one does not, and that is the reason to choose it: a light duty grapple bucket with a published 2,000 lb machine limit removes the guesswork that sends the wrong attachment to a compact machine. Buyers comparing a grapple bucket for skid steer use against a grapple bucket for tractor loaders should note that most compact tractor loaders fall inside that 2,000 lb window, which makes this the compact tractor grapple in the Top Dog range. As a brush grapple it handles the same material as the heavy models at lower capacity.
⚙ Key Features of the Top Dog Attachments 72" Utility Grapple
- Rated for loaders up to 2,000 lbs lift capacity — the defining spec — this is the grapple bucket for machines the heavy-duty models would overload.
- 783 lbs working weight — roughly 100–190 lbs lighter than the low profile grapple bucket range, which is the difference on a small loader.
- 35.25" grapple opening — full grapple capability despite the lighter build.
- 3/8" Grade 50 grapple arms — Grade 50 arms even in the light-duty model — the weight saving is in the frame, not the working parts.
- 1/2" x 8" Grade 50 cutting edge — a substantial edge for a light-duty tool.
- 2" x 8" clevis cylinders — clevis mounting is simple to service and replace.
- 33" bucket depth on a 41.75" overall depth — a genuine working bucket, not a token floor under a grapple.
🔑 Why Choose the 72" Utility Grapple?
- Grapple capability on a small machine — compact loaders that cannot carry a heavy grapple bucket loaded can run this one at full capacity.
- Published lift rating removes the guesswork — a stated 2,000 lb machine limit is rarer than it should be — most grapple buckets leave you to work it out.
- Full-size opening, light-duty weight — a 35.25" grapple opening is comparable to the heavy models; the savings are in frame mass.
- Grade 50 where it counts — the arms and cutting edge are Grade 50 despite the lighter overall build.
📊 Top Dog Attachments 72" Utility Grapple Specifications
| Specification | Value |
|---|---|
| Part Number | 9023001 |
| Width | 72" |
| Overall Height (Closed) | 26" |
| Overall Height (Open) | 40" |
| Overall Depth | 41.75" |
| Grapple Opening | 35.25" |
| Depth of Bucket | 33" |
| Cutting Edge | 1/2" x 8" Grade 50 |
| Top Tube | 3" x 3" x 3/16" |
| Bottom Tube | 3" x 3" x 3/16" |
| Grapple Arms | 3/8" Grade 50 |
| Cylinders | 2" x 8" clevis |
| Hydraulic Couplers | Optional |
| Hydraulic Hoses | 3/8" |
| Weight | 783 lbs |
| Recommended For | Loaders up to 2,000 lbs total lift capacity |
| Country of Origin | Made in USA |
🔗 What Is a Skid Steer Grapple Bucket Used For?
- Brush and debris handling on compact machines
- Loading and clamping loose material
- Property and small-site cleanup
- Farm and smallholding material handling
- Any grapple work where machine capacity is the limiting factor
Machines rated above 2,000 lbs lift will get more out of the low profile grapple bucket, which is built heavier throughout.
🚜 Which Machines Fit the 72" Utility Grapple?
Available for two machine classes — the 72" Utility Grapple uses a single universal quick attach plate that serves both:
Skid steers and compact track loaders — fits machines with a Universal Quick Attach (SSQA) mount, including:
BobcatCaterpillarJohn DeereCaseNew HollandTakeuchiKubotaGehl
Compact tractor front-end loaders — fits tractor loaders fitted with a skid-steer-style universal quick attach coupler. Loaders using Euro/Global or John Deere 400/500 mounts require the matching Top Dog adapter plate (Euro 90133219, Euro 2-piece 90133229, JD flat 9033199, JD offset 90133228).
Hydraulic requirement: The grapple arms run on 2" x 8" clevis cylinders and require an auxiliary hydraulic circuit on the host machine.
Compatibility is determined by mount type, not brand — confirm your machine’s quick attach configuration before ordering.
❓ 72" Utility Grapple Questions, Answered
What size machine is the utility grapple designed for?
The Top Dog 72" utility grapple is recommended for loaders up to 2,000 lbs total lift capacity. That is the deciding specification — machines above that range are better served by the heavier low profile grapple bucket, which is built for higher loads.
What is the difference between the utility grapple and the low profile grapple bucket?
The Top Dog utility grapple weighs 783 lbs and is rated for loaders up to 2,000 lbs lift capacity, with 3/8" Grade 50 grapple arms and a 1/2" x 8" edge. The low profile grapple bucket runs 827 to 972 lbs with 1/2" Grade 50 arms and a 3/4" x 6" edge. The utility grapple is the choice for compact machines; the low profile bucket for heavier work.
Are hydraulic couplers included?
Hydraulic couplers are listed as optional on the Top Dog utility grapple. Hoses are 3/8". Confirm whether couplers are required for your machine when ordering.
Does the utility grapple require auxiliary hydraulics?
Yes. The grapple arms run on 2" x 8" clevis cylinders and require an auxiliary hydraulic circuit on the host machine.
How wide does the utility grapple open?
The grapple opening is 35.25", with overall height rising from 26" closed to 40" open.
Is the utility grapple available in other widths?
No. The Top Dog utility grapple is offered in 72" only, under part number 9023001. For other widths, the low profile grapple bucket covers 60" to 84".
Will the utility grapple fit a compact tractor loader?
Yes, where the loader is fitted with a skid-steer-style universal quick attach coupler and has an auxiliary hydraulic circuit. The 2,000 lb lift capacity rating makes this the more appropriate Top Dog grapple bucket for compact tractor loaders. Loaders using Euro/Global or John Deere 400/500 mounts require the corresponding adapter plate.
How is the utility grapple shipped?
Shipping is calculated at checkout — add the item to your cart, enter your delivery address, and the shipping charge is displayed before you complete your order. Lift gate service is available for residential deliveries and can be selected at checkout.
How do I order the Top Dog utility grapple?
Add the item to your cart directly on eskidsteer.com and complete checkout online. Have your machine make, model, serial number and rated lift capacity ready to confirm fitment before ordering. If you have a fitment question before purchasing, call us at (866) 757-8337.
