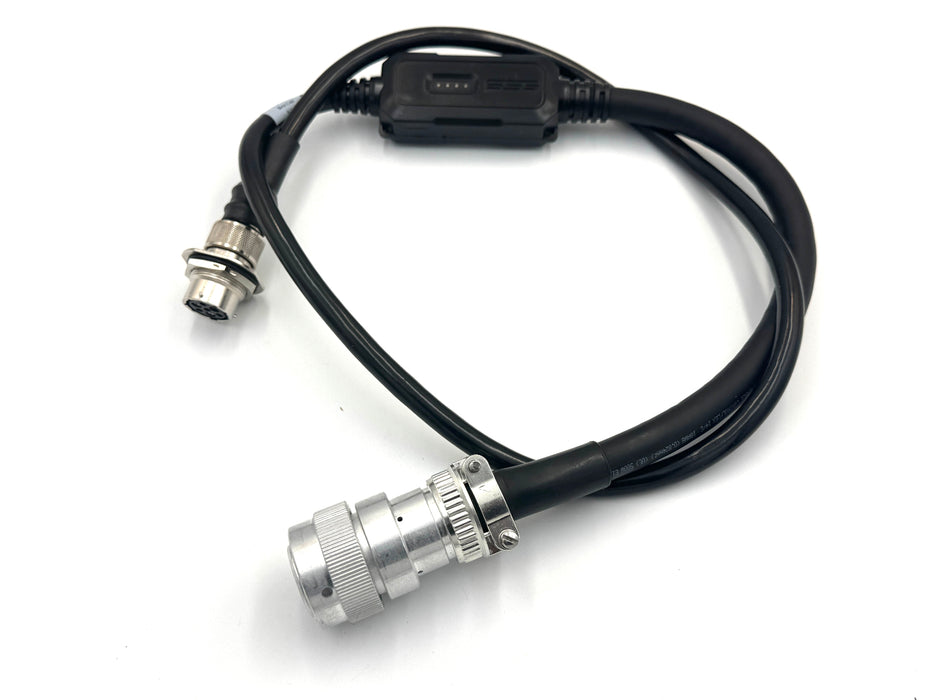

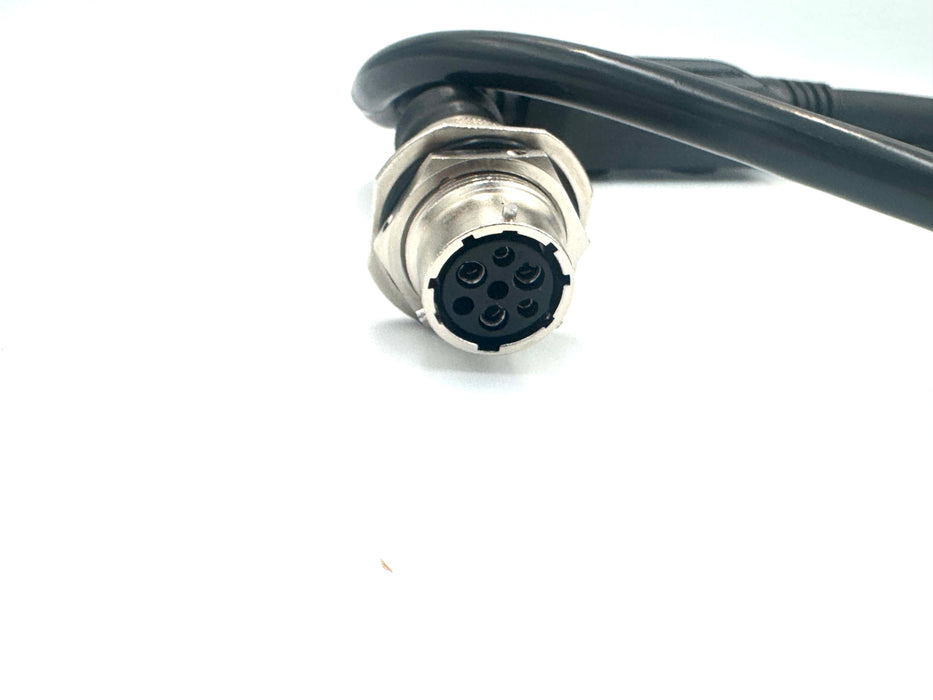

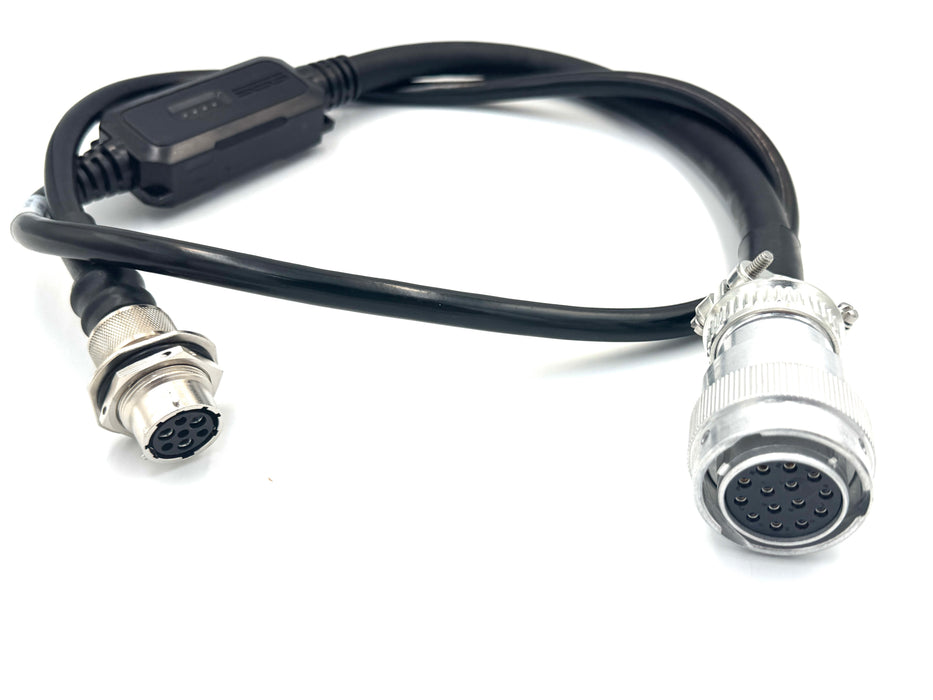

7 Pin CAN Converter for Bobcat Attachments - SG-X-CAT-XX - Skid Steer Genius

X-CAT Controller for Running Bobcat 7-Pin CAN Attachments on 14-Pin Machines: The X-CAT is an advanced plug-and-play controller created for operators who want to run compatible Bobcat attachments on non-Bobcat carriers equipped with a 14-pin connection. It converts machine switch signals into the CAN communication language required by Bobcat attachments, allowing those attachments to function on a wider range of loaders.

Built for Operators Managing Mixed Equipment Fleets: This controller is especially useful for owners moving away from Bobcat machines while keeping Bobcat attachments in service. It is also a strong solution for dealers, contractors, and fleet owners who want to move attachments between multiple machine brands without rewiring them.

Important Before Ordering: The X-CAT is offered in multiple machine-specific configurations and must be selected correctly for your carrier. Hydraulic couplers must also be reversed when using Bobcat attachments, since Bobcat hydraulic flow is opposite from many other manufacturers.

Fast, Reusable Plug-and-Play Setup: Installation takes about one minute. This plug-mount version is designed for repeat use across different machines and attachments with one to six solenoid-controlled functions, depending on machine configuration.

How the X-CAT Works: The controller detects which machine buttons are being pressed, then translates those 12-volt control signals into CAN commands that a Bobcat attachment recognizes. To the attachment, it appears as though it is connected to a Bobcat loader.

What Is Included:

• X-CAT controller with support for up to 8 output controls, depending on the machine’s available controls

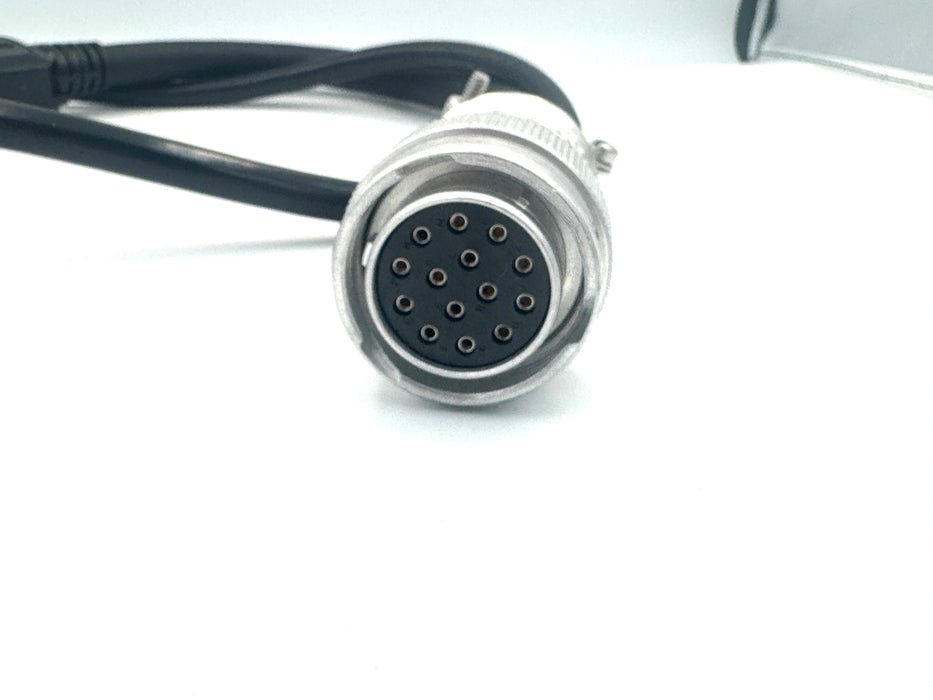

• 14-pin machine-side connection compatible with many major brands
• Installation instructions
• Factory support from Skid Steer Genius

Not Just a Simple Harness: The X-CAT contains an onboard microprocessor and dedicated driver electronics, which is why it functions as an active controller rather than a passive wiring adapter.

When a Simpler Option May Work: If you only need to run one or two Bobcat attachments on another skid steer brand, a direct bypass harness may be a lower-cost option.

Attachment Compatibility:

• Not supported: Bobcat chipper, Bobcat concrete pump, and Bobcat tree spades such as TS36 and TS44
• Supported applications include: Bobcat 96-inch and 108-inch graders, rotary broom, soil conditioner, Bob-Tach mounted mini backhoe, box blade, cold planer with manual rotate, 84-inch grader without lasers, snow blower, V-plow, stump grinder, and wheel saw

Cold Planer Note: Some newer cold planer models with hydraulic angle control may require a 7th and 8th control function. Other versions that switch manually between side shift and angle can still work with 6 controls.

Machine Compatibility Depends on Installed Controls: The X-CAT does not add extra machine buttons. It uses the controls already present on your loader, so compatibility depends on how many functions your machine was originally equipped with.

Machine Options:

• CAT D Series – Part #SG-X-CAT-CT: Configured to match Bobcat functions as closely as possible. AUX 8 is used for power, so maximum available control count is 5. High flow requires a hidden jumper to be connected manually.
• CAT 255/265 and Develon – Part #SG-X-CAT-255: Uses pin P for power, allowing up to 6 functions. High flow jumper is also included and must be connected manually.
• John Deere – Part #SG-X-CAT-JD: For 2020 and newer machines equipped with pin K power. Contact support for setups requiring more than 6 functions.
• Case – Part #SG-X-CAT-KB: Machine must have enough factory-installed controls for your attachment needs.
• Kubota – Part #SG-X-CAT-KB: Machines older than 2018 typically provide 2 controls. 2018 and newer models may provide up to 7 controls.
• JCB / Volvo – Part #SG-X-CAT-BC: Supports up to 6 controls depending on machine configuration.
• Gehl / Mustang / Manitou – Part #SG-X-CAT-BC: Supports up to 6 controls depending on machine configuration.
• Takeuchi – Part #SG-X-CAT-KB: Supports up to 7 controls depending on model and factory equipment.
• New Holland – Part #SG-X-CAT-KB: Supports up to 6 controls depending on machine configuration.
• Yanmar / ASV – Part #SG-X-CAT-BC: Supports up to 6 controls depending on machine configuration.
• Hyundai – Part #SG-X-CAT-BC: Supports up to 6 controls depending on machine configuration.
• Wacker Neuson – Part #SG-X-CAT-BC: Supports up to 6 controls depending on machine configuration.

Additional Compatibility Help: Contact support if you need fitment guidance for older CAT ABC Series machines, ASV/Terex loaders, or any setup requiring more than 6 functions.
