Bradco / Paladin built
24", 30" and 36" digging depth
6–10 or 10–16 GPM
Overview

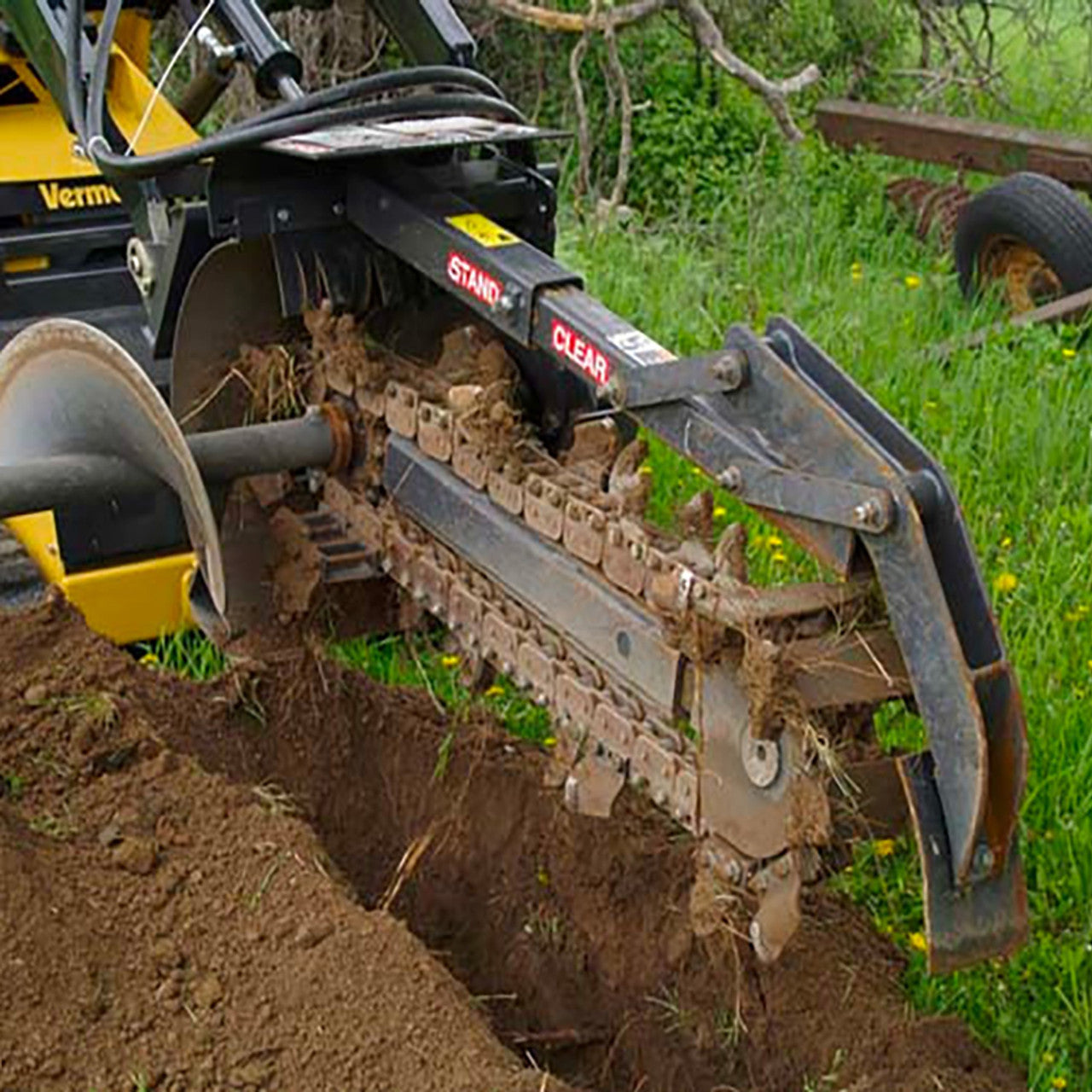

This Bradco mini skid steer trencher — the 615 / 615F Series — digs to 24", 30" and 36" on a mini loader quick attach, running on 6–10 or 10–16 GPM. Chain widths of 6" are available, and the 615 / 615F is ordered by motor option to match your mini loader flow. Two motor options cover 6–10 and 10–16 GPM, the flow range mini skid steer loaders actually produce.
Key Features of the Bradco 615 / 615F Mini Skid Steer Trencher
- Two motor options covering 6–10 and 10–16 GPM, matched to mini loader output.
- 50,000 lb 1.65" anti-back flex-chain for tooth pattern versatility.
- TES tooth configuration — a cup-style tooth at every station, for generally good normal digging conditions.
- 294 lbs, light enough for the mini loaders it is built for.
- A compact trencher attachment that reaches where a full-size machine cannot — the reason to own one rather than hire a walk-behind.
- A mini loader trencher, not a scaled-down skid steer trencher — the motor options are built around mini loader flow.
Why Choose the 615 / 615F Series Mini Skid Steer Trencher
- Tooth pattern is matched to soil, not to the machine. Cup, Shark and Rock & Frost options mean the same trencher works in loam and in frozen ground.
- Flow decides the motor, and the motor decides the dig rate. Ordering the motor that matches your loader is what determines productivity — an undersized motor simply digs slowly.
- Depth is fixed at purchase. Boom length sets maximum digging depth, so choose for the deepest trench you actually cut rather than the average.
Bradco 615 / 615F Series Specifications
| Specification | Detail |
|---|---|
| Series | 615 / 615F |
| Carrier | mini loader |
| Digging depth | 24", 30" and 36" |
| Chain widths | 6" |
| Flow requirement | 6–10 or 10–16 GPM |
| Ordered by | motor option to match your mini loader flow |
| Tooth options | Cup, Shark, Rock & Frost |
Which Trencher Series Do You Need?
Bradco builds three trencher series. They differ by carrier class, digging depth and the flow their motors are built around.
| Series | Carrier | Digging depth | Chain widths | Flow |
|---|---|---|---|---|
| 615 / 615F | Mini loader | 24", 30", 36" | 6" | 6–10 or 10–16 GPM (two motor options) |
| 625 | Skid steer | 30", 36", 42", 48", 60" | 6", 8", 10", 12" | 14–22 GPM at 2,000–3,000 PSI |
| 640 | Skid steer | 30", 36", 42" | 6", 8", 10", 12" | 18–45 GPM (five motor options) |
For full-size skid steers, the 640 Series offers five motor options to 45 GPM and the 625 Series digs to 60".
All three series take the same tooth options — Cup, Shark, and Rock & Frost — so the chain is matched to the ground rather than to the machine. Cup teeth suit normal digging; Rock & Frost are for the conditions their name describes.
Which Machines Fit the 615 / 615F Series?
The 615 / 615F mounts on a mini loader quick attach and requires 6–10 or 10–16 GPM at the auxiliary circuit. Because Bradco offers more than one motor across the trencher range, flow is matched at the point of order rather than being a pass/fail limit.
| Machine requirement | Specification |
|---|---|
| Auxiliary flow | 6–10 or 10–16 GPM |
| Mount | mini loader quick attach |
| Digging depth available | 24", 30" and 36" |
| Chain widths available | 6" |
Confirm your loader's auxiliary flow before ordering so the correct motor is supplied. If you are unsure, contact eskidsteer.com at (866) 757-8337.
615 / 615F Series Trencher Questions, Answered
Will the 615 fit a full-size skid steer?
It is built for mini loaders and runs on 6-16 GPM. A full-size skid steer would need the 625 or 640, both of which are specified for higher flow and greater depth.
What is the difference between the 615 and 615F?
Both are covered by the same Bradco documentation and share the 24, 30 and 36 inch digging depths. Confirm which configuration your order specifies before purchase.
Is this a mini skid steer digging attachment for hard ground?
With Rock & Frost teeth fitted it will work in harder conditions, but at 6-16 GPM it is a light-duty machine. Persistent rock is work for a full-size trencher.
What tooth options are available?
Cup, Shark, and Rock & Frost. Cup teeth suit normal digging conditions; Rock & Frost are specified for rock and frozen ground.
How deep will it dig?
The 615 / 615F Series digs to 24", 30" and 36". Boom length is fixed, so digging depth is chosen at purchase.
How do the three Bradco trencher series compare?
The 615 is a mini loader machine digging to 36 inches on 6-16 GPM. The 625 and 640 are skid steer machines: the 625 offers the widest depth range to 60 inches, and the 640 offers five motor options spanning 18-45 GPM.
Is a trencher the right skid steer digging attachment for my job?
For narrow, straight, consistent-depth runs a trencher is far faster than a bucket. For irregular excavation a bucket or auger is the better tool. Trench width here is set by chain width, from 6 to 12 inches.
How is shipping calculated?
Shipping is calculated at checkout — simply add the item to your cart, enter your delivery address, and the shipping charge will be displayed before you complete your order.
615 / 615F Series Documentation
615 / 615F Series Trencher Video
