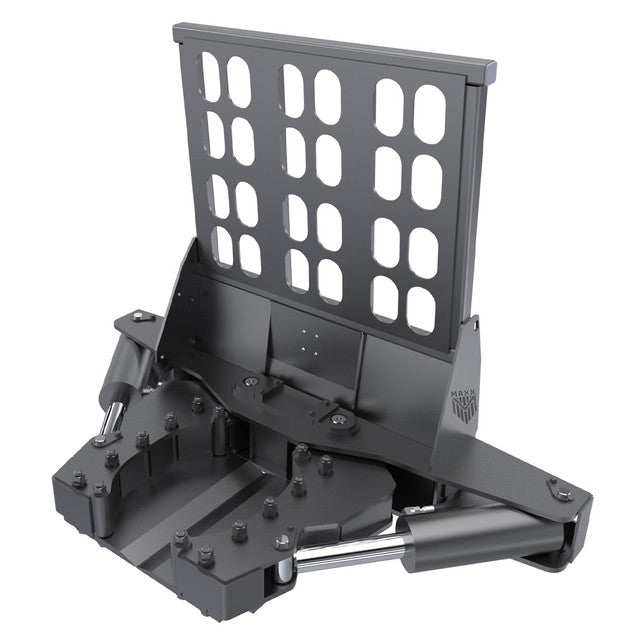

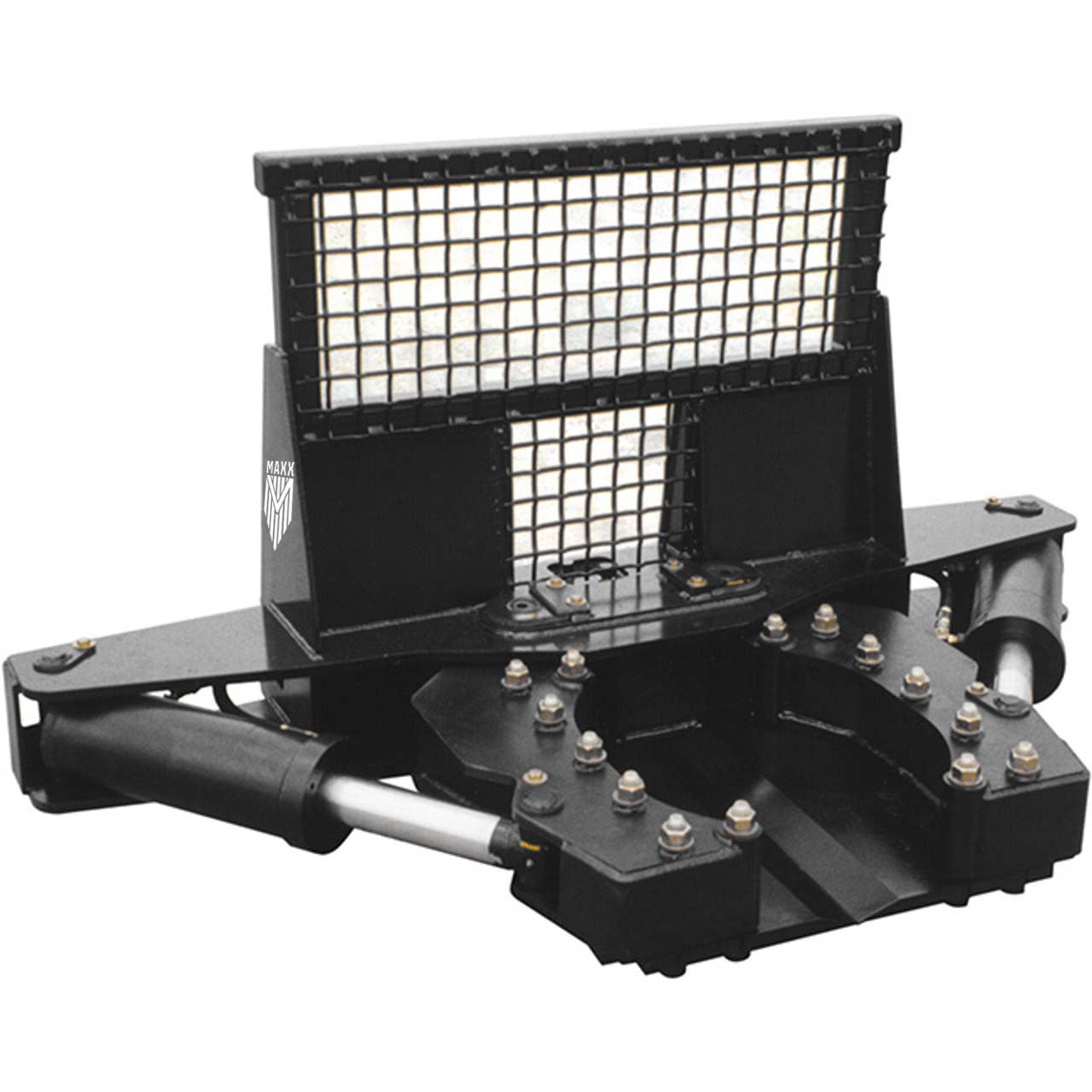

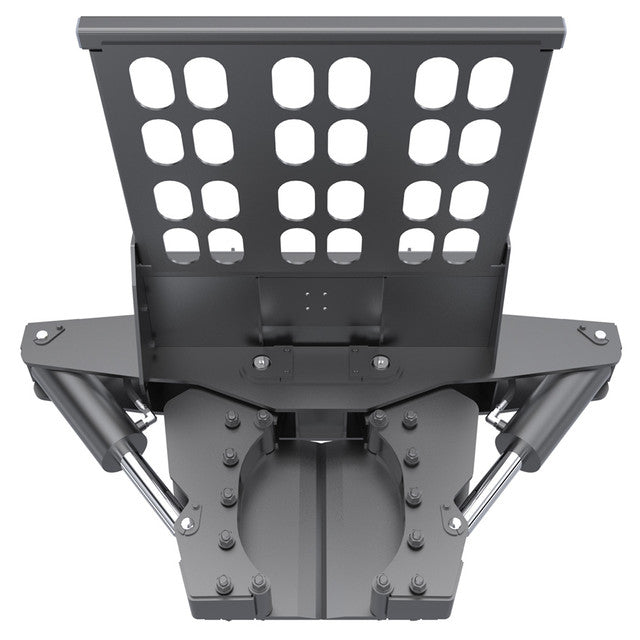

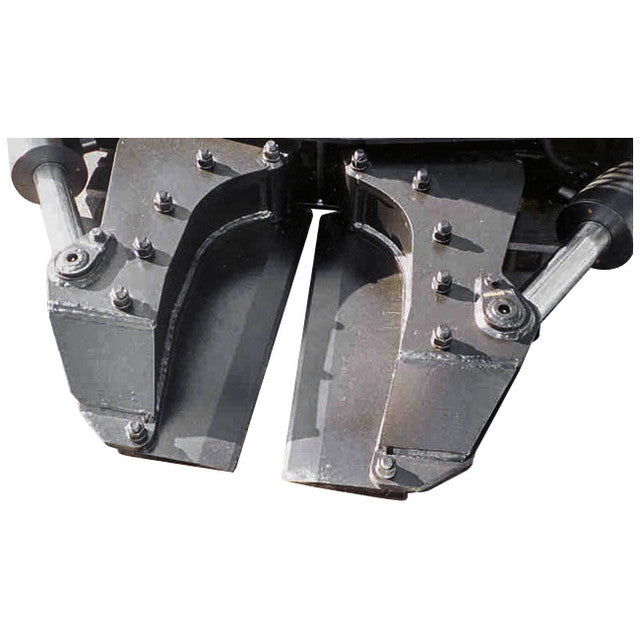

The 20" Ranch Axe skid steer tree shear, on a universal quick attach mount, takes trees up to 20" in diameter — the largest capacity in the Maxx shear line — and does it at near ground level for pasture reclamation work. It is purpose-built for moisture-hogging cedar and juniper, the species that quietly take a pasture out of production, and it is particularly effective on trees that grow in clumps at the stump. A 1" AR400 single-bevel replaceable blade does the cutting, driven by twin 6" bore shearing cylinders with 3" rods and a 12" stroke. Heavy-duty box-weld shearing arms, 3" chrome-plated pivot pins with replaceable bearings, and well-protected hose routing are what let it run thousands of hours in abrasive range conditions. Note that this shear is not suited to hardwood — for mesquite, oak, hedge or locust, the 14" Ranch Axe is the correct tool.
| Specification | 20" Ranch Axe Tree Shear |
|---|---|
| Manufacturer Model # | 7434D1 |
| Weight | 2,000 lbs |
| Height | 60" |
| Width | 82" |
| Overall Depth | 45" |
| Shear Blade Material | 1" AR400 steel single-bevel blade (replaceable) |
| Operating Capacity Required | 2,100 lbs minimum |
| Hydraulic Flow Requirement | 17 GPM minimum |
| Hydraulic Pressure Requirement | 3,000 PSI maximum |
| Shear Cylinders | 2 × 6" bore, 3" rod, 12" stroke |
| Brushguard | 3' assembly included |
Compatible with skid steer loaders and compact track loaders equipped with a Universal Quick Attach system, including:
Compatibility is determined by mount type, not brand — confirm your machine's quick attach configuration before ordering. This attachment requires a minimum machine operating capacity of 2,100 lbs and a minimum hydraulic flow of 17 GPM at a maximum of 3,000 PSI. A set of jumper hoses and quick disconnects to standard flow line connections is provided.
Softwoods — specifically moisture-hogging cedar and juniper, and bushy species that grow in clumps at the stump. It excels at pasture cleanup where those trees are taking water and grazing away from the grass.
No. The manufacturer specifically states the 20" Ranch Axe is not suited for shearing hardwood species such as mesquite, oak, osage orange (hedge), or locust. For hardwood work, the 14" Ranch Axe is the correct model — it uses solid cast steel arms built for that duty.
A minimum operating capacity of 2,100 lbs, a minimum hydraulic flow of 17 GPM, and a maximum system pressure of 3,000 PSI. At 2,000 lbs the attachment itself is substantial, so verify your rated operating capacity before ordering.
Capacity and intended species. The 20" cuts up to 20" diameter and is built for softwood pasture work. The 14" and 16" models cut smaller diameters but handle hardwood, need less machine (1,850 lbs versus 2,100 lbs) and less flow (15 GPM versus 17 GPM). Choose by what you are cutting first, diameter second.
The 3' brushguard assembly is included as standard on the 20" Ranch Axe — it is listed as a feature of the model rather than an option, unlike the 14" and 16" models where the brushguard is a configuration choice.
A single-bevel blade is ground on one face rather than both. On a shear this size it concentrates the cutting edge and makes replacement straightforward — the blades are designed to be easily replaced when worn rather than resharpened in place.
Yes. The shear is provided with a set of jumper hoses and quick disconnects sized to standard flow line connections, so it connects to a standard-flow machine without additional parts.
Yes — the 5-gallon chemical sprayer system built for the 20" Ranch Axe can be added directly on this page using the sprayer option above the Add to Cart button. It applies herbicide to the cut stump to prevent regrowth, which matters on cedar because it resprouts readily. The system is factory installed, so adding it with the shear is the intended path.
Shipping is calculated at checkout — simply add the item to your cart, enter your delivery address, and the shipping charge will be displayed before you complete your order. Lift gate service is available for residential deliveries and can be selected at checkout.
Add the item to your cart directly on eskidsteer.com and complete checkout online. Have your machine make, model, and serial number ready to confirm fitment before ordering. If you have a fitment question before purchasing, call us at (866) 757-8337.
