Recommended flow
6-16 GPM
Torque @ 3,000 PSI
2,099 ft-lbs
Model
1MDS
Guaranteed Fit
Fast Shipping
Hassle-Free Returns
Description
Made in USA
5-yr warranty
Overview

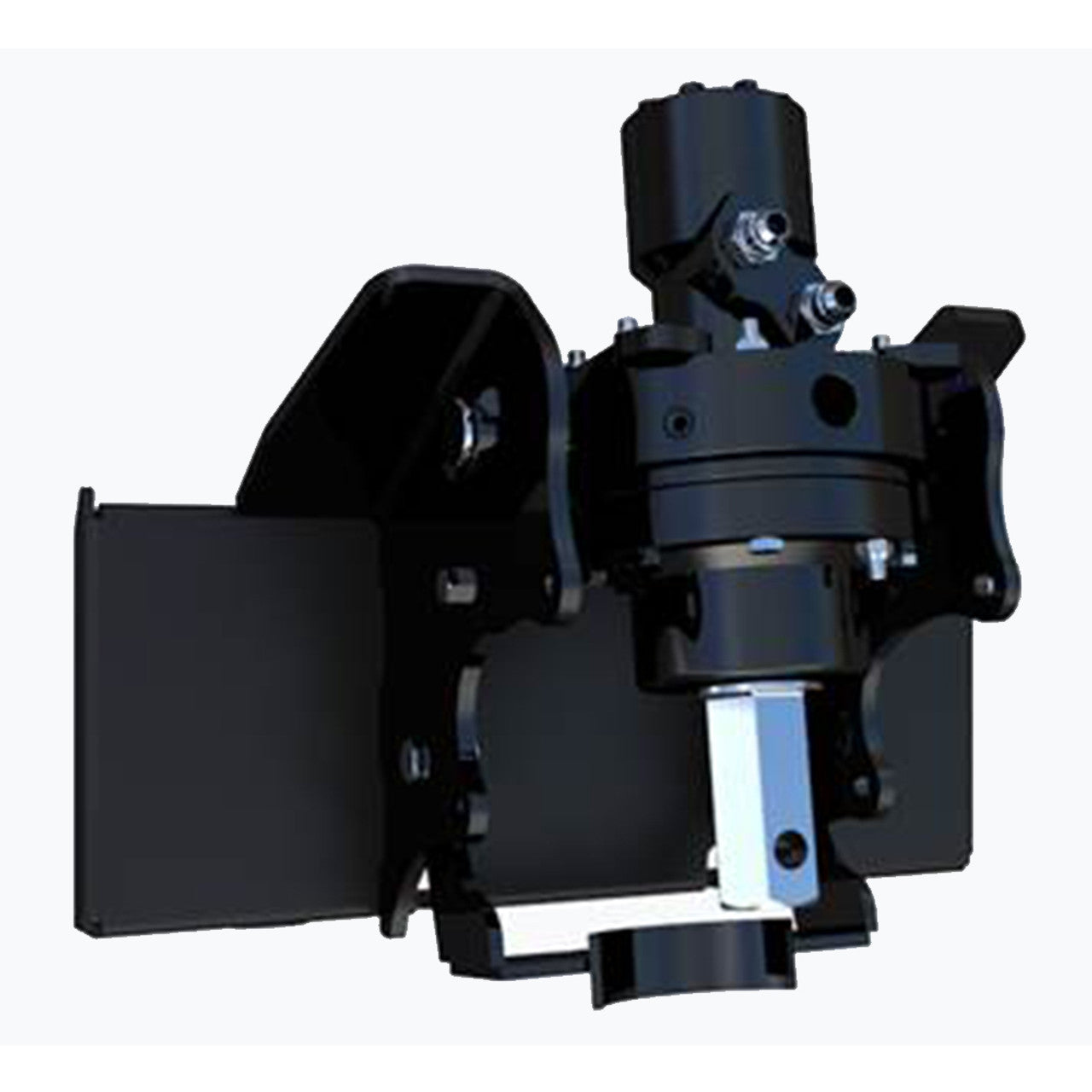

This mini skid steer auger drive is the Digga 1MDS, built for compact utility loaders and stand-on machines rather than full-size skid steers. It is a gimbal-mounted drive, which is the significant difference from the DSS range: the swing arrangement lets the auger find plumb on uneven ground instead of being held rigid by the loader arms. It runs a 2" hex shaft and takes the same A4 and RC4 bits as the larger standard-flow drives.
Key Features of the 1MDS Auger Drive
- 2,099 ft-lbs of torque — the figure Digga publishes for the 1MDS
- 6-16 GPM recommended flow — match this against your carrier’s auxiliary circuit
- 2" Hex output shaft — sets which Digga auger bits fit
- Compact high torque Digga manufactured gearbox
- Digga designed Eaton motor
- 2 Piece shaft design ensures maximum side load ratings without increasing load on bearings
- 5 year gear box and 3 year motor warranty / lifetime shaft pull-out warranty
- Over 40 years design and manufacturing experience
- TRU-CUT – a 12†auger cuts a 12†hole, no more oversized holes!
- Over 40 years of auger design and manufacture has resulted in an extremely efficient cutting head design and optimum flight pitches to provide maximum soil removal in all ground conditions.
Why This Drive Suits Its Machine Class
- The gimbal is the point — a mini loader has short arms and limited down-pressure, so letting the auger hang and find plumb produces a straighter hole than forcing it rigid.
- Two-way and four-way swing options change how much freedom the drive has, which matters on sloped or broken ground.
- Takes the same A4 and RC4 bits as the DSS range, so a mixed fleet shares auger inventory.
- Mounting plate is specific to your make and model of mini loader — these are not universal interfaces.
1MDS Auger Drive Specifications
| Specification | Value |
|---|---|
| Model | 1MDS |
| Torque @ 3,000 PSI | 2,099 ft-lbs |
| Recommended flow | 6-16 GPM |
| Motor type | EATON |
| Max horsepower | 20 HP |
| Pressure relief valve | Optional |
| Standard output shaft | 2" Hex |
| Recommended auger bits | A4 / RC4 |
| Max drilling diameter — earth | 24" |
| Max drilling diameter — clay/shale | 12" |
| Weight | 72 lbs |
| Overall length | 16.6" |
| Diameter | 8" |
| HALO auger alignment | Optional |
| Max pressure do not exceed 3000ps | i @12gpm |
| Max flow do not exceed 15gpm | @2250psi |
| Carrier weight range | 0.85-1T (1,900-2,200 lbs) |
Every figure above is taken from Digga’s published data sheet for the 1MDS. Add your machine make and model at checkout and we confirm the fit before the order ships.
Choosing Your Options
Swing Drive
- 2 Way
- 4 Way
Hub Type
- 2" Hex
- 2-9/16" Round
Which Machines Fit the 1MDS?
Built for mini skid steers, compact utility loaders and stand-on machines. The mounting plate is specific to your machine, so it is matched at the order rather than supplied generically:
| Fitment factor | Requirement |
|---|---|
| Mount | Mini loader mounting plate, specific to make and model |
| Case drain | Not required |
| Hoses | Included on the frame package listings |
| Auger bits | A4 or RC4 on the 2" hex hub, sold separately |
Order online — enter your machine make and model with the order and we confirm the mount fits before it ships, coming back to you only if something needs changing. Questions first are welcome at support@eskidsteer.com or on the chat button on your screen.
1MDS Auger Drive Questions, Answered
What is the difference between 2 way swing and 4 way swing?
Two-way swing lets the drive pivot on one axis; four-way lets it pivot on both. On level ground the difference is small. On slopes or broken ground the four-way lets the auger find plumb more freely, which gives a straighter hole with less operator correction.
Will the 1MDS fit my mini loader?
The mounting plate is specific to the make and model of mini loader — there is no universal mini interface the way there is for full-size skid steers. Add your machine make and model at checkout and we match the plate before the order ships.
Can I use the same auger bits as my skid steer?
If your skid steer drive uses a 2" hex shaft, yes — the 1MDS takes the same A4 and RC4 range.
Does the 1MDS need a case drain?
No. The 1MDS is a single-speed drive and runs on a standard two-line auxiliary circuit. Only Digga’s two-speed DDT drives need a case drain.
What warranty comes with the 1MDS?
Five years on the gearbox, three years on the motor, and a lifetime shaft pull-out warranty for drilling use, subject to maintenance per the operator’s manual.
What hydraulic flow does it need?
This one is rated for 6-16 GPM. Check that figure against your machine’s auxiliary hydraulic output before choosing — a machine that cannot supply the rated flow will never reach the rated performance, and one that exceeds the limit will run the attachment hot.
How is shipping calculated?
Shipping is calculated at checkout — add the item to your cart, enter your delivery address, and the shipping charge is shown before you complete your order. Lift gate service is available for residential deliveries and can be selected at checkout.
How do I order?
Add the item to your cart and check out online — the order page asks for your machine make and model, so there is no need to call ahead. We check the mount against your machine after the order and come back to you if anything needs changing. If you would rather ask first, email support@eskidsteer.com or use the chat button on your screen.
What to Order Alongside the 1MDS
- Auger bits — The 1MDS takes a 2" Hex output shaft, and Digga pairs it with the A4 / RC4 range.
- Mount and linkage — the 1MDS ships without one, so the interface is chosen to match your carrier rather than a generic plate.
- Hydraulic hoses and flush-face quick disconnects — sized to the 1MDS’s 6-16 GPM flow rather than to whatever is on the shelf.
- XO20 auger extensions — cheaper than buying a longer bit for the occasional deep hole on the 1MDS, and they stack.
Contractors reach this page searching for a skid steer auger attachment, for a auger drive, or specifically for a skid steer auger. The 1MDS also comes up when people are comparing an mini skid steer attachments against a digga auger, since Digga builds both on shared mounts and shared auger families. Whichever term brought you here, the 1MDS and every other 1mds auger drive drive in the range is made in Dyersville, Iowa.
