Material
Hardened steel
Finish
Powder coat
Lock type
Barrel-style key cylinder
Guaranteed Fit
Fast Shipping
Hassle-Free Returns
Description
🏭Made in USA
🔒1-year warranty
📏Two lengths, brand specific
📘 Overview
The Attachment Lock secures the attachment to the machine by locking the coupler arms in the down position — with the arms held, the attachment cannot be released, so a bucket or grapple left on the loader overnight is still there in the morning. There is one decision to make and it is decided by your machine brand: John Deere and New Holland machines take the short style (part ALS, 15.13 in), and every other manufacturer takes the standard long style (part ALL, adjustable 19.38 to 24 in). Select the style that matches your machine on this page. Keying is available differently, for a unique key, or alike to match a key code already running across your yard — the Attachment Lock and the Skid Steer Lock are commonly ordered on the same code so one key covers machine and attachment.
⚙ Key Features of the Attachment Lock
- Locks the coupler arms down — securing the arms in position is what stops the attachment being released, which no cab or ignition lock addresses.
- Two lengths for two mount geometries — a short style for John Deere and New Holland and a standard style for everything else, rather than one compromise length that fits neither well.
- Standard style adjusts 19.38 to 24 in — the adjustment range covers the spread of coupler geometries across the non-John Deere and non-New Holland machines.
- Slim 1.63 in profile — thin enough to sit in the coupler area without fouling the attachment when it is locked.
- Barrel-style key cylinder — resists picking, Freon attack and corrosion, and the body is built to take thousands of pounds of force rather than shear off under a pry bar.
- Powder-coated steel throughout — the finish survives being thrown in a truck bed daily and does not rust through a season parked outside.
🔑 Why an Attachment Lock Earns Its Place
- Protects the expensive half of the setup — a grapple or a breaker can be worth more than the day rate on the loader carrying it, and it is the part that can be walked away with on a pickup.
- Closes the gap a machine lock leaves — immobilising the drive controls does nothing to stop someone releasing the coupler and lifting the attachment onto their own machine.
- Ends informal attachment swapping — on a multi-trade site, attachments migrate; a locked coupler makes that a conversation rather than a habit.
- One key code for machine and attachment — ordering Keyed Alike alongside a Skid Steer Lock means the operator carries one key for both.
📊 Attachment Lock Specifications
| Specification | Value |
|---|---|
| Dimensions, standard style | 19.38 to 24 x 7 x 1.63 in |
| Dimensions, short style | 15.13 x 7 x 1.63 in |
| Material | Hardened steel |
| Finish | Powder coat |
| Lock type | Barrel-style key cylinder |
| Keys supplied | Two per lock |
| Part numbers | ALL standard style, ALS short style |
| Warranty | One year against manufacturer defects |
| Origin | Made in USA |
🔄 Short Style or Standard Style Attachment Lock?
The style is set by the machine brand, not by the attachment. Order the one that matches the machine the attachment is mounted on.
| Style | Part | Length | Machines it is for |
|---|---|---|---|

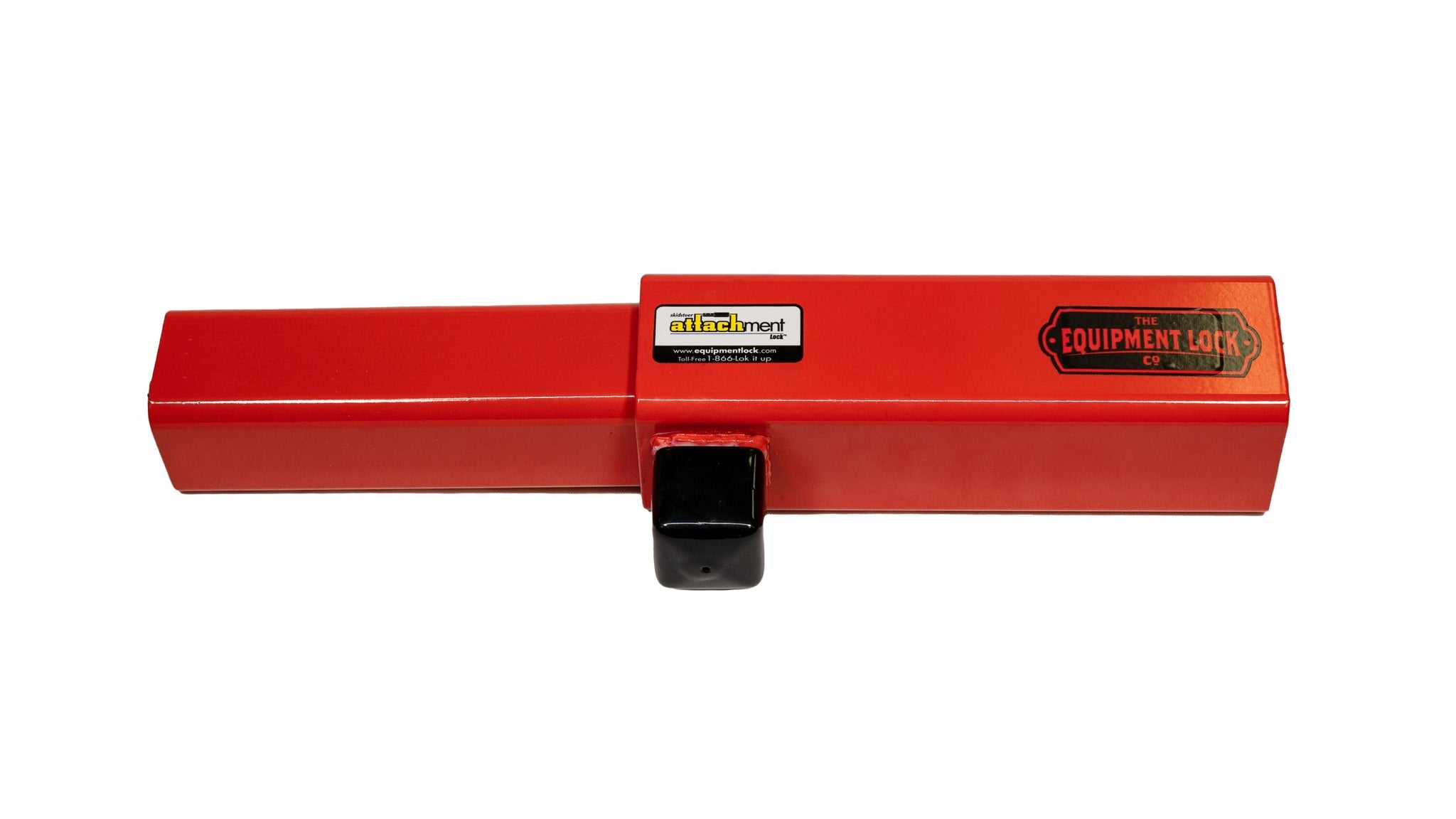

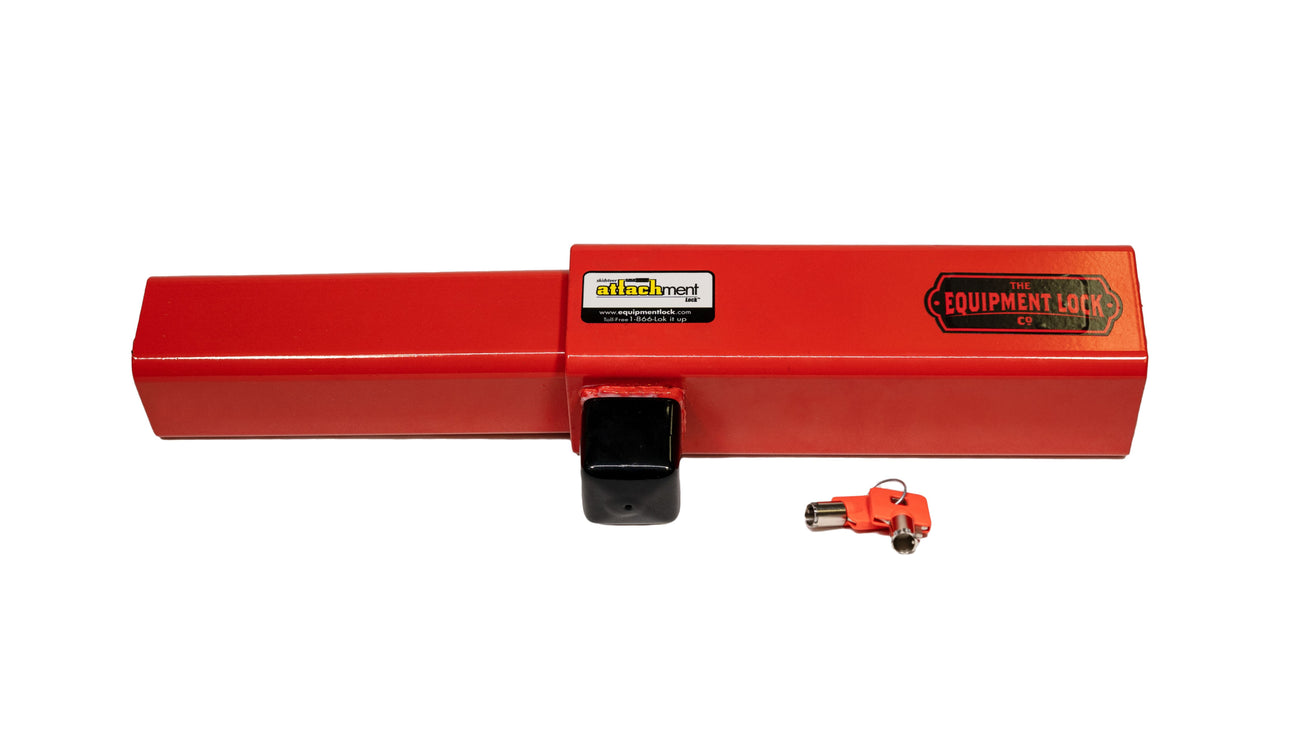

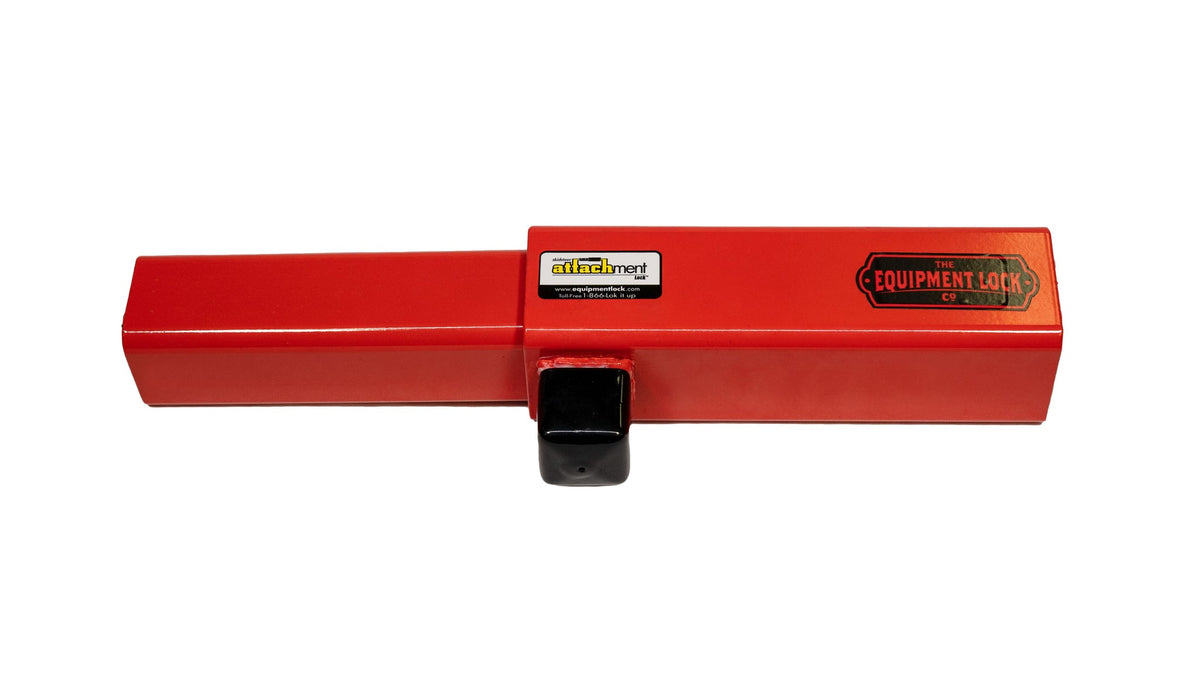

| Short | ALS | 15.13 in | John Deere and New Holland |

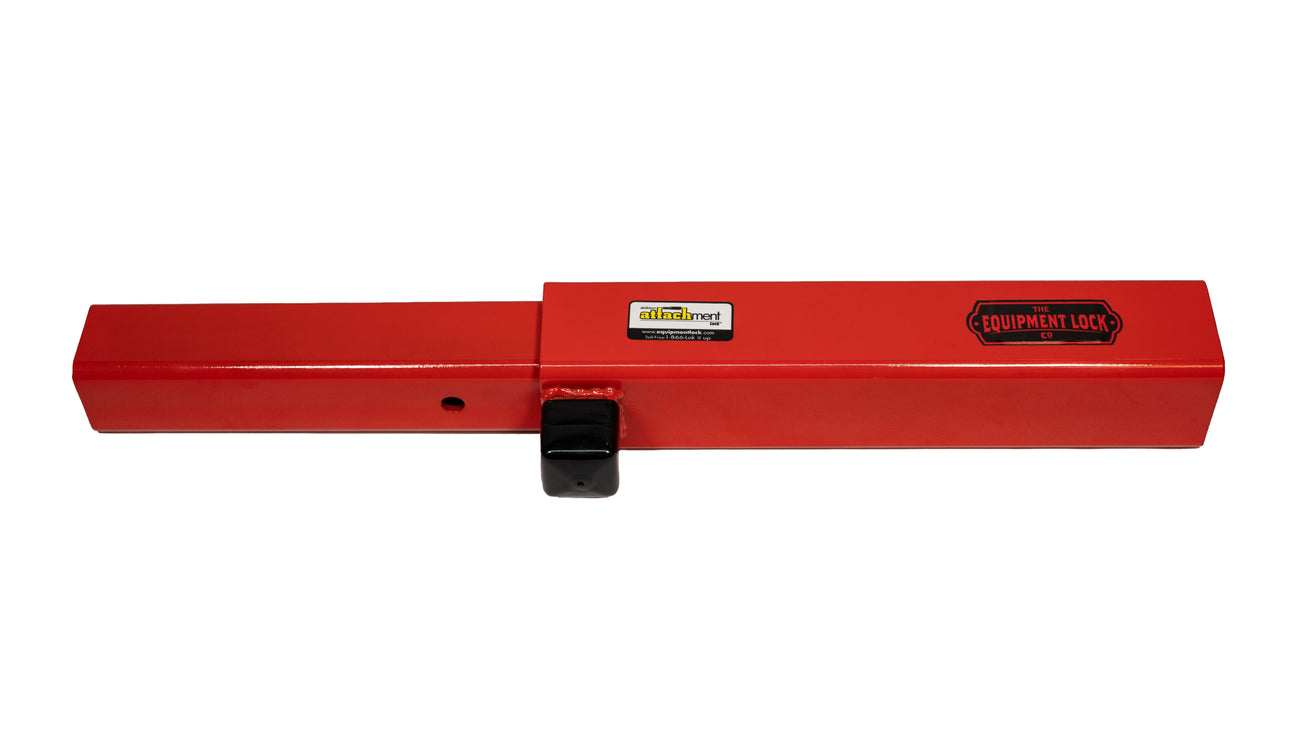

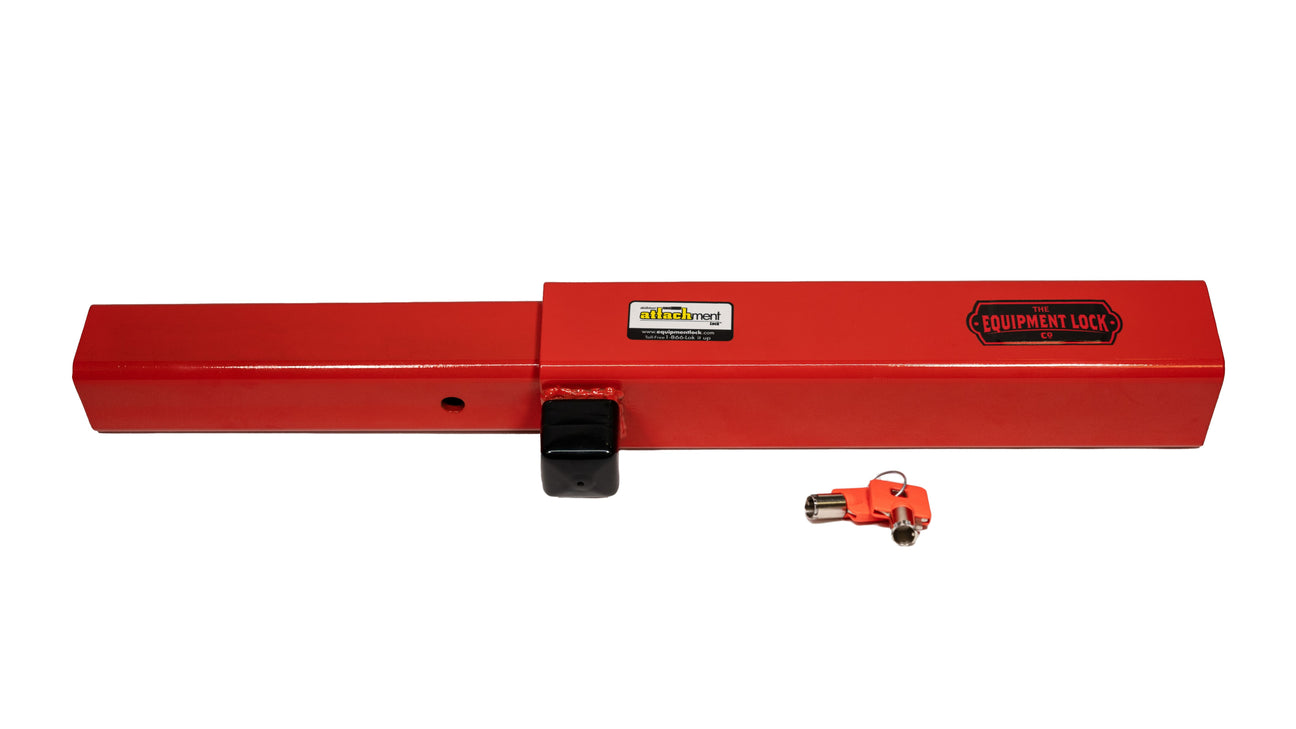

| Standard (long) | ALL | 19.38 to 24 in adjustable | All other manufacturers |
📋 Attachment Lock Options
Two axes are selected on this page: the attachment brand style above, and the keying below.
| Keying option | When to choose it on the Attachment Lock |
|---|---|
| Keyed Differently | Each lock gets its own unique key and no key code is kept on file. Choose this when access needs to stay tightly controlled. |
| Keyed Alike | Your key code is kept on file so every future Equipment Lock you buy opens with the same key. If you already have a code on file, select Keyed Alike and enter your assigned key code at checkout. |
Two keys ship with every Attachment Lock at no charge. Additional keys can be added on the product page in packs of 2, 5 or 10 if more people on the crew need access.
🔗 What the Attachment Lock Secures
The Attachment Lock secures the attachment to the machine by holding the coupler arms down. It is not a lock on the attachment itself and it does not immobilise the machine.
For the machine, the Skid Steer Lock or E-Series Skid Steer Lock immobilises the drive controls. Run both on one key code and a single key covers the loader and what is hanging off the front of it.
🚜 Which Machines Take Which Attachment Lock?
Fitment is decided by the coupler arm geometry, which follows the machine brand. There are exactly two options and the manufacturer splits them by brand.
| Machine brand | Style to order |
|---|---|
| John Deere | Short style (ALS) — 15.13 in |
| New Holland | Short style (ALS) — 15.13 in |
| All other manufacturers | Standard long style (ALL) — 19.38 to 24 in adjustable |
Order by the brand of the machine the attachment is mounted to, not by the brand of the attachment. If your loader is a John Deere or a New Holland, it is the short style; everything else takes the standard style.
Everything needed to confirm fitment is on this page — add it to your cart to see delivered pricing for your address.
Inspect the shipment before you sign. If the carton or crate arrives damaged, note it on the bill of lading at the time of delivery — that note is what supports a carrier claim, and it cannot be added afterwards.
❓ Attachment Lock Questions, Answered
Do I need the short or the standard Attachment Lock?
John Deere and New Holland machines require the short style, part ALS, at 15.13 in. Every other manufacturer takes the standard long style, part ALL, which adjusts from 19.38 to 24 in. The choice follows the machine brand, not the attachment.
How does the Attachment Lock keep the attachment on the machine?
The Attachment Lock locks the coupler arms in the down position. With the arms held down the coupler cannot release, so the attachment stays on the machine.
Does the Attachment Lock stop the machine being driven?
No. The Attachment Lock secures the attachment only. To immobilise the loader itself, the Skid Steer Lock or the E-Series Skid Steer Lock is the product for that, and both can be ordered on the same key code.
Can I use one key for the Attachment Lock and my other Equipment Lock hardware?
Yes. Select Keyed Alike and enter your existing five-digit key code at checkout and the Attachment Lock will be cut to match the locks you already own.
How do I choose between Keyed Alike and Keyed Differently on the Attachment Lock?
Keyed Alike keeps your five-digit key code on file, so every Equipment Lock you buy afterwards can be cut to the same key — one key for the whole yard. Keyed Differently keeps no code on file and each lock is unique, which is the tighter choice when you want access limited to one machine. If you already have a code, select Keyed Alike and enter it at checkout.
What does the Attachment Lock warranty cover?
Equipment Lock covers manufacturer defects for one year from purchase. Damage from a theft attempt, user error or modification falls outside that cover. Email support@eskidsteer.com with your order number to start a claim.
How is shipping calculated on the Attachment Lock?
Shipping is calculated at checkout. Add the Attachment Lock to your cart, enter your delivery address, and the shipping charge is shown before you complete the order.
