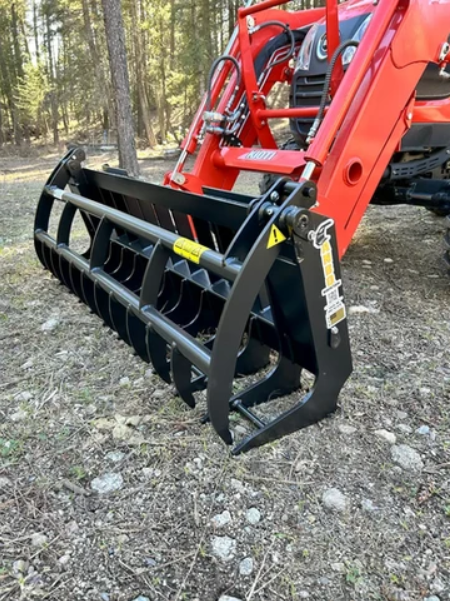

ANBO UTSC-5 Utility Sub-Compact - 5" Tines

📘 Overview

The ANBO UTSC Grapple Rake is built for skid steer/compact tractors up to 30 HP in 38"-76" widths with 5" tine spacing options. Clamshell design delivers raking, digging, and grabbing in one attachment — remove rocks, collect brush and logs, transport firewood, pull roots and debris, clear land, and more. American AR400F steel (5x stronger than grade 36). All greaseable pivot points. Hoses routed securely. 2-year attachment warranty, 3-year cylinder warranty.

⚙️ Key Features

• For skid steer/compact tractors up to 30 HP
• Widths: 38"-76"
• Tine spacing: 5" options
• Cylinders: 2"×6" | est. ~36"" opening
• Tine steel: est. 1/4"-3/8" AR400F
• Long flat tines for surface cleanup | Rear-facing tines enable back-raking | Crossbar prevents bending
• Clamshell design — rake, dig, and grab in one attachment
• All pivot points greaseable | Hoses routed securely
• AR400F — 5x stronger than grade 36 steel
• Made in USA (Colville, WA) | 2-yr warranty | 3-yr cylinder warranty

🔑 Benefits

• AR400F steel is 5x stronger than grade 36 yet lighter — your machine keeps its rated lift capacity while the grapple handles greater abuse — competing grapples in mild steel compensate with added thickness and weight, directly reducing effective lift capacity. ANBO's AR400F delivers the strength without the weight penalty.
• Clamshell design enables back-raking and load securing — the top grapple bar closes over raked material for transport, eliminating attachment changes between raking and carrying passes
• Greaseable pivot points — lubricate at service intervals; no welded pivots that fail from inaccessibility
• 3-year cylinder warranty covers the highest-wear component — longer than most competitors warrant the entire attachment

📊 Specifications

SKU Format Guide

SKU = UTSC-[tine spacing]-[width in inches]. Example: UTSC-6-80 = UTSC, 6" tine spacing, 80" width.

🔗 Attachment Compatibility

Designed for land clearing, rock removal, brush and log handling, root pulling, storm debris management, and firewood operations on skid steer/compact tractors up to 30 HP. Contact eSkidSteer at 866-757-8337 for any questions.

🚜 Machine Compatibility

Compatible with skid steer loaders and compact track loaders equipped with a Universal Skid Steer Quick Attach system. For skid steers and compact tractors up to 30 HP. Mount options for most makes.

Compatibility is determined by mount type — confirm your machine's quick attach configuration before ordering. Contact eSkidSteer at 866-757-8337 for any questions.
